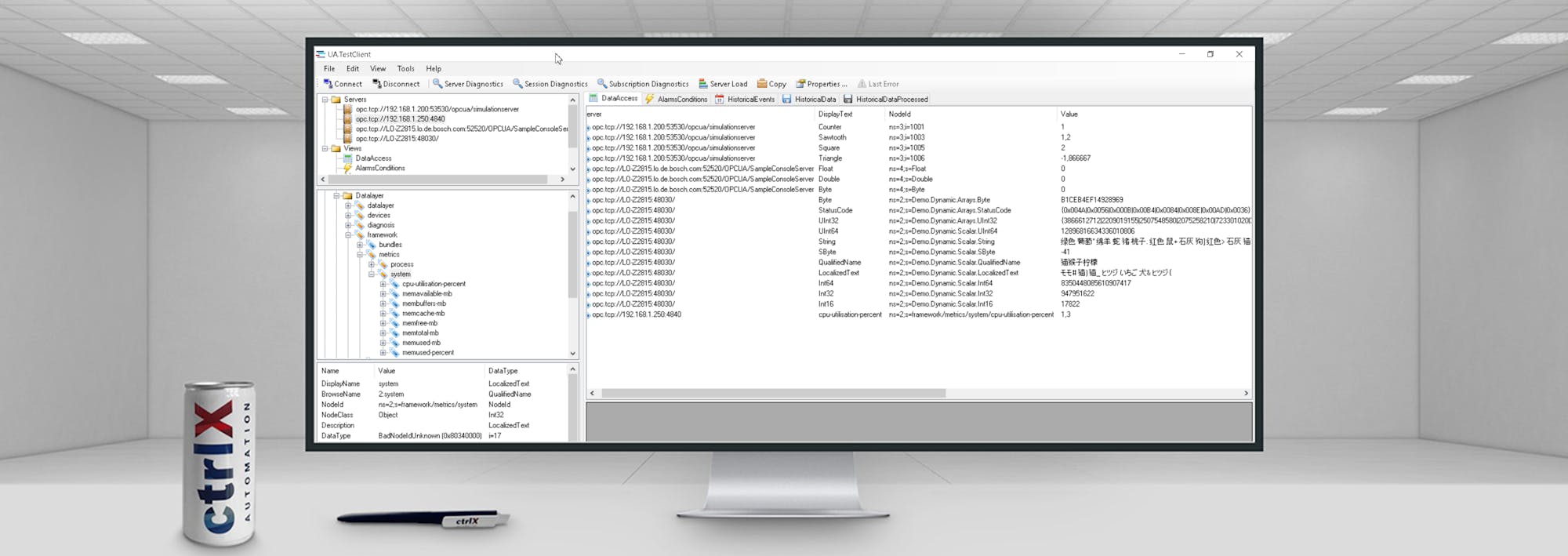

The UA.TestClient is an easy to use client to test any UA Server. The client is optimized for Bosch Rexroth UA Server's, especially for the built-in ctrlX CORE UA Server.

UA.TestClient is a test tool, if you want to focus on practical usage instead of being an UA Expert.

Please see here how easy it is to connect the UA.TestClient to the ctrlX CORE UA Server.

Features

General

The UA.TestClient provides a set of features and creatable views to cover mostly used test scenarios:

• Connect to any UA Server using state-of-the-art security profiles

• Browse the address space

• Certificate / Authorisation management

• Server/Session/Subscription Diagnostics

• Server Load Diagnostics

• Save/Load Sessions



Data Access View

This view covers Data Access (DA):

• Read/Write/Subscribe Nodes

• Call Methods

• Add Nodes

• Find Nodes

• Find Data Type of a Node

• Copy Node / Browse Path to Clipboard

• Control of Subscription- and Monitoring-Options

Alarms Conditions View

This view covers Alarms & Conditions (AC):

• Subscribe for Events and Conditions (including custom Events)

• Disable / Enable

• Acknowledge or confirm Alarms

• Refresh Conditions

Historical Events View

This view covers Historical Events (HE):

• Read the history of UA Server events from a given start to end date

Historical  Data View

This view covers Historical Data (HDA):

• Read the history of stored data of a node (if node has property HistoryRead)

Historical  Data Processed View

This view covers processed Historical Data (HDA):

• Read the processed or aggregated history of stored data of a node (if node has property HistoryRead), like mean, max, min, ...

Be aware of new upcoming features, soon.
Have fun using UA.TestClient!

Version 2.8.0

PREREQUISITES

• .NET Desktop Runtime 8.0

HIGHLIGHTS

• .NET 8.0

• UA SDK 4.1.0

• Rich support for binary encoded ExtensionsObjects (Structures, Unions, ...).

Release Notes

• Download and see README.html and CHANGELOG.html

Support

• Forum ctrlX CORE

Related Links

• How-to: Connect UA.TestClient to ctrlX UA Server

• Documentation ctrlX OPC UA Client App'



This is about how you can connect the Bosch Rexroth UA.TestClient to a ctrlX embedded UA Server.

Prerequisites

Install UA Server snap on your ctrlX if not already installed.
Download latest UA.TestClient here.

Create UA.TestClient Certificate

On first startup of the application you were asked to create a new application instance certificate for the UA.TestClient.
Ensure the Key Size Rsa2048 and Hash Algorithm Sha256 using extended options revealed by button <Advanced>.

Press <Create> to create the certificate pair.

Initial Connection

Start UA.TestClient and connect

Example URL's

Check permission UA Server access  of your current user. The default user boschrexroth should have admin rights.

Enter your ctrlX IP and credentials like shown below and press <Find>.

Choose one of your preferred endpoint by policy (recommended: SignAndEncrypt Basic256Sha256. Not supported yet: Aes256_Sha256_RsaPss)

Enter your username/password credentials and press <OK>.

Now you have to trust the server's certificate manually.

Press <Trust> and check <Save Certificate in TrustList>

You should get an <BadSecurityChecksFailed>  error from server, because the server is not trusting your certificate by default.

So we have to do same on server side.

Login into your ctrlX website, navigate to Settings → Certificates & Keys and press the <Check> Button on the right pane to trust your client certificate.

Have fun using the UA.TestClient !
