This documentation describes how to install and use ctrlX G-Code UI. G-Code UI was developed with Node-RED and PLC Engineering. It consists of a PLC project package and Node-RED template which can be customized.
G-Code UI functionality
G-Code UI supports the following features:
Editor to create / write / delete a NC program.
NC program selection.
Start, stop, reset, and pause the NC program kinematics, respectively.
Control path velocity by feed rate override.
Different coordinate systems like ACS and PCS.
Observe position and state of kinematics.
System diagnostics.
Installation and activation of G-Code UI

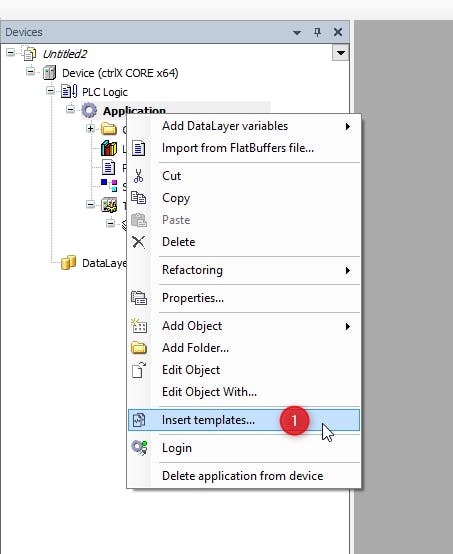

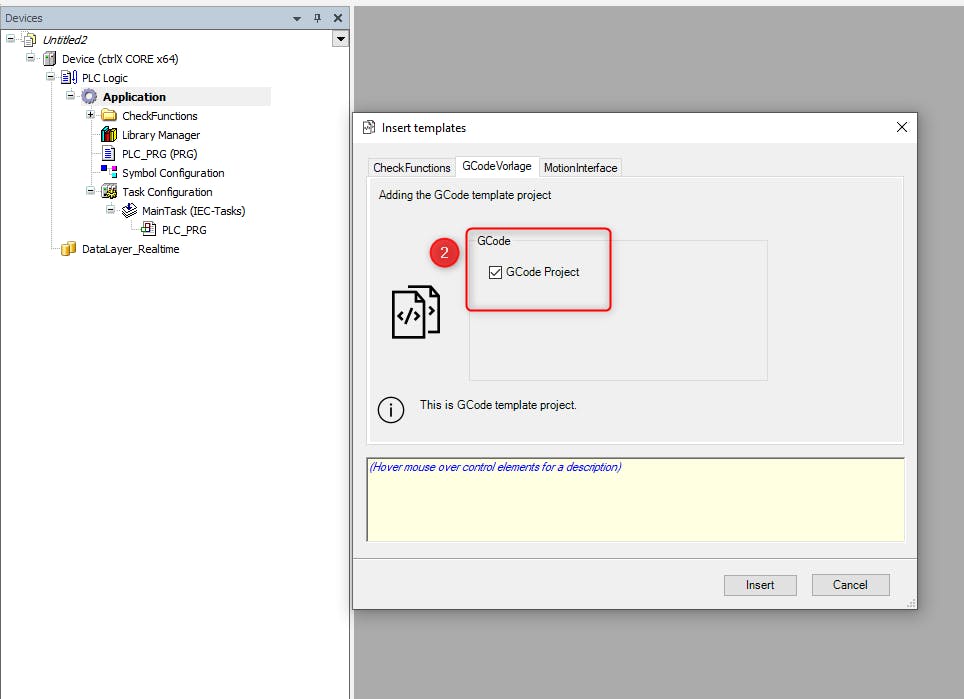

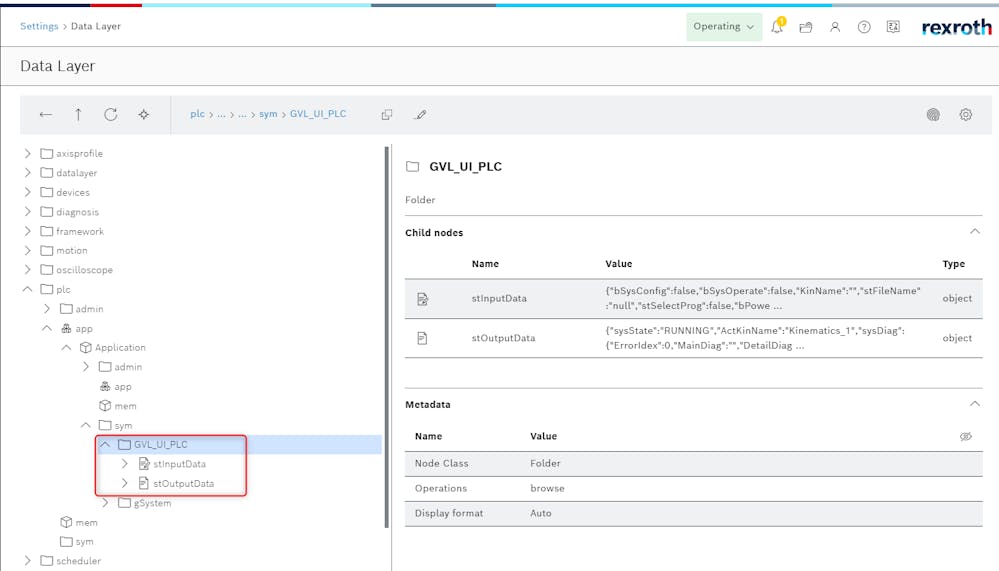

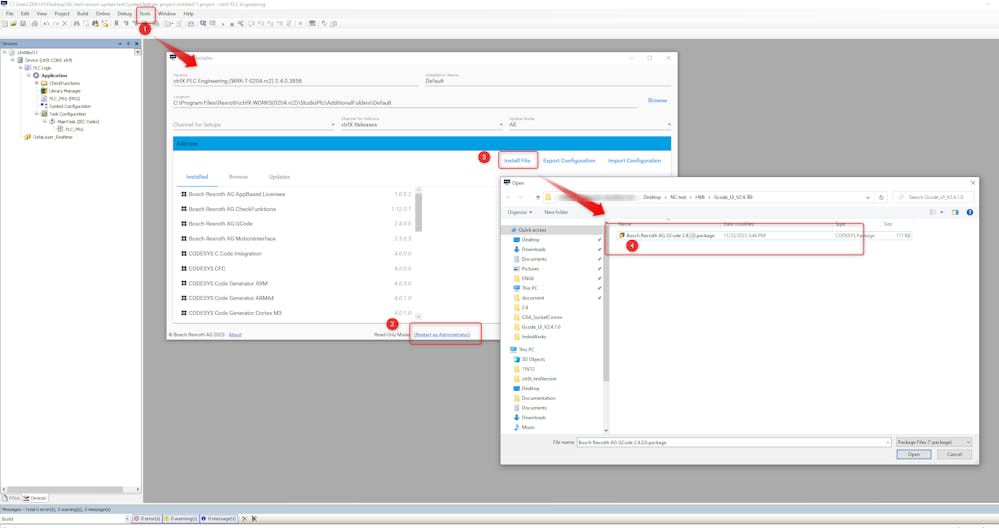

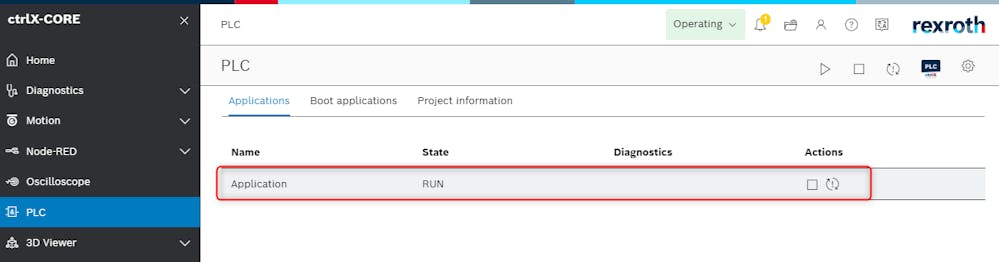

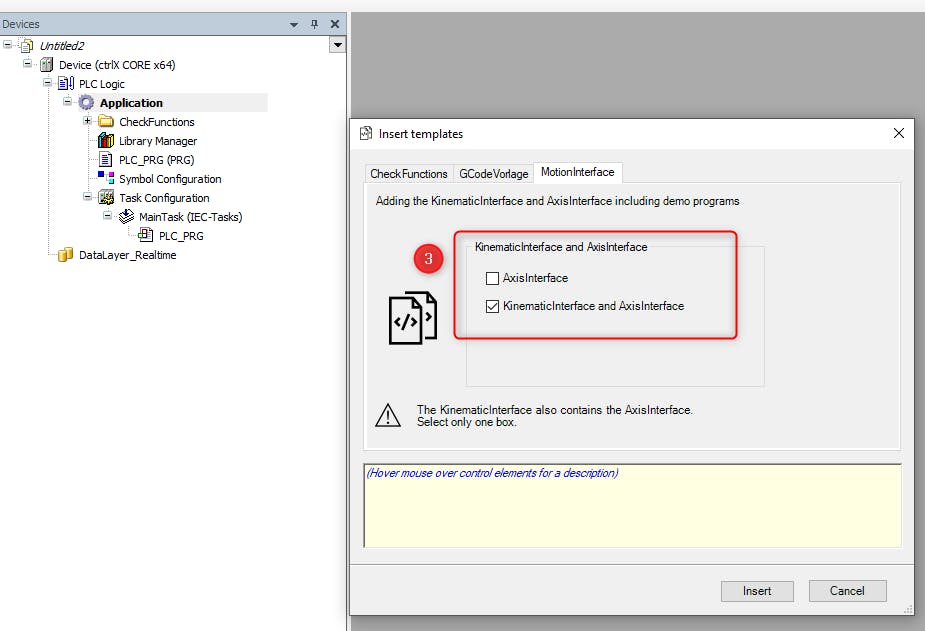

A licensed installation of following apps (V2.4.x or above) is expected before activating G-Code UI.
Node-RED part There are two methods to load and active Node-RED configuration:
Load GCode_UI_****.zip from the "Manage app data".
Or import GCode_UI_****. json in Node-RED flow editor.
Note:
Spoiler
GCode_UI_**** .zip : It doesn't only contain the configuration of Node-RED, but also the configuration of Motion, the existing motion configuration will be overwritten. Therefore, it is recommended to load and activate the Node-RED configuration through the second way. GCode_UI_****. json: It only contains the configuration of Node-RED, the user needs to add axes and create at least one kinematics before implementation.Method 1: Activate the configuration of Node-RED by loading the GCode_UI_****.zip file.

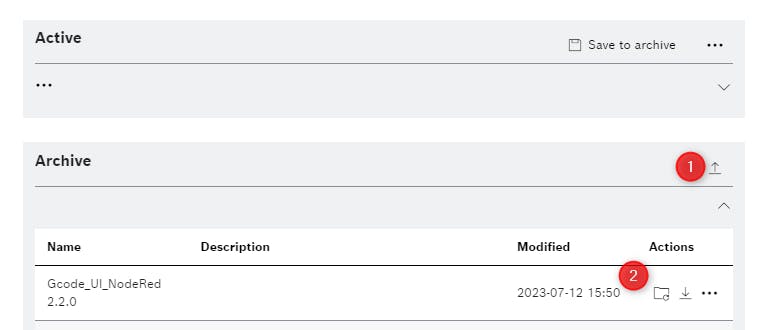

Switch ctrlX CORE state to "Setup" mode, uploads GCode_UI_****.zip file via"Home → Manage app data → Archive/Uploads Configuration".
Active the configuration and switch the ctrlX CORE state to "Operating" mode.
Activate the configuration of Node-RED by loading the GCode_UI_****.zip file
Method 2: Activate the configuration of Node-RED by import the GCode_UI_****. json file.

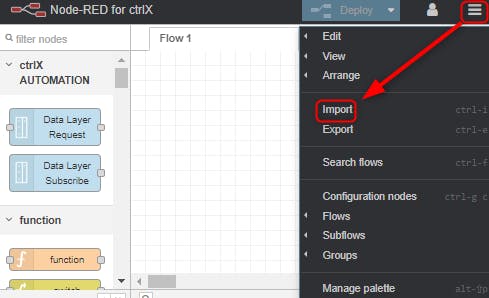

Open Flow Editor of Node-RED App, then import the Node-RED configuration flows.
Activate the configuration of Node-RED by import the GCode_UI_****. jsonxfile
Note:
SpoilerThe Node-RED configuration has been uploaded, but there are two ctrlX Automation nodes that need to be logged in before flows are deployed. One is the “Data Layer Request” node and another one is “Data Layer Subscribe" node.
xData Layer Requestxx node
xData Layer Subscribe" node How to log in“Data Layer Request” node:
Double-click any “Data Layer Request” node to open the configuration window.

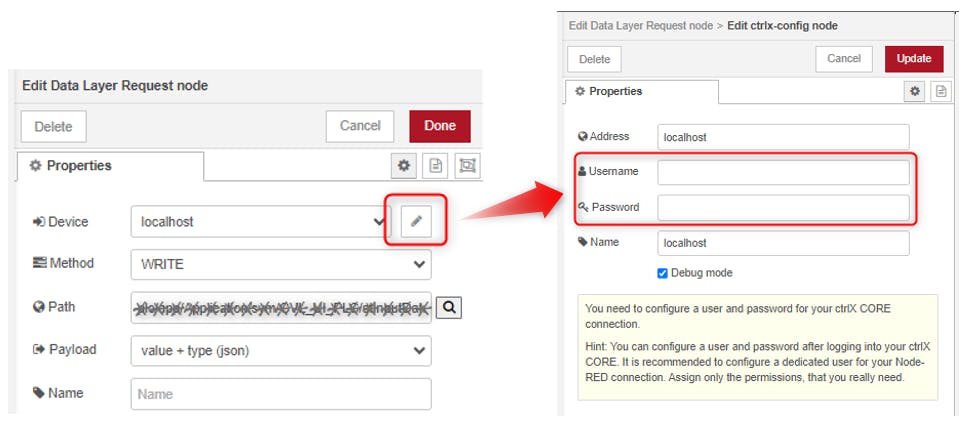

Enter the user name and password to log in, as shown in the figure below.
Deploy the flows.
Same for the "Data Layer Subscription" node.
How to log in Data Layer request node
Description of G-Code UI
The page HMI-Operating includes five areas: kinematics select, program, machine status, operation and diagnosis.

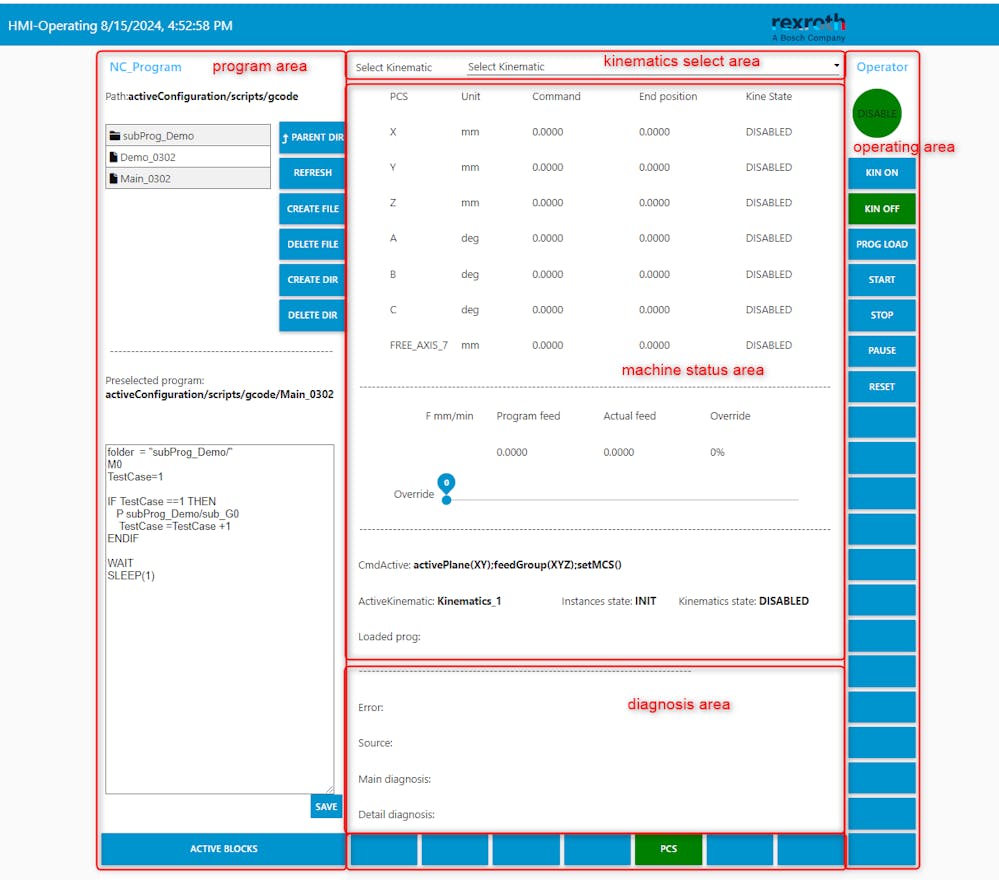

HMI-Operating of G-Code UI
kinematics select area:

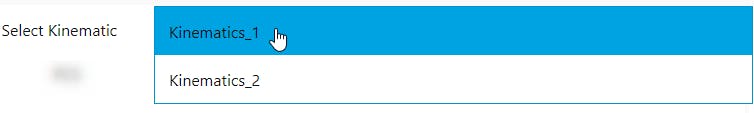

Before using this UI, at least one kinematics should be created, then the created kinematics can be read and selected.
kinematics select

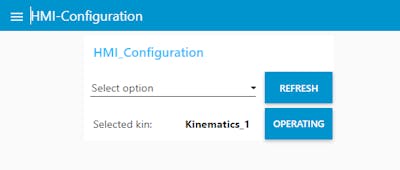

For 2.6.0 and below, before active operating mode, need refresh and select the kinematics in the configuration mode page, show as below picture.
HMI-Configuration of G-Code UI (2.6.0 and below)
Programming area:
There are two pages in the program area. The default page "NC_Program" displays the operable fields for of the program, which are described in the table 1. The "Active_NC_Blocks" page displays the activated NC block. The page is switched from "NC_Program" to "Active_NC_Blocks" automatically when the NC program is running.
Table 1: optional operations of program area of HMI-Operating
Name
Description
1
Path
Show the file path of program.
2
PARENT DIR
Return to the parent directory.
3
REFRESH
Refresh the program list.
4
CREATE FILE
Create program. For 2.6.0 and below, need input the file name of new program via "Filename to be created", and then click "CREATE" to complete the creation of the program.
5
DELETE FILE
Delete program.
6
CREATE DIR
Create customer directors in path "Manage app data/Active/scripts".
7
ACTIVE BLOCKS
Switch page to "Active_NC_Blocks" manually via "ACTIVE BLOCKS". Only when NC program is running, the "ACTIVE_NC_ BLOCKS" page can display the executing NC blocks. Switch from "Active_NC_Blocks" page to "NC_Program" page via "PROGRAM" button.
8
SAVE
Save the NC program.
Machine status area:
Display axis status, position, and velocity information. Maximal seven axes status can be displayed.
Slider of override to modify the percentage of command value F.
Observe the active command options.
Show kinematics activated name and state.
Displays pre-selected and loaded programs.
Operating area:
This area provides operation buttons to control the system.
Table 2: optional operations of operating area of HMI-Operating
Name
Description
1
KIN ON
Axes power on and group enable.
2
KIN OFF
Axes power off and group disable.
3
PROG LOAD
Load the pre-selected program, switch UI state from "DISABLED" to "READY".
4
START
Start NC program, switch UI state from "READY" to "RUNNING".
Continue running NC program which has been interrupted by pause. UI state switch from "PAUSE" to "RUNNING".
Reset M0 and continue running NC program.
5
STOP
Stop NC program, switch UI state from "RUNNING" /"PAUSE" to "READY".
6
PAUSE
Pause NC program, switch UI state from "RUNNING" to "PAUSE".
7
RESET
Reset errors, switch UI state from "ERROR" to "DISABLED".
8
PCS
Showkinematics position in product coordinate system.
Diagnosis display:
When an error occurs, the user can get the following information from the UI:
Main diagnosis: Main number of the diagnostic information.
Detail diagnosis: Detailed number of the diagnostic information.
Error Information: Description of error.
Error source: Traced source of the error

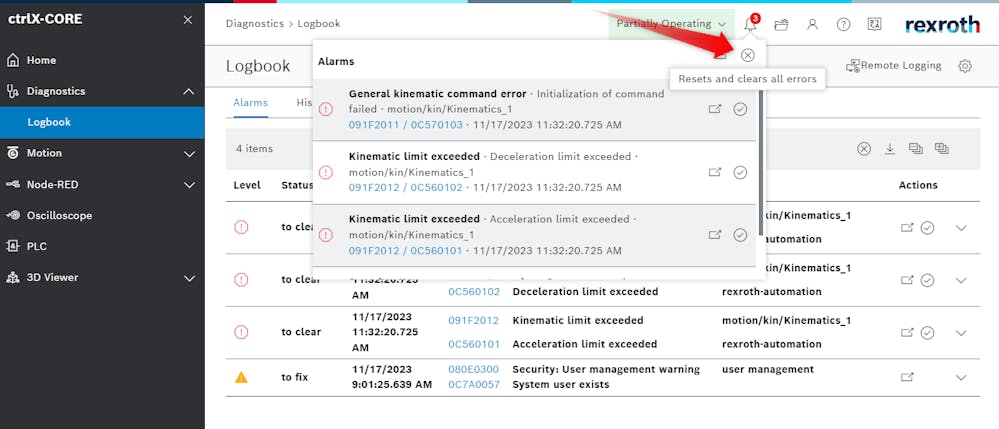

The diagnosis includes motion error, G-Code error, PLC error and error from others. If the error cannot reset from UI, users can clear pending alarm as below picture.
Clearxpending alarms

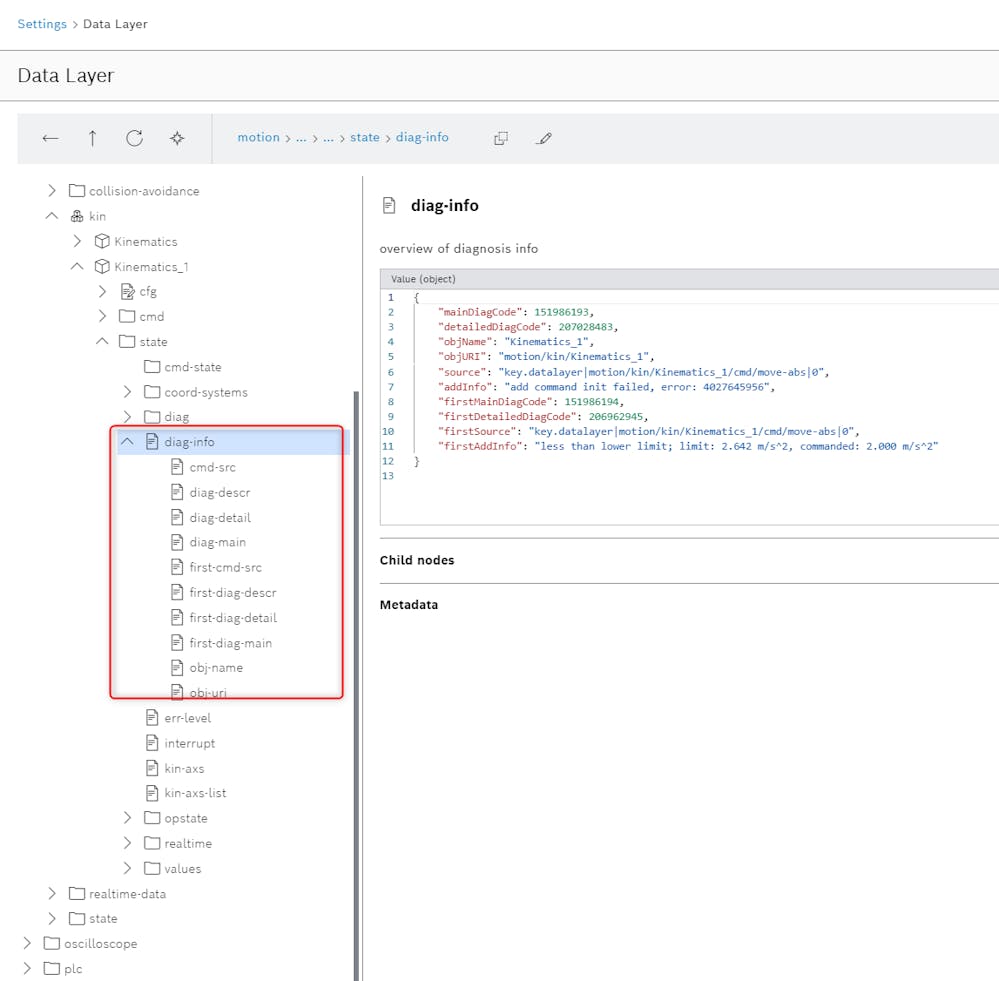

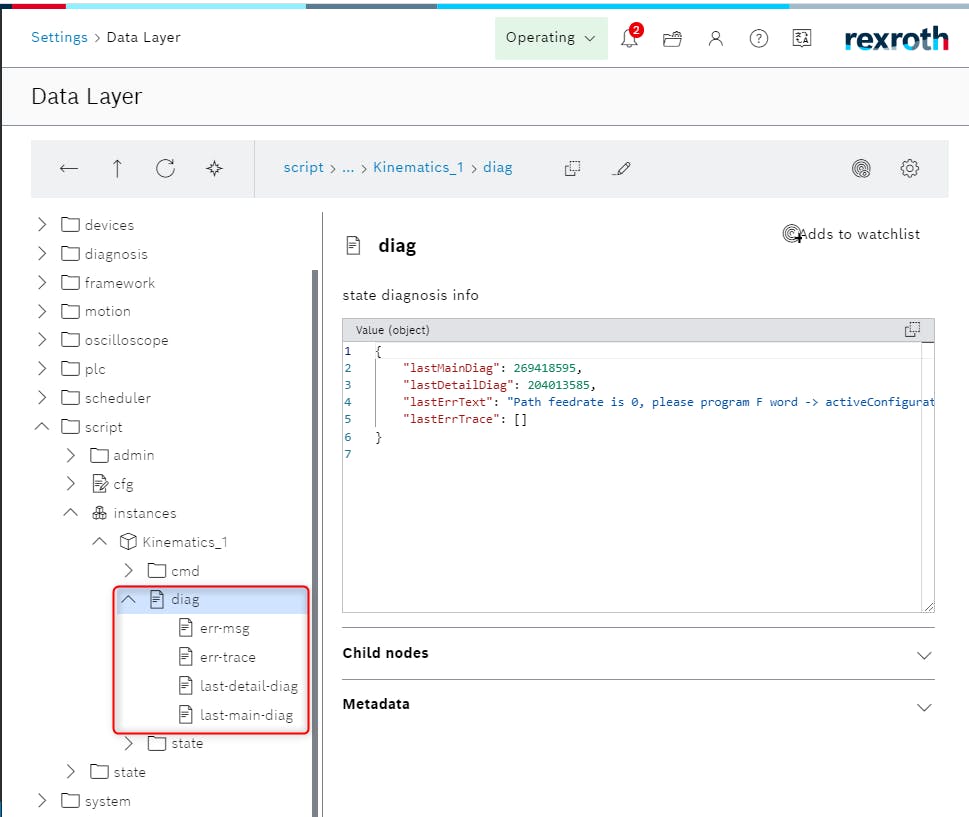

All errors also can be traced in Diagnostics/Logbook, and in addition, the errors from G-Code and motion can also be traced in data layer node.
