How to set up the IO module with ctrlX CORE X5

Hello Community

I'm trying the test that the I/O module has been installed on the ctrlX CORE X5.

However, it got some error.

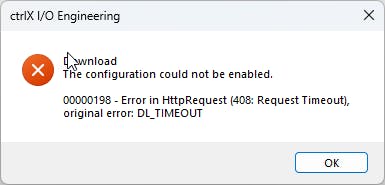

1. The download from ctrl I/O Engineering to ctrlX CORE could not be completed.

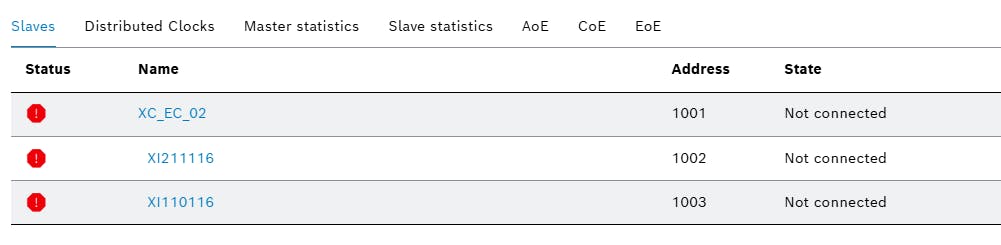

2. EtherCAT could not be connected to each I/O device.

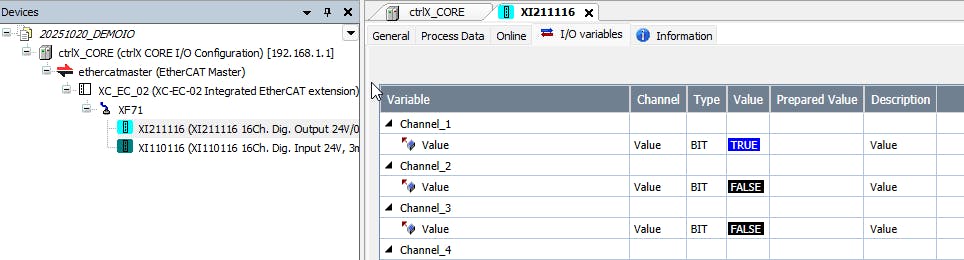

3. However, the output signal successfully turned ON.

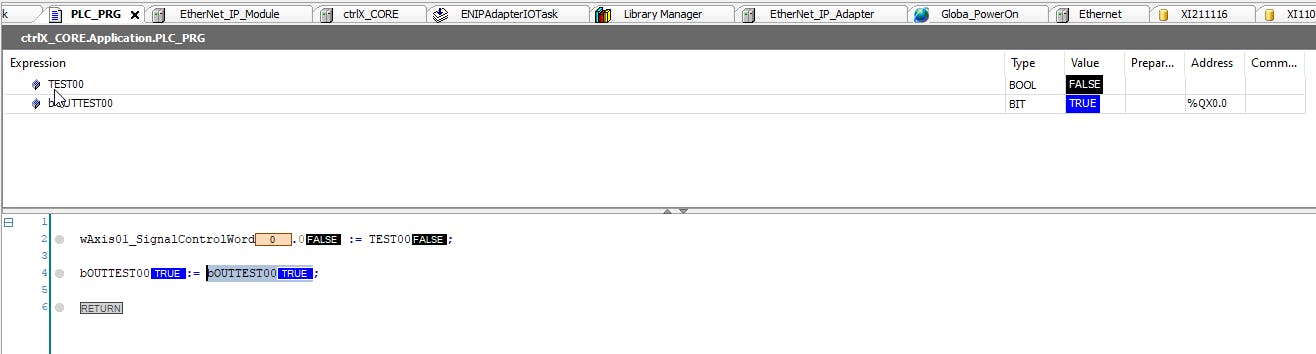

   PLC side

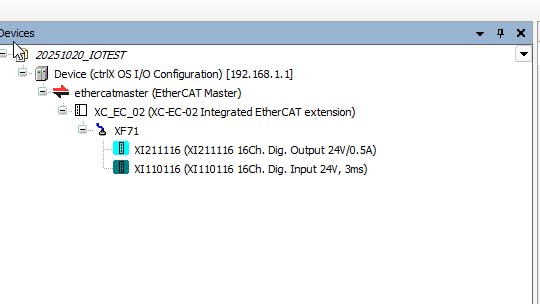

ctrlI/O

I would like to fix the EtherCAT connection issue with the I/O devices and the download error.

Best regards

Kiriki
