CtrlX X3 Core 2 stock at 100% Load

Hi.

I am using The PLC-App Version 1.20.4 with System image X3_01.20.9

For reasons i cant explain core 2 is always on 100% load which causes the core to switch to service mode without possibility of restarting.



Only Factory reset or Backup bring core back up and running.



Any Suggestions on where to look?

Thanks a lot





Best reply by CodeShepherd

PLC Tasks in standard are running on core 2 but with an multi core license available you can shift it to any core you like:

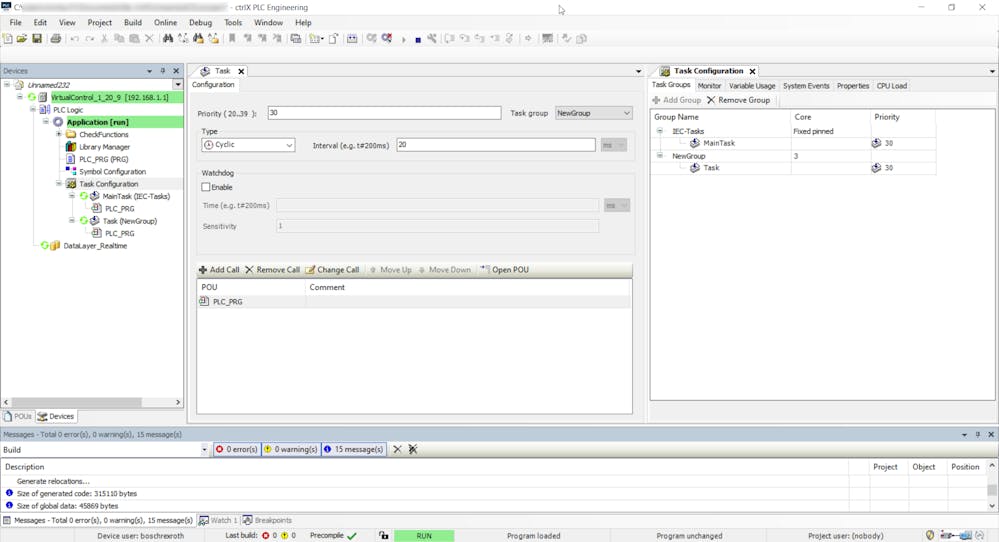

ctrlX PLC Engineering - multi core task settings

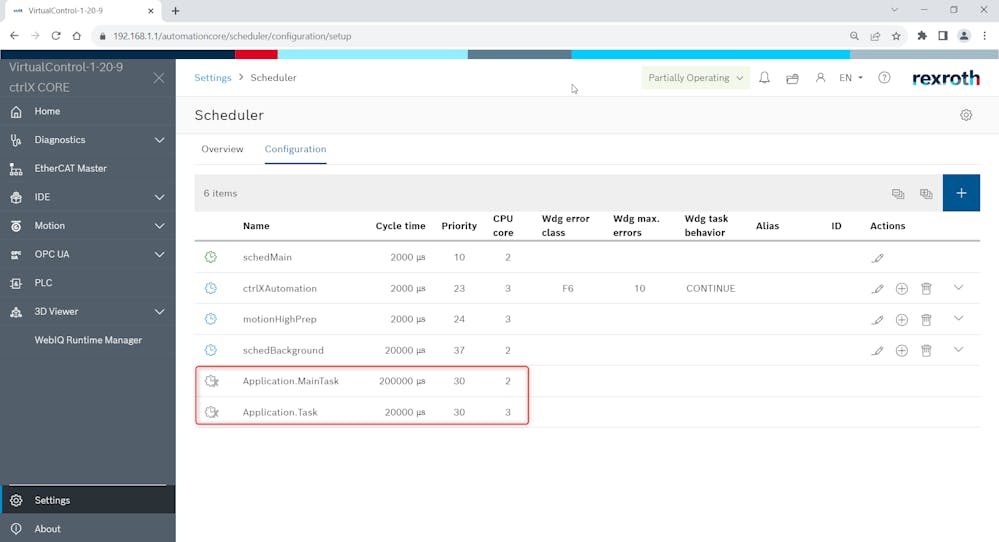

ctrlX CORE WebUI - scheduler settings with PLC multi core

But I agree to Sgilk you should check out what creates the load to your data layer and also check which load is created by your PLC tasks.
