This how-to describes the integration of a SMC EtherCAT JXCE controller into the ctrlX OS environment. It shows how to set up the communication.
Requirements
Hardware
- ctrlX CORE
- SMC EtherCAT JXCE controller (e.g. JXCE1)
Software
- Bosch Rexroth PLC app on ctrlX CORE
- Bosch Rexroth EtherCAT Master app on ctrlX CORE
- ctrlX I/O Engineering and PLC Engineering (ctrlX WORKS)
Step-by-Step guide
Step 1: Start a new EtherCAT Master project

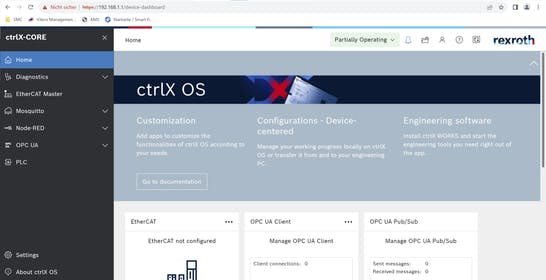

- Open ctrlX CORE user interface in your browser.

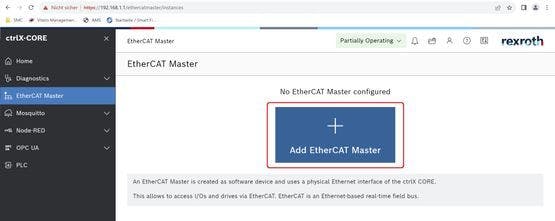

- Add EtherCat master by clicking “+” in EtherCAT configuration.

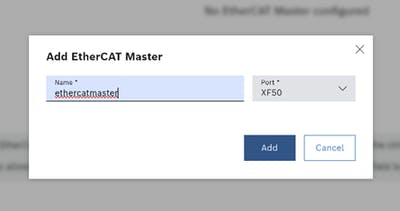

- Add EtherCAT Master and give it a name.
- Open ctrlX I/O Engineering by clicking on the Name of the Master system.

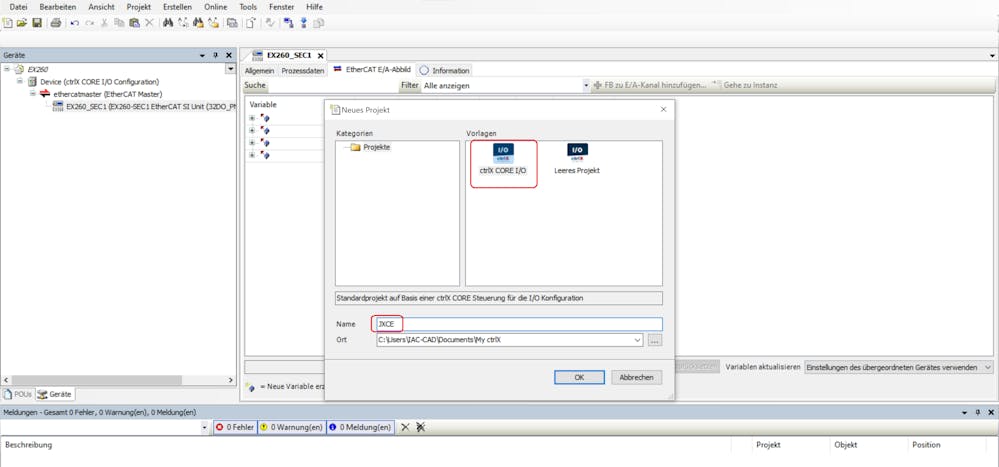

- Open new „crtlX CORE I/O“ project and give it a name.
Step 2: Install the JXCE device description

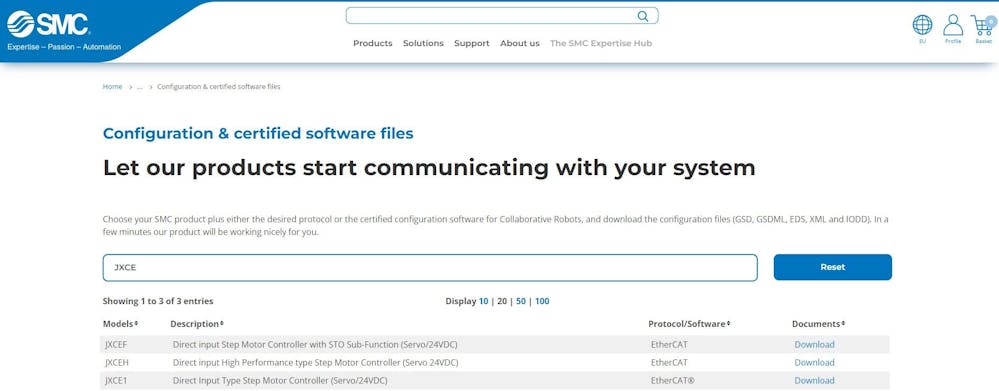

- Download the EtherCat device description file from the SMC website.

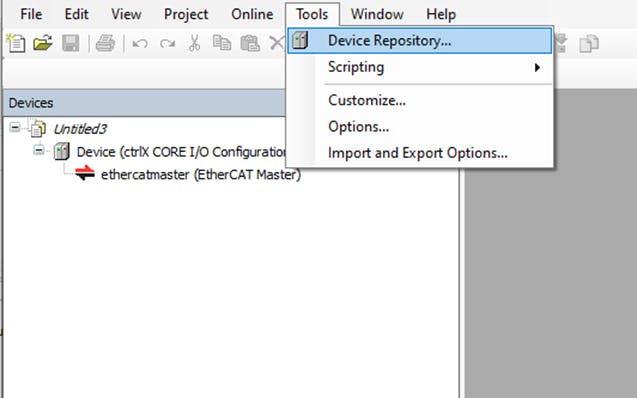

- Install the device description in the “Device Repository” chapter in the software.
Step 3: JXCE device configuration in the project
- Add device to EtherCat Master by right-click in the device tree on ethercatmaster.

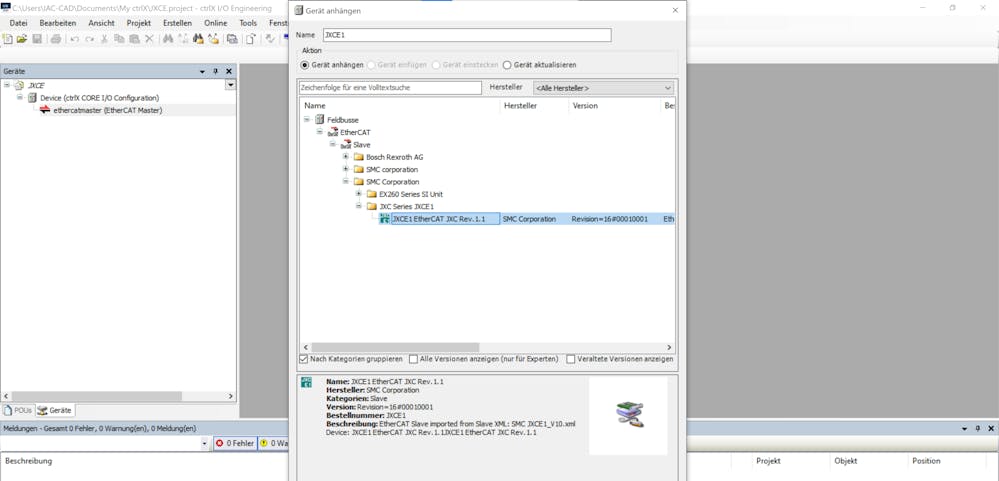

- Choose the relevant device description for your device from device catalog and add it.

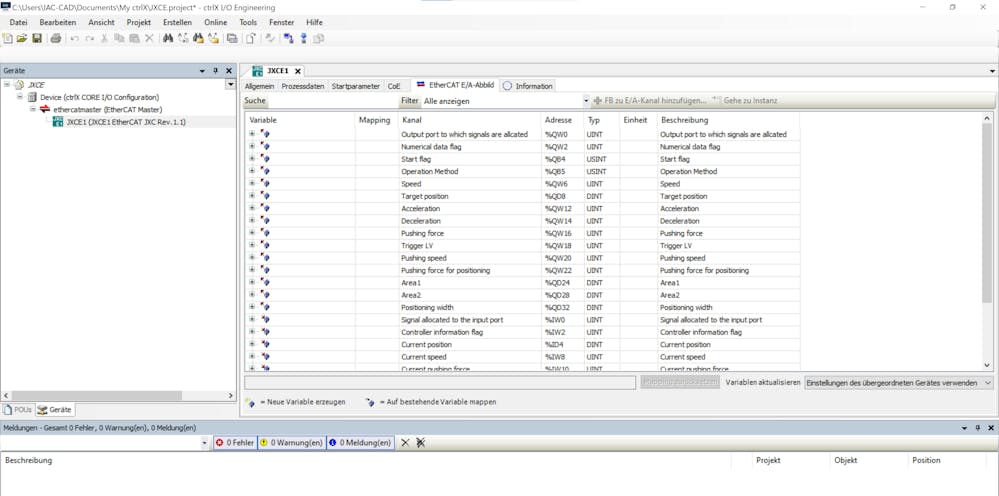

- The JXCE controller is now installed and available.
