How to subscribe to nodes of the ctrlX Data Layer using REST API via JS

History

24 Sept 2026 Initial release

Content

This article describes how to subscribe to ctrlX Data Layer nodes in an HTML document or in HMI systems (HELIO, WebIQ) with JavaScript support. General descriptions and further information can be found in our online documentation.

Requirements

• ctrlX OS device, ctrlX CORE or ctrlX COREvirtual

• HTML and JavaScript know how

For an easy startup, download subscription-demo.zip (see chapter Downloads) it contains:

• subscription-demo.htm - A simple HTML page that subscribes to two data layer items

• cxApi.js – Contains two JS classes

  • cxApi - Manages authentication

  • cxSubscription - Manages the subscription

Quick Startup in 3 Minutes

1. Add a new data layer item.
   Search for text #1# and uncomment the text shown below.

   Copy

   <!-- #1# -->
   <tr><td>Available Memory [MB] :</td><td id="Mem_free">-------</td></tr>

2. Register the Node Path in the Map
   Search for text #2# and uncomment the text shown below.
   Currently, two arguments are stored in nodeToRef:
   * ref: reference to the HTML output element
   * digits: number of digits to display
   To implement unit conversion, for example, you can add a suitable parameter here, which then needs to be interpreted in function setValues(). Search for #3#

   Copy

   <!-- #2# -->
   nodeToRef.set("framework/metrics/system/memavailable-mb", { ref: document.getElementById("Mem_free"), digits: 2 });

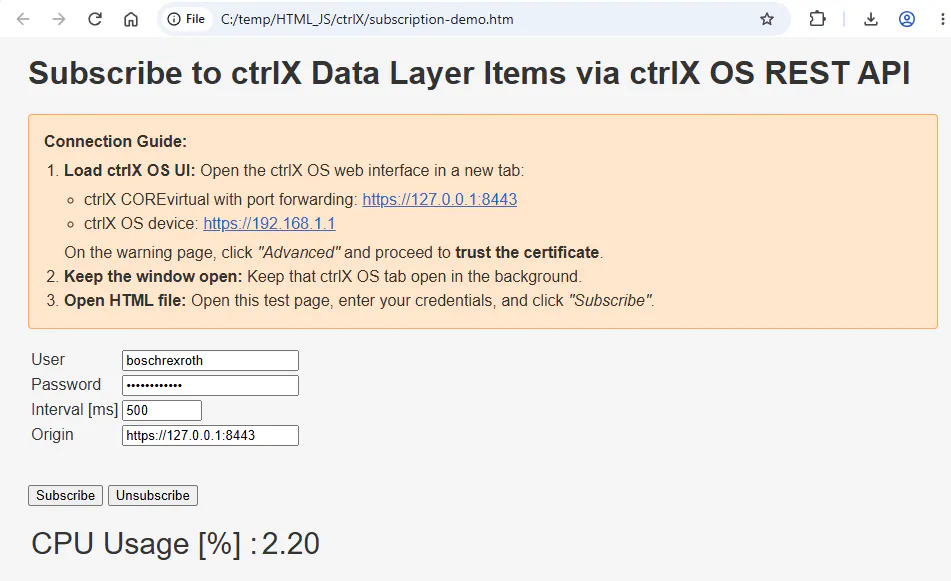

3. Open HTML file and follow the displayed instructions



Public API Reference of JS classes

Detailed parameters and type structures are declared in JSDoc within the source code. Here is the big picture:

cxApi (Session & REST Manager)

• startSession(...): Establishes session, validates and automatically manages token caching in browser sessionStorage.

• ping(...): Fast, lightweight availability check.

  Dev Tip: Essential to quickly verify if your connection is blocked by CORS/SSL, or if your ctrlX COREvirtual shut down its services (which happens automatically after 4 hours).

• myFetch(...): Robust fetch helper. Intercepts HTTP 401 (Unauthorized) errors, silently re-authenticates via startSession, and automatically retries the original request once.

• stopSession(): Destroys active session on the controller and wipes browser session storage.

cxSubscription (Event Client)

• start(...): Subscribes to the data layer paths and processes the SSE stream.

• stop(): Safely closes the active stream and releases reader locks.

Integrate Subscription in web based visualization

If the subscriptions are used in a web based visualization, different security restrictions apply compared to our test environment. This applies both to the use of iframes and to usage within JavaScript.

The IFrame Security Hurdles

Embedding your local HMI in an <iframe> forces the browser to apply strict boundaries:

• Cross-Origin Mismatch (CORS): If the parent portal (e.g., https://my-hmi-portal.local) and your embedded HMI (e.g., file:///index.html) run on different origins, the browser blocks direct background communication to the ctrlX OS REST API.

• Sandbox Restrictions: Many frame containers use the <iframe sandbox="..."> attribute. If crucial sandbox bypass flags such as allow-scripts or allow-same-origin are missing, Javascript runtime execution and storage access (sessionStorage) are completely disabled.

Direct Controller Hosting

The most robust solution is hosting your HMI files directly on the ctrlX OS internal Web Server.
See article: HowTo view content from multiple web servers in one web page (reverse proxy)

• Why it works: The HMI runs on the exact same origin as the API.

• The Benefit: Direct "Same-Origin" scenario. CORS blocks are bypassed, SSL credentials are automatically trusted because you are already logged in to the control portal, and the IFrame has native access to the browsers sessionStorage with zero security exceptions required

• WebIQ and HELIO use the ctrlX OS reverse proxy.

• CoDeSys WebVisu does not yet use the reverse proxy, but it will soon.

Background information

SSE protocol used by ctrlX OS for subscriptions

• Server-Sent Events (SSE): A unidirectional, standard HTTP/HTTPS-based streaming protocol. ctrlX OS pushes values only on-change, eliminating continuous HTTP-polling overhead.

• Metadata Filtering: The raw network stream includes comment lines (such as :keep-alive sent to prevent browser timeouts) and double newline dividers (\n\n). Our backend client parses and discards them dynamically.

• Here an example of JSON Data Schema sent from ctrlX OS. Each valid update is sent on a data: line carrying a JSON string:

event: update
id: 2
data: {"node":"framework/metrics/system/cpu-utilisation-percent","timestamp":134320390258319784,"type":"double","value":3.9}

event: update
id: 3
data: {"node":"framework/metrics/system/memavailable-mb","timestamp":134320390258321022,"type":"double","value":1298.07421875}

Related Links

• Using REST API of ctrlX CORE

• How to make an HTTPS connection with ctrlX OS Web Server

• How to subscribe to nodes of the ctrlX Data Layer using REST commands via CURL

• Online documentation:

  • ctrlX OS, Operating System for ctrlX CORE Control Devices Version 3, Application Manual --> ctrlX Data Layer --> Subscriptions

  • Subscription - Language binding
