Graphical and Textual Python Programming for Pick and Place using IDE App

Overview

Here you can find two examples, one for graphical and one for textual python programming of a pick and place movement for the ctrlX MOTION on a ctrlX CORE. If you like to see how they were set up watch the corresponding how-to video "How to #3 Use Graphical Programming for Pick & Place":

Preparation

A ctrlX CORE or a ctrlX CORE^virtual is needed.
The version of the system apps fitting to RM21.03 (version 1.8.x) is expected.
An installation of following apps in version 1.8.x is expected:
Please see "Set up a ctrlX CORE & PLC Programming" to get the prepared configuration (PLC and motion) or watch the corresponding video "How to #2 Set up a ctrlX CORE & PLC Programming" to set everything up from scratch.

Graphical Coding

Download the archive "
Data.zip
7.4KB
" and unpack the project file "tiger-DevelopR.png" to your engineering PC.

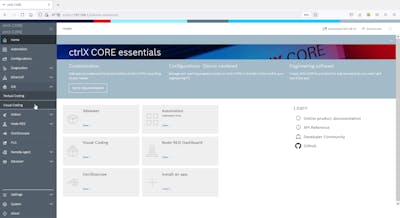

Log into the ctrlX CORE and open the Visual Coding functionality of the IDE App:

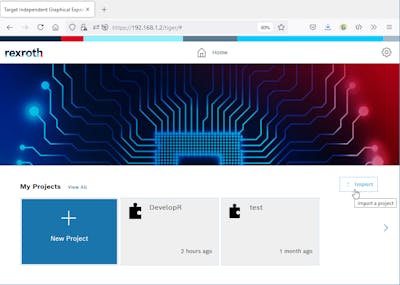

Import the project file into the IDE:
The project will open up automatically and you are good to go.

Textual Coding

Download the archive "
Data.zip
7.4KB
" and unpack the file "DevelopR.py" to your engineering PC.
Log into the ctrlX CORE and open the Textual Coding functionality of the IDE App:

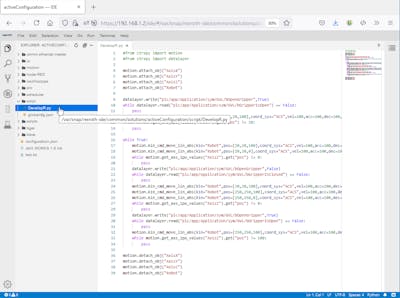

Upload the python file via drag and drop to a folder in the explorer view or right click and choose upload files:
Click on the uploaded file and you are good to go.

Notes

These examples are made for the pre-release version 1.8.x (RM21.03) and the corresponding apps.
Beware of moving mechanics when using automated motion commanding.
In the actual release version >=1.12 you will need valid licenses for using the apps.
