Establish connection of ctrlX DRIVE to EtherCAT control system

Connection to EtherCAT Control (TwinCAT)

Note: EtherCAT is a closed bus system, a direct (parallel) TCP/IP communication with a PC is not possible!

Possible engineering connections with EtherCAT:

1. USB on the ctrlX Panel
2. EtherCAT EOE Mailbox (system must be in PreOp or higher state)
3. ADS Interface (control unit) (system must be in PreOp or higher state)

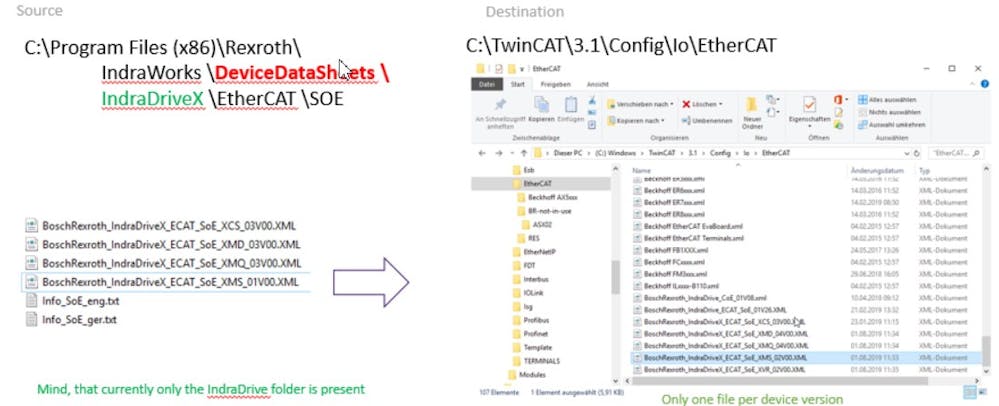

Step 1: Copy the EtherCAT ESI File (XML file) in the correct folder.

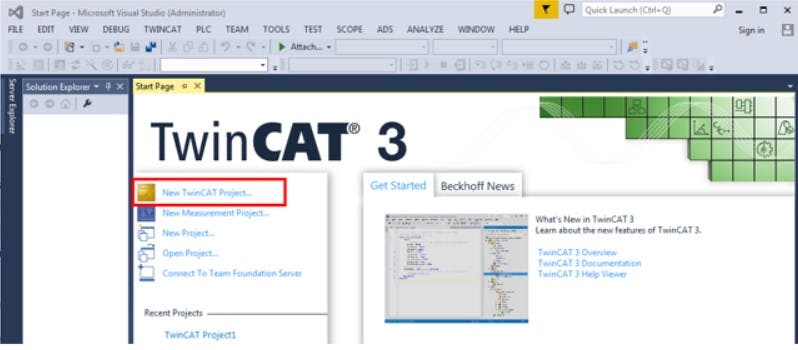

Step 2: Create new project

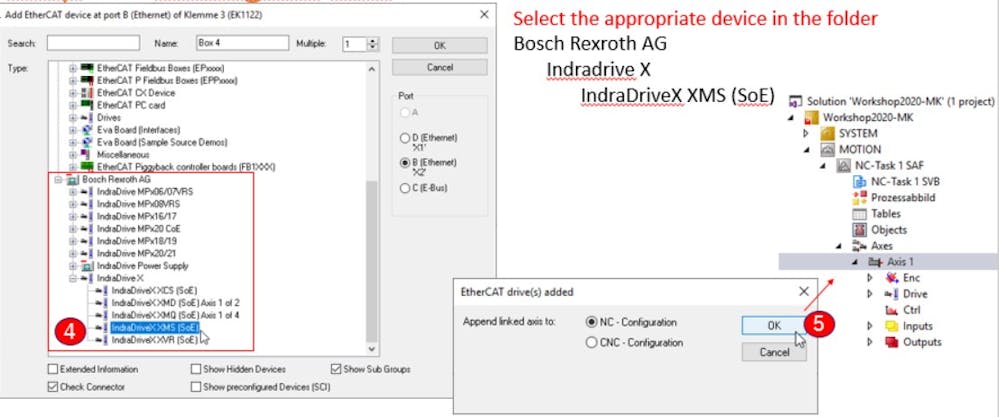

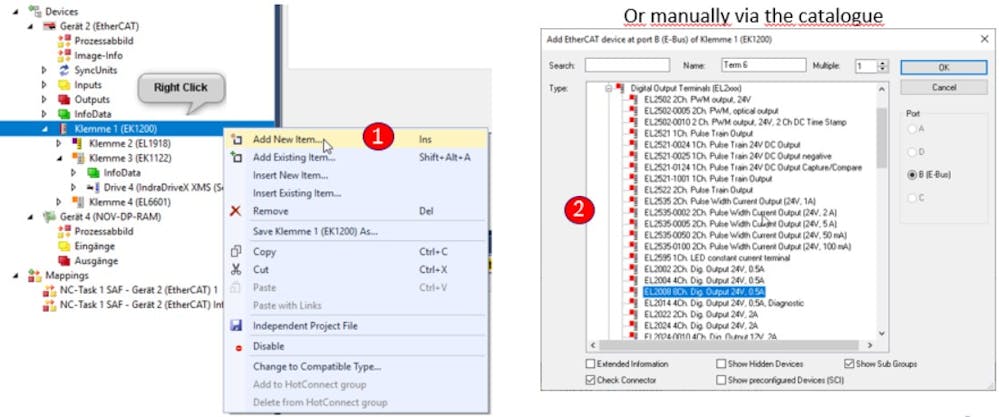

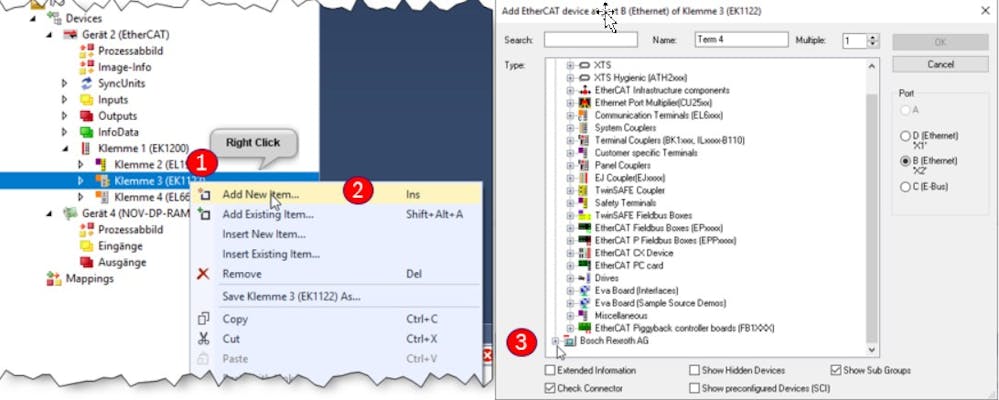

Step 3: Configure hardware

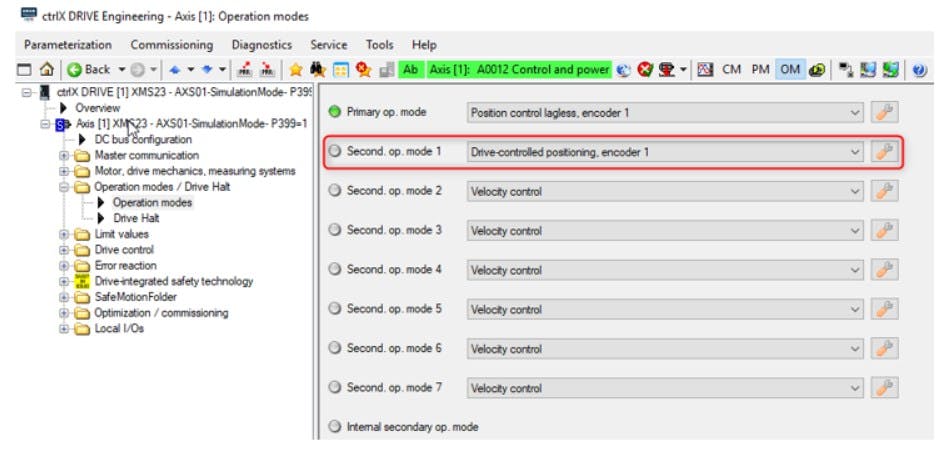

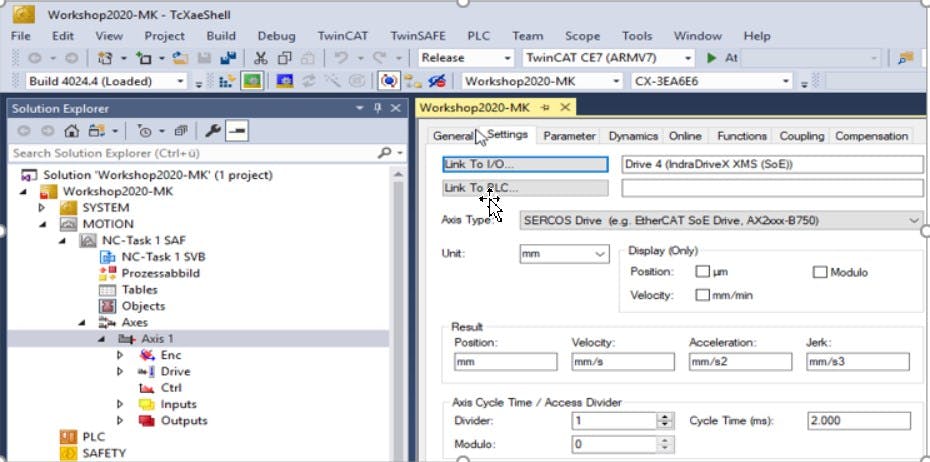

Step 4: Configure axis

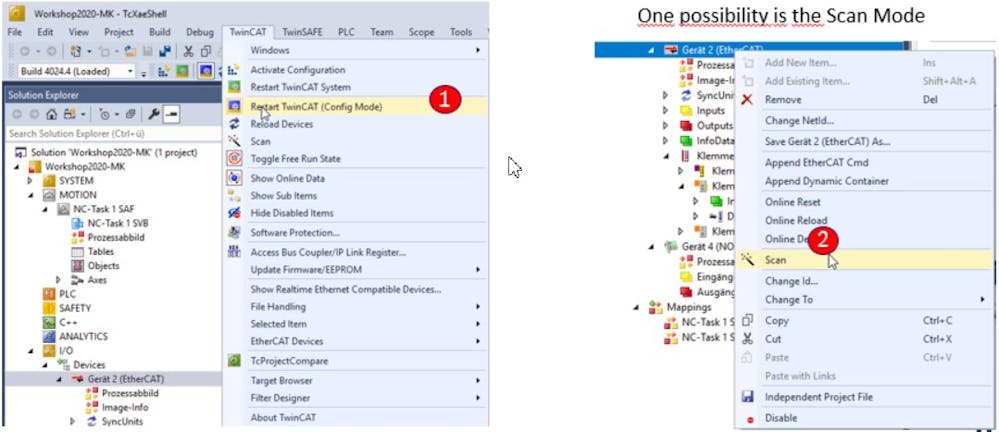

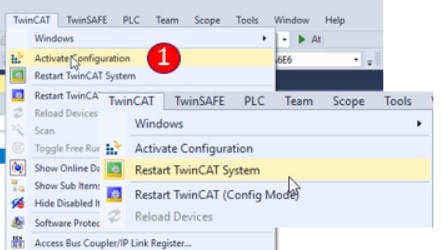

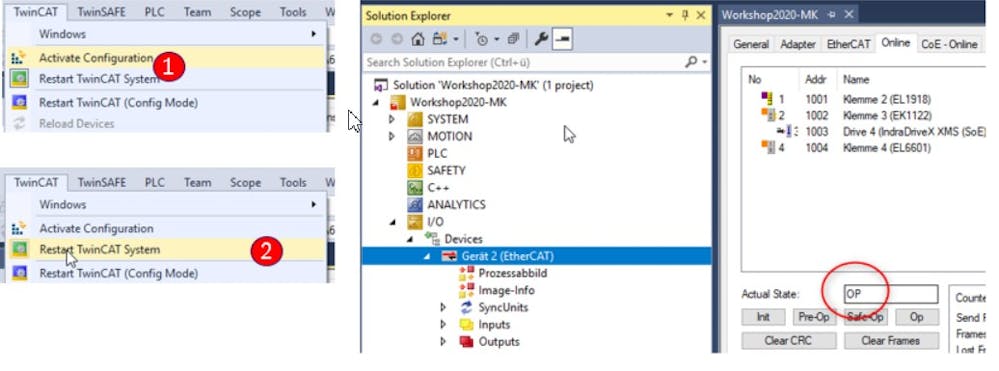

Step 5: Restart TwinCAT Configuration

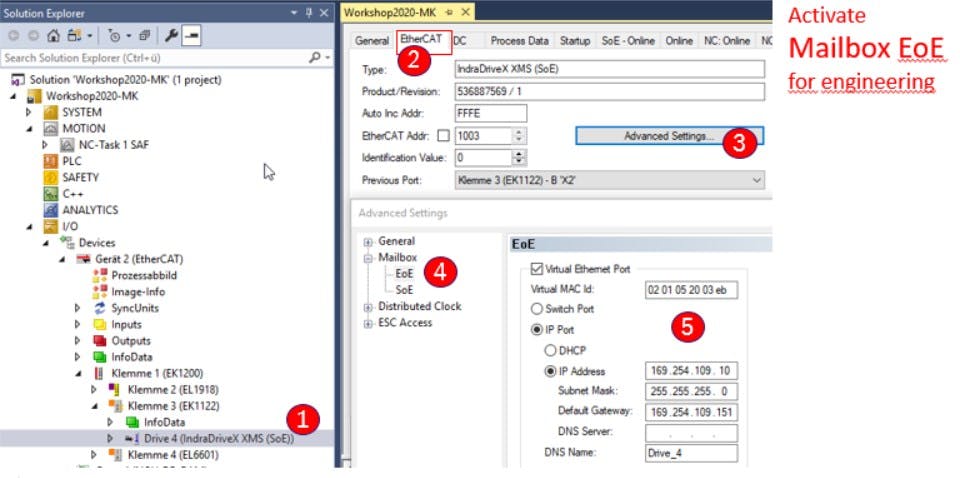

Step 6: Configuration of EOE Mailbox

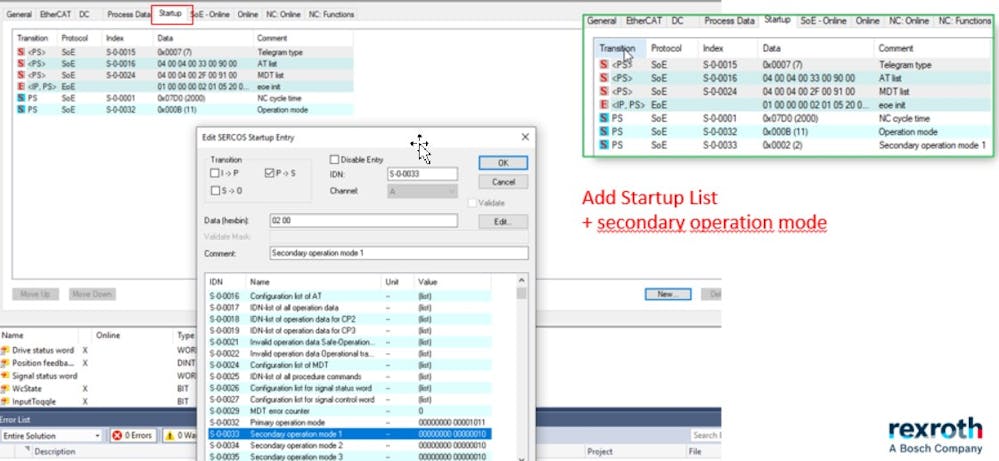

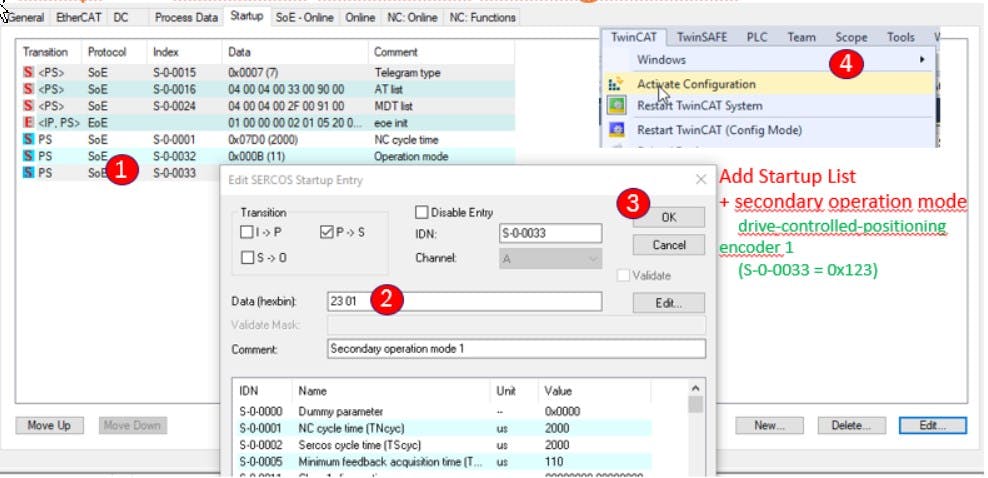

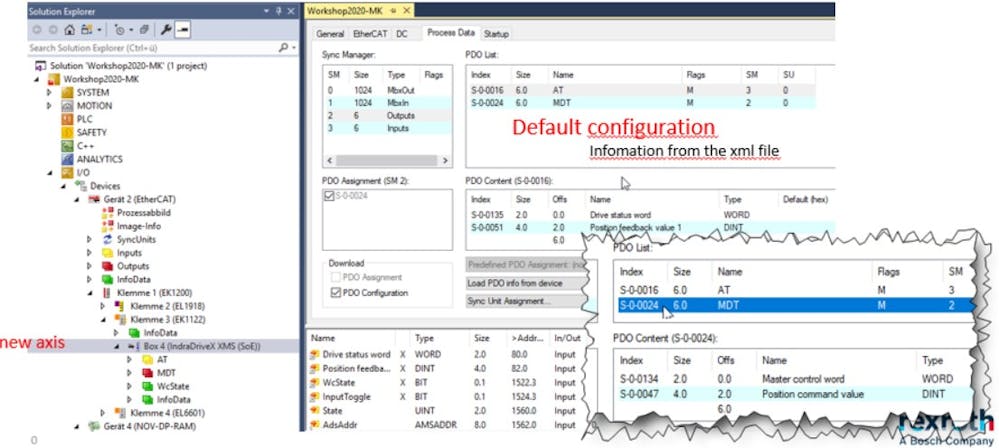

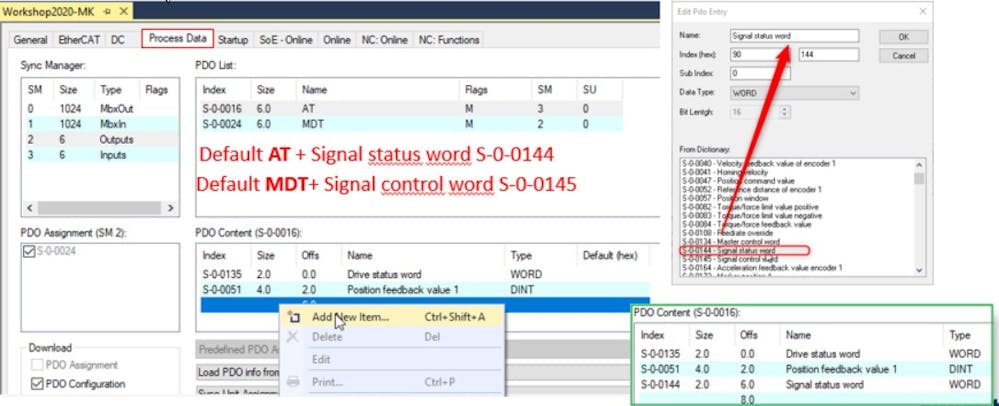

Step 7: Configuration of process data

Step 8: Restart TwinCAT Configuration

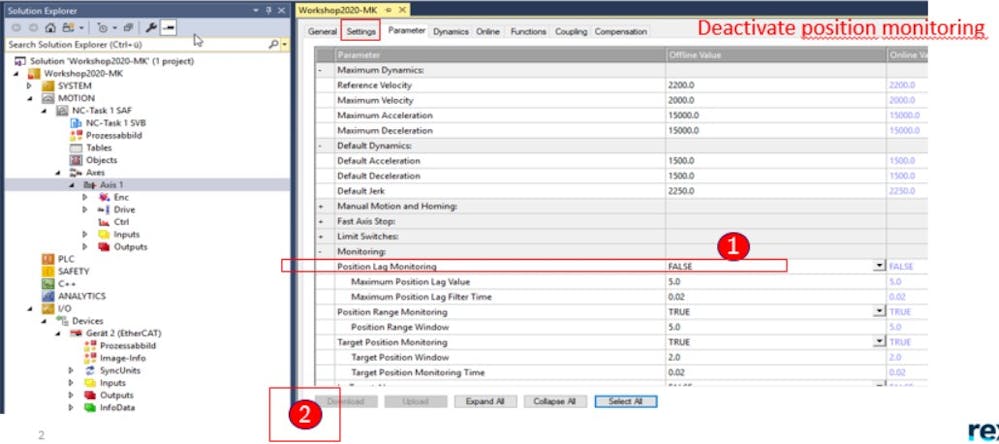

Step 9: Control the right behavior of TwinCAT

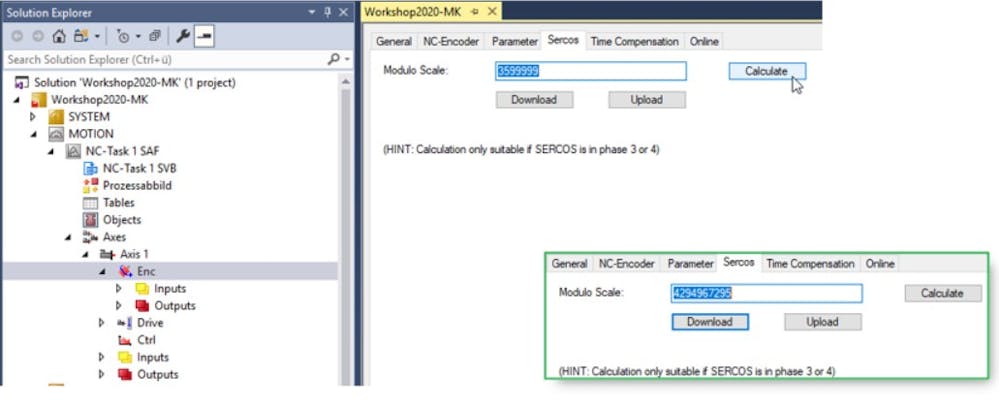

Step 10: Scaling adjustment

Step 11: Restart TwinCAT Configuration

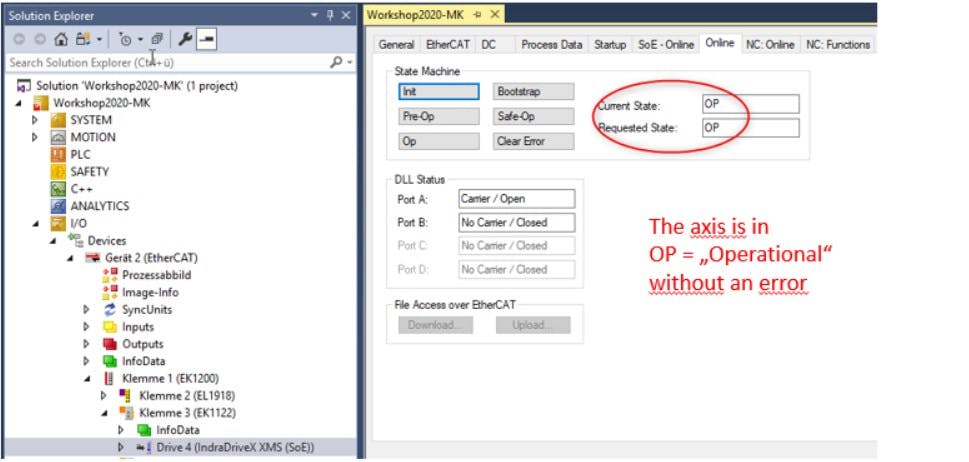

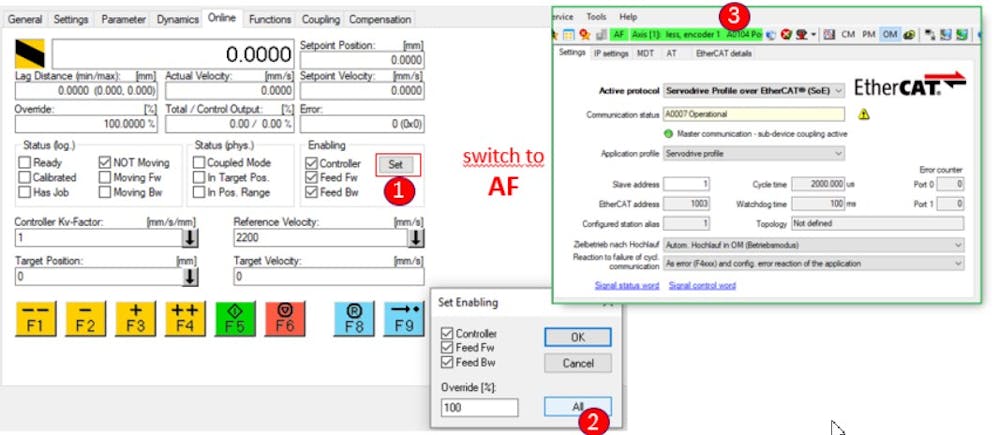

Step 12: Control State Machine

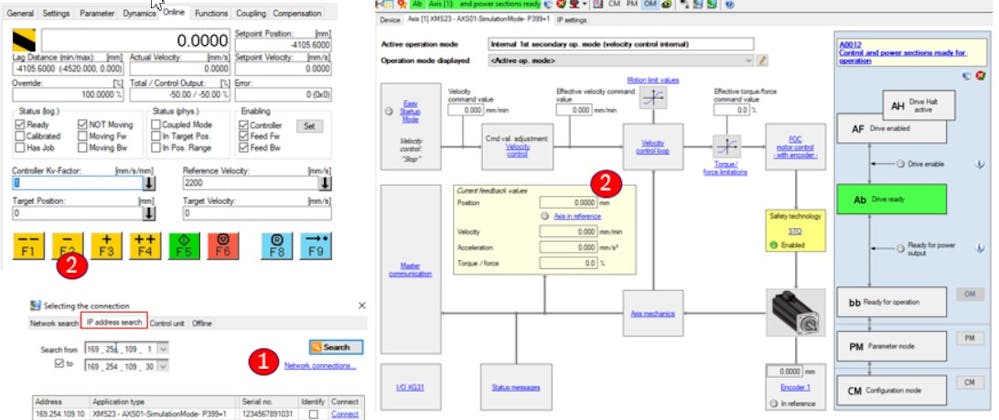

Step 13: Jogging of the axis
