Register multiple flatbuffer types in Data Layer

Sorry for the late reply.

Of course it is possible to register several flatbuffers in one app. I adapted the registernode example of the SDK for ctrlx AUTOMATION in version 1.10:

Added new schema file "mysampleSchema.fbs:

// IDL file for sample schema.
namespace mysample.myschema;
table InertialValue {    x:short;    y:short;    z:short;    a:short;}
root_type InertialValue;

Extended CMakeLists.txt:

...

# Flatbuffers
set (FLATBUFFERS_FLATC_EXECUTABLE ${USER_DEPENDENCY_DIR}/bin/oss.flatbuffers/linux-gcc-x64/release/flatc)
set (FLATBUFFERS_INCLUDE_DIR ${USER_DEPENDENCY_DIR}/include/oss.flatbuffers/oss.flatbuffers)
include (${USER_DEPENDENCY_DIR}/cmake/oss.flatbuffers/FindFlatBuffers.cmake)
set( FLATBUFFERS_FLATC_SCHEMA_EXTRA_ARGS "--gen-object-api")
build_flatbuffers("sampleSchema.fbs" "" "registernodeflatbuffers" "${CMAKE_CURRENT_LIST_DIR}" "${CMAKE_CURRENT_LIST_DIR}" "${CMAKE_CURRENT_LIST_DIR}/bfbs" "")
build_flatbuffers("mysampleSchema.fbs" "" "myregisternodeflatbuffers" "${CMAKE_CURRENT_LIST_DIR}" "${CMAKE_CURRENT_LIST_DIR}" "${CMAKE_CURRENT_LIST_DIR}/bfbs" "")

...

# Define Executables to add from project files and their depending source files
add_executable( ${TARGET_PROJECT_NAME}	${SOURCE_FILES_REGISTERNODE}  )
add_dependencies(${TARGET_PROJECT_NAME} registernodeflatbuffers)
add_dependencies(${TARGET_PROJECT_NAME} myregisternodeflatbuffers)

Adapted main.cpp:

...

#include "sampleSchema_generated.h"
#include "mysampleSchema_generated.h"

...

// Read function of metadata of an object. Function will be called whenever a node should be written.
  virtual void onMetadata(const std::string &address, const comm::datalayer::IProviderNode::ResponseCallback &callback) override  {
    flatbuffers::FlatBufferBuilder builder;
    flatbuffers::Offset<flatbuffers::Vector<flatbuffers::Offset<comm::datalayer::Reference>>> references;
    flatbuffers::Offset<flatbuffers::Vector<flatbuffers::Offset<comm::datalayer::Reference>>> references2;
    auto emptyString = builder.CreateString("This is a Description");

    if (address.compare("myData/myFlatbuffer") == 0)    {
      flatbuffers::Offset<comm::datalayer::Reference> vecReferences[] =      {
        comm::datalayer::CreateReferenceDirect(builder, "readType", "types/sampleSchema/inertialValue"),      };

      references = builder.CreateVectorOfSortedTables(vecReferences, 1);    }
    else if (address.compare("myData/myFlatbuffer2") == 0)    {
      flatbuffers::Offset<comm::datalayer::Reference> vecReferences[] =      {
        comm::datalayer::CreateReferenceDirect(builder, "readType", "types/mysampleSchema/inertialValue"),      };

      references2 = builder.CreateVectorOfSortedTables(vecReferences, 1);      }

    // Set allowed operations
    comm::datalayer::AllowedOperationsBuilder allowedOperations(builder);
    allowedOperations.add_read(true);
    allowedOperations.add_write(false);
    allowedOperations.add_create(true);
    allowedOperations.add_delete_(false);
    auto operations = allowedOperations.Finish();

    // Create metadata
    comm::datalayer::MetadataBuilder metadata(builder);
    metadata.add_description(emptyString);
    metadata.add_descriptionUrl(emptyString);
    metadata.add_operations(operations);
    if (address.compare("myData/myFlatbuffer") == 0)    {
      metadata.add_references(references);    }
    else if (address.compare("myData/myFlatbuffer2") == 0)       {
      metadata.add_references(references2);    }
    auto metaFinished = metadata.Finish();
    builder.Finish(metaFinished);

...

// Create dummy flatbuffer data
  flatbuffers::FlatBufferBuilder builder2;
  auto actInertialValue2 = mysample::myschema::CreateInertialValue(builder2, 33, -427, 911, 42);
  builder2.Finish(actInertialValue2);
  comm::datalayer::Variant myFlatbuffer2;
  myFlatbuffer2.shareFlatbuffers(builder2);

  // Register type of flatbuffer value
  // If running on SNAP environment, use $SNAP environment variable for register the bfbs
  std::string bfbsPath2 = getenv("SNAP") != nullptr ? getenv("SNAP") : "bfbs";
  bfbsPath2 += "/sampleSchema.bfbs";
  std::cout << bfbsPath2 << std::endl;
  result = myProvider->registerType("types/mysampleSchema/inertialValue", bfbsPath2);
  if(STATUS_FAILED(result))  {
    std::cout << "Register type 'types/mysampleSchema/inertialValue' failed with: " << result.toString() << std::endl;  }
  else  {
    std::cout << "Register type 'types/mysampleSchema/inertialValue' was successful!" << std::endl;  }

    // Register a node as flatbuffer value
  result = myProvider->registerNode("myData/myFlatbuffer2", new MyProviderNode(myFlatbuffer2));
  if(STATUS_FAILED(result))  {
    std::cout << "Register node 'myData/myFlatbuffer2' failed with: " << result.toString() << std::endl;  }
  else  {
    std::cout << "Register node 'myData/myFlatbuffer2' was successful!" << std::endl;  }

...

  // Unregister type and nodes
  myProvider->unregisterType("types/sampleSchema/inertialValue");
  myProvider->unregisterType("types/mysampleSchema/inertialValue");

...

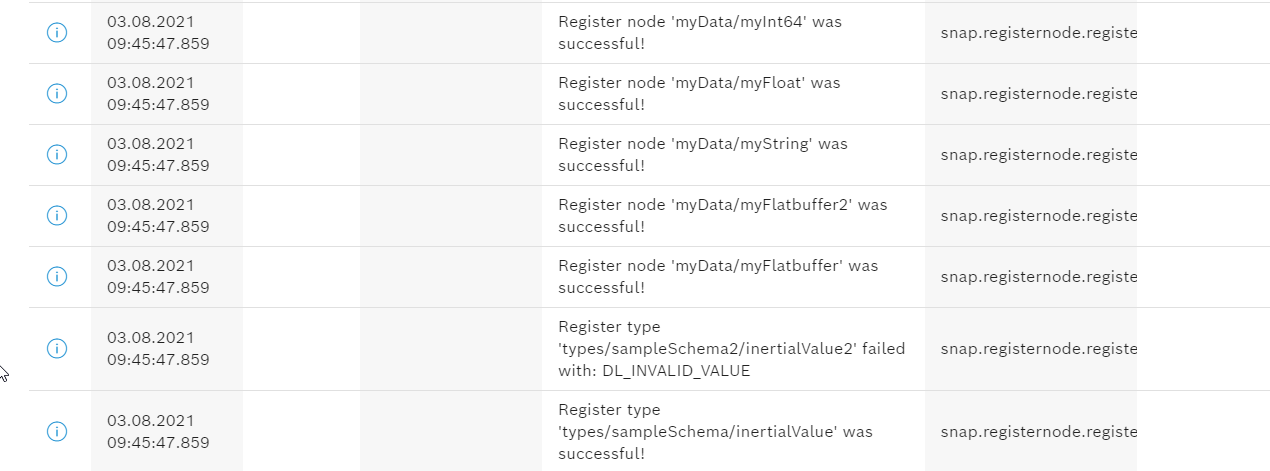

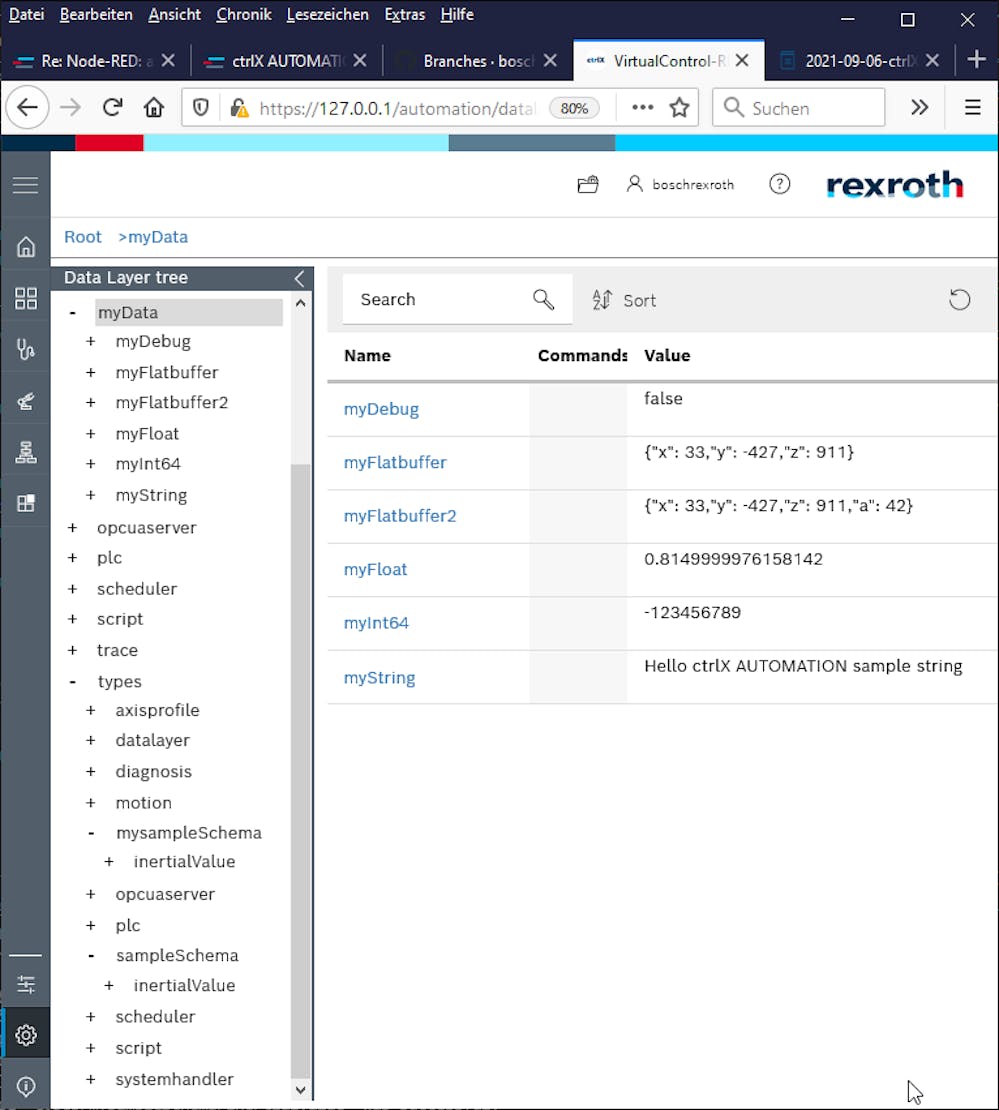

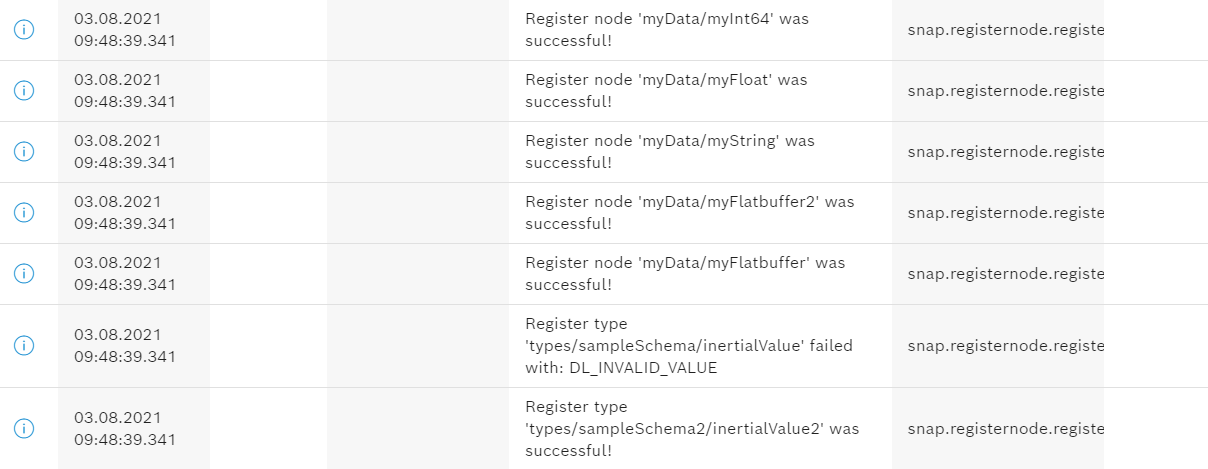

Run application:
