Easy Automation Library for ctrlX DRIVE - LabVIEW™ toolbox

Overview

The Easy Automation Library (EAL) - LabVIEW™ toolbox - adds a new palette to your LabVIEW™ environment to connect and access the ctrlX DRIVE, IndraDrive or EFC.

There are functions to configure and commanding an axis as well as a power supply.

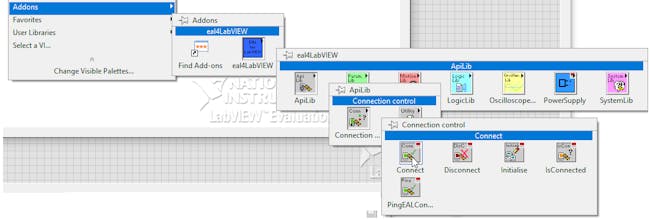

EAL for ctrlX DRIVE - Toolbox for LabVIEWx

Available Modules

  • ApiLib

  • ParameterLib

  • MotionLib

  • LogicLib

  • Oscilloscope

  • PowerSupply

  • SystemLib

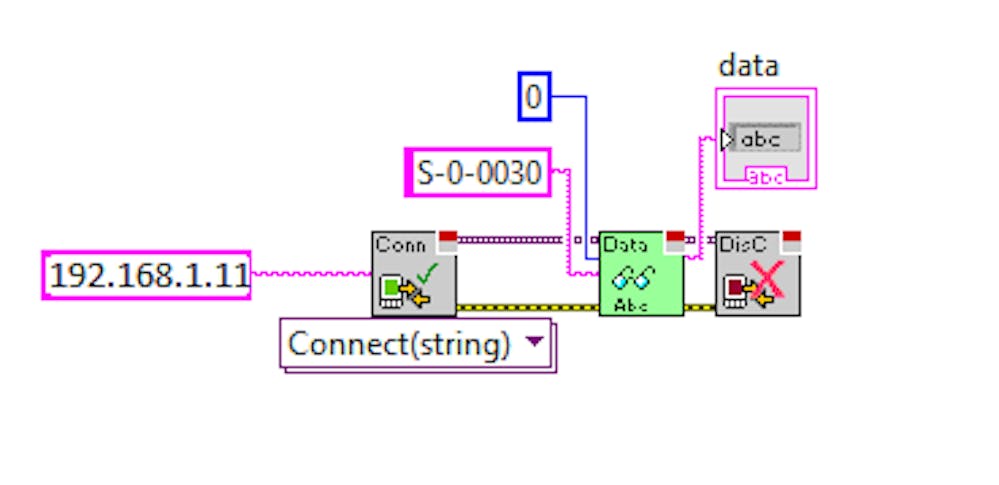

Example of a parameter access

Example Parameter Access with ctrlX DRIVE in LabVIEWx

Each EAL function call is provided as a LabVIEW™  VI which can be integrated in your own LabVIEW™  program. Applications which are using the EAL for LabVIEW™ toolbox can only run-on Microsoft Windows operating systems and need National Instruments LabVIEW™  installation.

Support

Forum ctrlX DRIVE

Related Links


LabVIEW™  is a registered trademark of National Instruments Corp.
See https://www.ni.com/en/about-ni/legal/trademarks-and-logo-guidelines.html for further trademarks and registered trademarks that might be mentioned in this document.
