Universal Machine Connector (UMC) from Bosch Manufacturing Solutions is an application for connecting to different industrial controls, shopfloor devices, IT systems or other data sources.
Depending on the configuration, the app reads variables, tags, datapoint values by means of various protocols and transfers them to a data target.
Examples for data sources, protocols and targets are:
Bosch Rexroth
Siemens S5, S7 & Sinumerik
Beckhoff (ADS)
Allen-Bradley (Ethernet/IP)
OPC UA
MongoDB, MQTT, Solace, Kafka, Nexeed, ProMaster, Python, Matlab, UDP, TCP, multiple file formats, and many more...
Data can be processed in real time or non-real time and can be transferred bidirectional. The number of connections as well as the used protocols depends on the UMC license.
Additionally, the UMC provides for bidirectional communication, e.g. between Allen-Bradley PLC systems and ctrlX Data Layer and Fanuc PLC systems and ctrlX Data Layer.
Data acquisition is the basic functionality to implement use-cases for:
optimize production
connect to Scada or MES systems
process monitoring
data-based process optimizations, control loop implementations, user guidance and many more.
Your benefits at a glance
UMC
Supports a large variety of protocols
Developed with a broad and well-founded knowledge of industrial control and IT systems
Data can be processed in real time or non-real time
Data can be transferred bidirectional
Provides data and enables various I4.0 solution
UMC with fixed protocol specification
Low configuration effort by providing predefined configurations

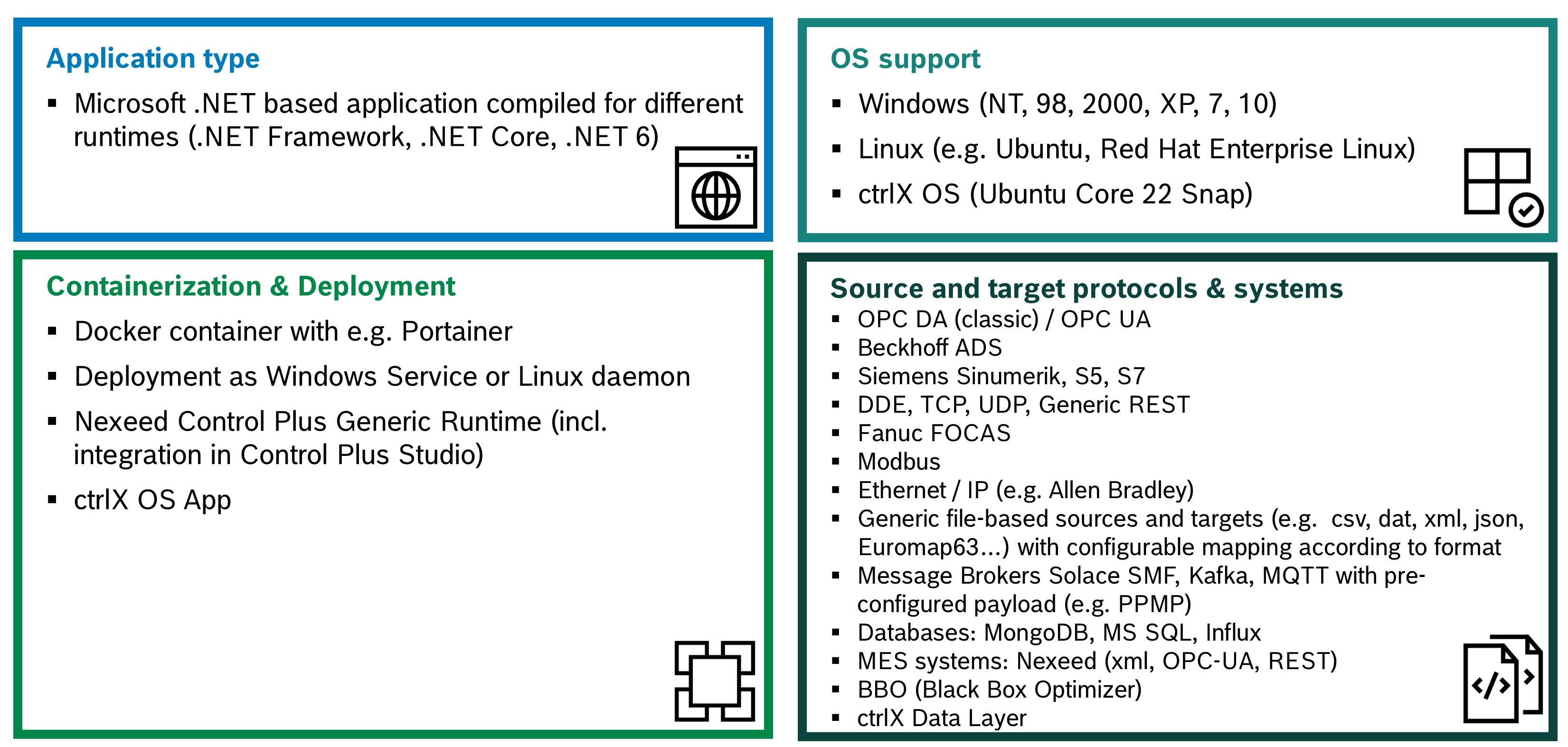

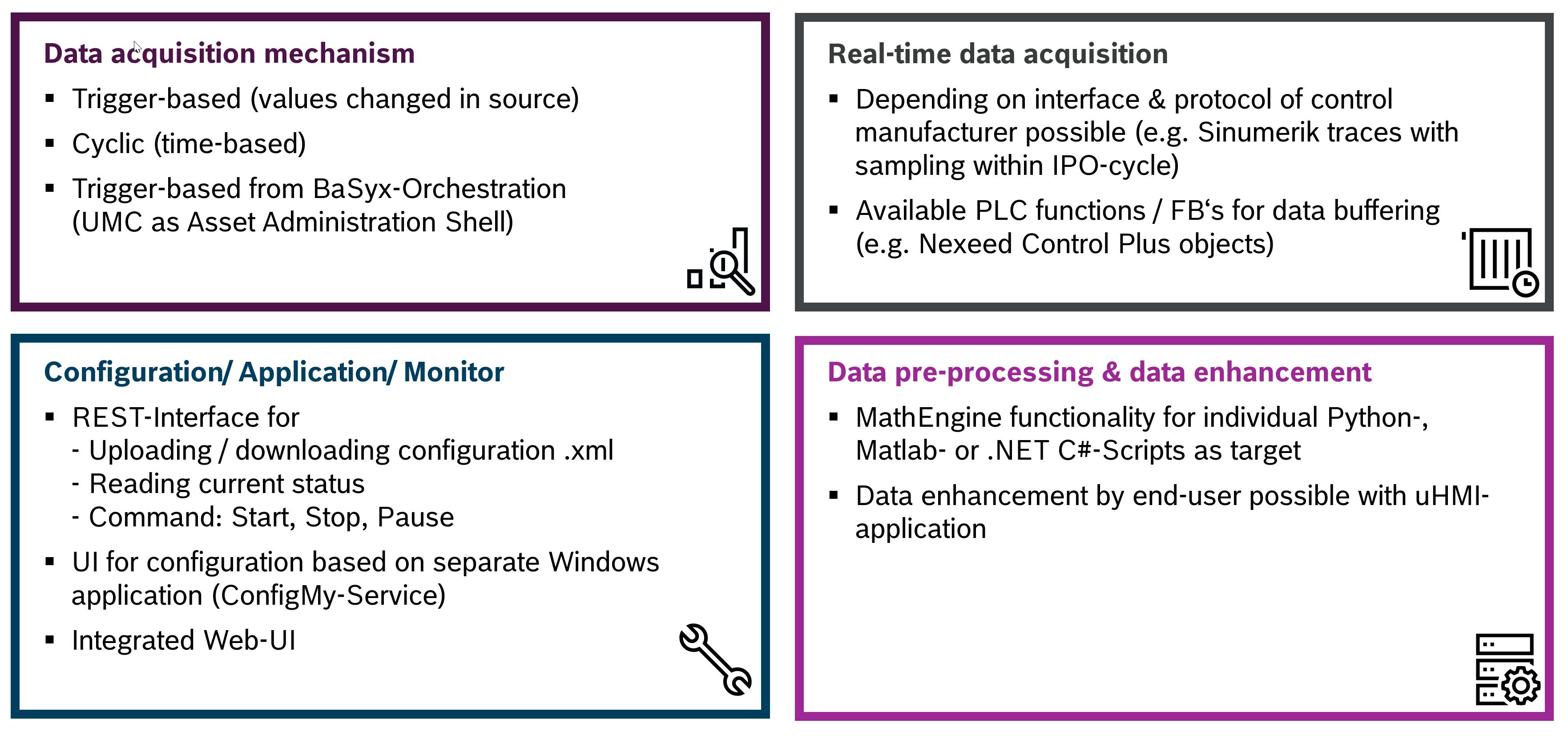

Main Features
Licenses
One UMC license entitles to connect to one controller, if several controllers need to be connected further UMC licenses are needed.
There is a special license available for connecting to Allen-Bradley (Rockwell) PLC and storing the data in the ctrlX Data Layer.
Specific variants can be provided for multiple connections.
Prerequisites
none
Documentation
see download area of app
Support
Related Links
Curious?
You can test many apps free of charge with a virtual control system provided by ctrlX WORKS.
Just download ctrlX WORKS and follow this How-to
[link-button type="light" text="TRY IT NOW" target="_blank" href="https://community.boschrexroth.com/ctrlx-os-store-apps-oc2pqqwn/post/ctrlx-works-xOJLFLUiK4NGm5H"]
The Company
As a global supplier in the area of special purpose machinery, Bosch Manufacturing Solutions offers individual & intelligent assembly and testing solutions, incl. advanced manufacturing processes and technologies, digital & intelligent solutions and services along the entire product life cycle.
