Bosch - DeviceBridge

Bosch DeviceBridge is an Industry 4.0 software that provides a single, scalable and secure connectivity to industrial assets in a manufacturing industry.  It connects to wide variety of legacy and new industrial assets and data sources like CNC’s, PLC’s, Sensors, etc. within a single instance. DeviceBridge acquires manufacturing data, processes the same and deliver it to upstream IT Applications, like MES, in the demanded format.

By simplifying Industrial Connectivity, DeviceBridge is enabling customers to drive decisions with real time manufacturing data. Customers can develop business insights harnessing the power of Manufacturing Data.

DeviceBridge supports connectivity to most of the popular control system in the market

  • Siemens – PLCs and CNCs

  • Mitsubishi PLCs

  • Allen Bradley PLCs

  • Rexroth PLCs

  • OPC Servers (OPC UA/DA)

  • Modbus Server (TCP, RTU)

  • Others…

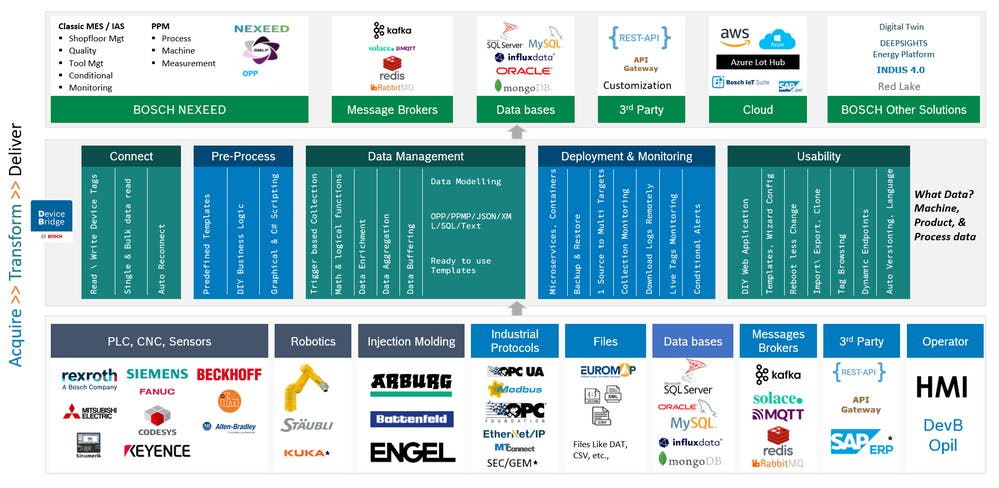

Portfolio


All major Industrial Communication Protocols are supported – Ethernet/IP, S7 Protocol, Modbus, MC Protocol, MT Connect, Serial, OPC, etc.

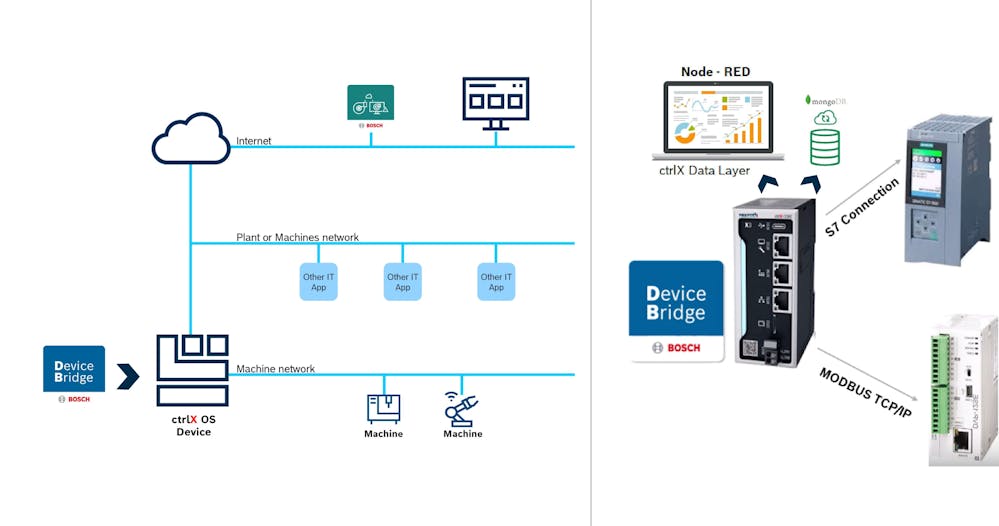

Sample Topologies

Sample Topologies

Once the data is collected, a lot of flexibility offered at the Edge Level – Custom Data formatting, Custom Data Model (Json, XML), Conversions, Edge computation. With Dynamic Collector, the end user can define own Business Logic with Graphical interface (Google Blockly).

The processed data can be sent to Multiple Upstream Applications.

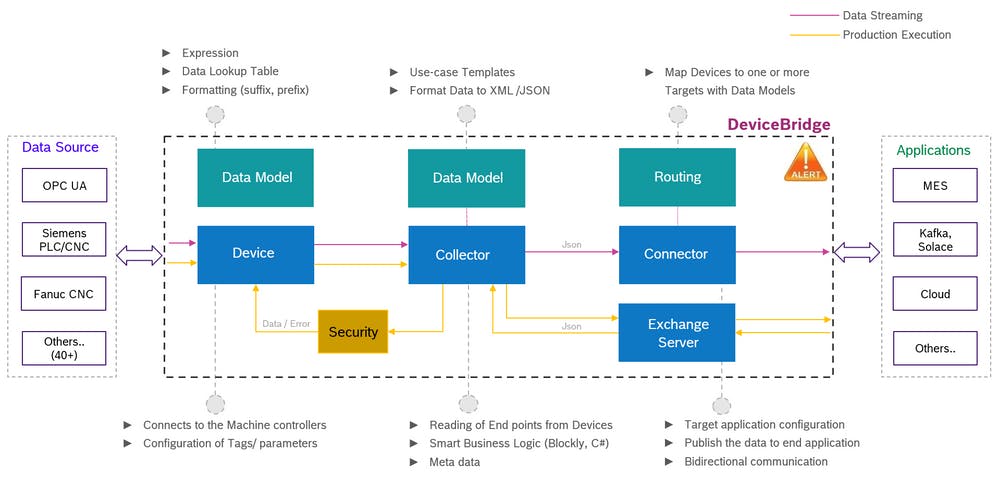

Overview Working Principle

Overview Working Principle

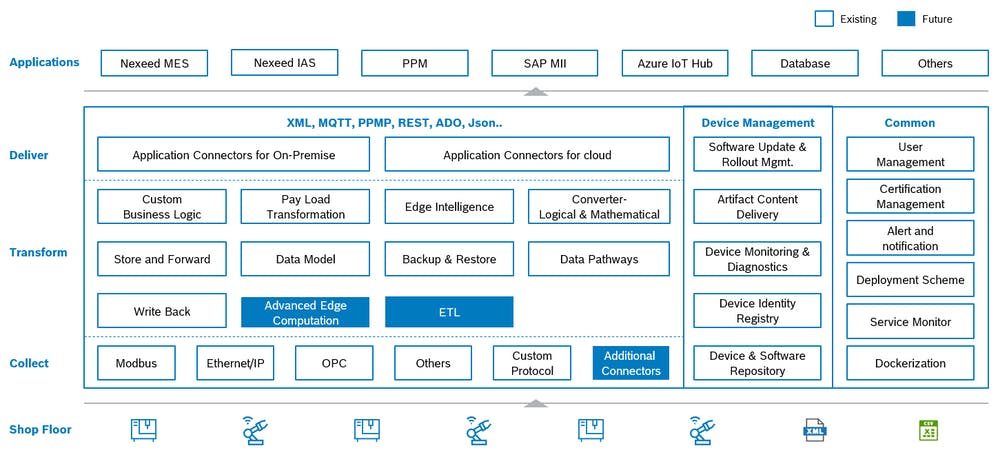

Overview Functional Architecture

Overview Functional Architecture

Device Management - Demo

[gallery]


Licensing

  • "Tag" is one data point that is collected from the Device.

  • "Device" is one "Controller" with unique IP address that is connected to DeviceBridge (Ex: Siemens S7-314 PLC).

  • Multiple licenses are currently available for DeviceBridge

    • 100 Tags - 1 Device

    • 200 Tags - 2 Devices

    • 500 Tags - 5 Devices

    • 2000 Tags - 20 Devices.

  • Licenses can be combined and activated on the ctrlX CORE as desired, e.g DeviceBridge license with 100 tags + 200 tags. This results in total of 300 tags and connection of upto 3 Devices.

The upper limit for tags depends on the load of ctrlX CORE. For performance reasons, in case of ctrlX CORE X3 it is recommended not to exceed 200 Tags - 2 Devices.

Special licenses for machine builders are available. Get in touch with the ctrlX OS team.

Latest update and fixes for version 3.0

  • Google Blockly integration

  • New Mitsubishi A-series Driver

  • 10 days trial license available

  • New drivers and connectors, e.g. ctrlX Data Layer and Beckhoff ADS

Prerequisites

  • ctrlX CORE Hardware -> Hardware running ctrlX OS

  • System Apps and Licenses

    • Data Layer License (optional)

Support

✉️ [email protected] 1)

 Forum Bosch - DeviceBridge

Related Links

Curious?

You can test many apps free of charge with a virtual control system provided by ctrlX WORKS.
Just download ctrlX WORKS and follow this How-to

[link-button type="light" text="TRY IT NOW" target="_blank" href="https://community.boschrexroth.com/ctrlx-os-store-apps-oc2pqqwn/post/ctrlx-works-xOJLFLUiK4NGm5H"]



The Company

Bosch Global Software Technologies Pvt Ltd, BGSW (formerly known as Robert Bosch Engineering and Business Solutions) is one of the world’s leading global suppliers of technology and services. With over 23,000 associates BGSW is Bosch’s largest software development center outside Germany. With a global presence in US, Europe and the Asia Pacific region, it offers end-to-end Engineering, IT and Business Solutions. BGSW’s unique ability to offer end-to-end solutions that connect sensors, software, and services, makes it the right choice of a “digital transformation partner” for businesses whose goal is to improve performance by introducing a digital element in their products and processes.



1) Note on data protection
The email is sent directly to the partner company! This company is responsible for the processing of the data contained. Please read their data protection information before sending this email! Bosch Rexroth is not responsible for the use of the partner company's support.
