ctrlX Core as Profinet Slave with Codesys Profinet Device

Hello,

I would like to connect ctrlX Core-M-X3 to Siemens PLC via Profinet.

I know that there is Profinet Device App and there is even short tutorial where XF23/XF24 ports are used - LINK

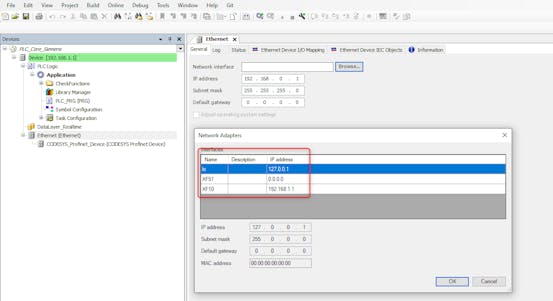

But is it possible to use those ports with Codesys Profinet Device in ctrlX PLC Engineering? I added the Ethernet adapter there and then the Profinet Device and I wanted to chose network interface and I could not pick the XF23/XF24 ports.

Is it possible to have ctrlX Core as Profinet Device with Codesys add-on? Is there any tutorial how to do it?

Best regards, Filip



Best reply by cc2go

The Profinet Device on XF23 and XF24 is a dedicated Profinet Stack, the CodeSys Softstack cannot be assinged to this interface.

To use data from the XF23 and XF24 Profinet Device, you have to add via Data Layer Realtime within the PLC. You can add the Data Layer nodes and exchange data via this way easily.

Hope this answer your doubts.
