WebIQ - How to add multiple languages

Step-by-Step guide

Step 1: Create your own localization sheet

If your language is not available within the default languages in WebIQ, you can create your own localization sheet. First things first, go to Localization Manager.

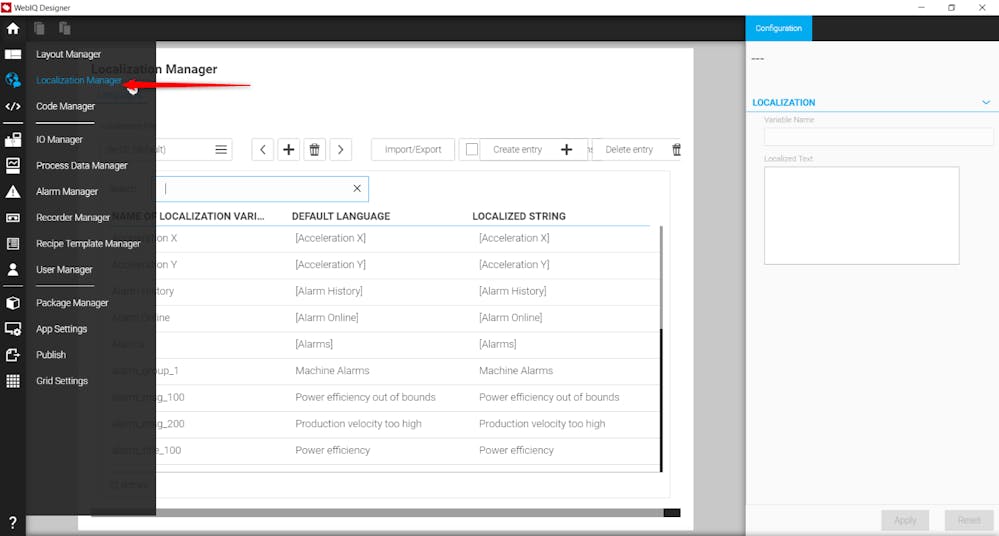

WebIQ Localization Manager

The available languages in WebIQ are German and English, but you can add as many as you want.

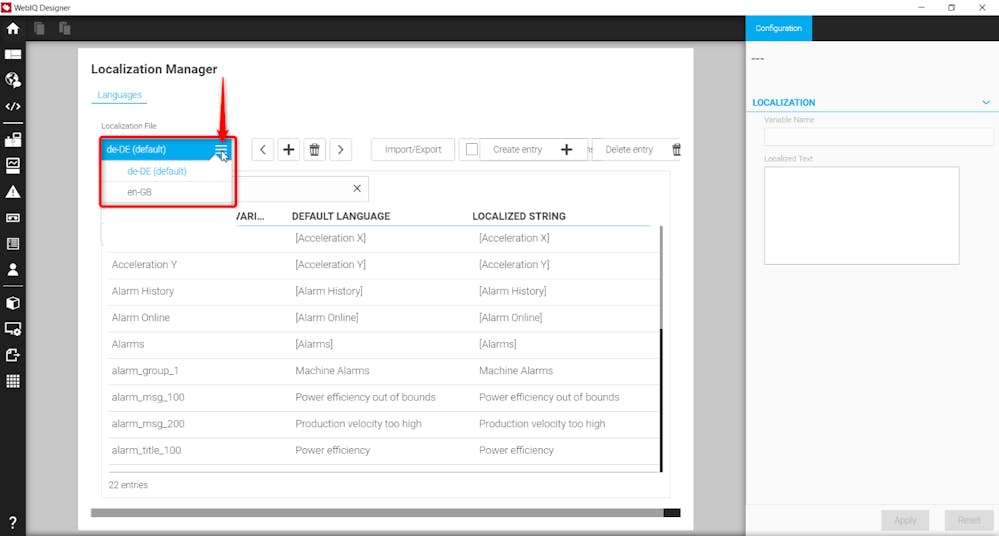

Default languages available

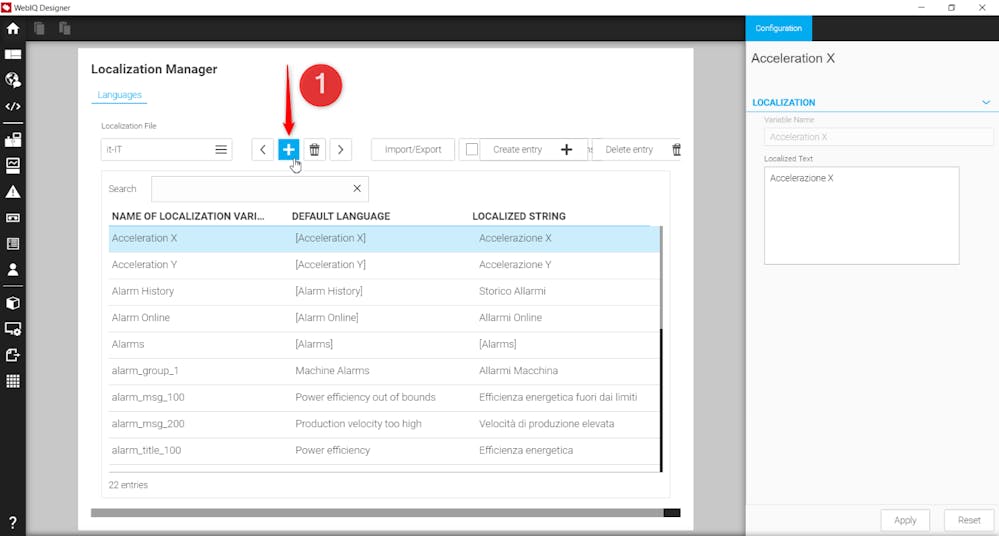

To add a new language, click on the “+” button.

Add a new language

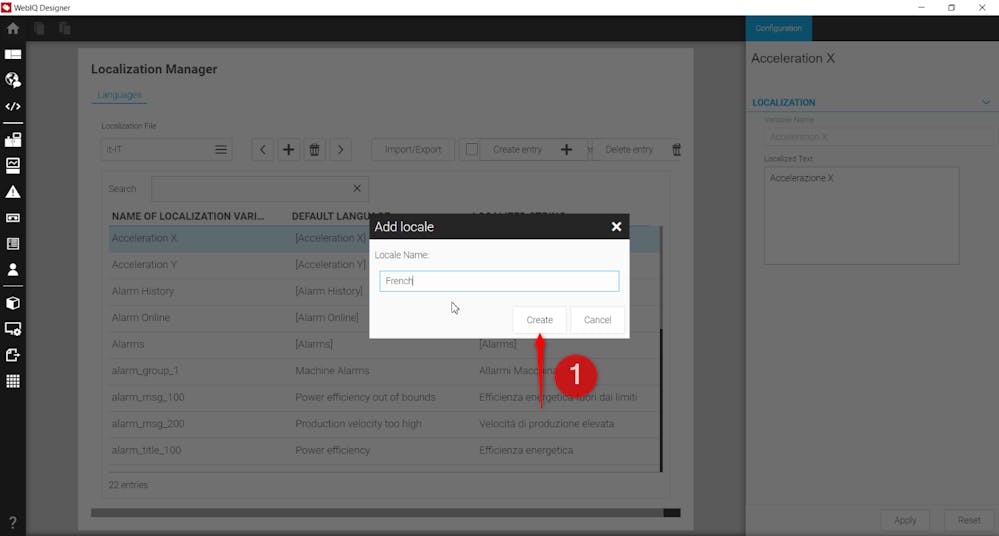

Assign a name to the language you want to add and click on Create.

Add a new language

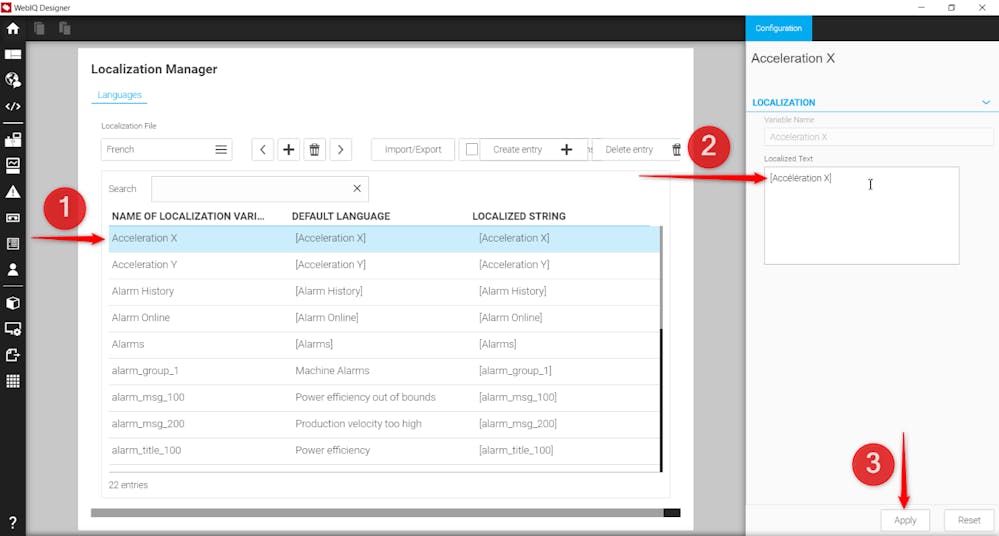

In the table, all variable names, text strings and messages in their own default language are displayed. To translate them on your language, all you have to do is select the variable name you want to translate, write its translation in the “Localized Text” field on the right side of the page and click on the Apply button.

Add a new language

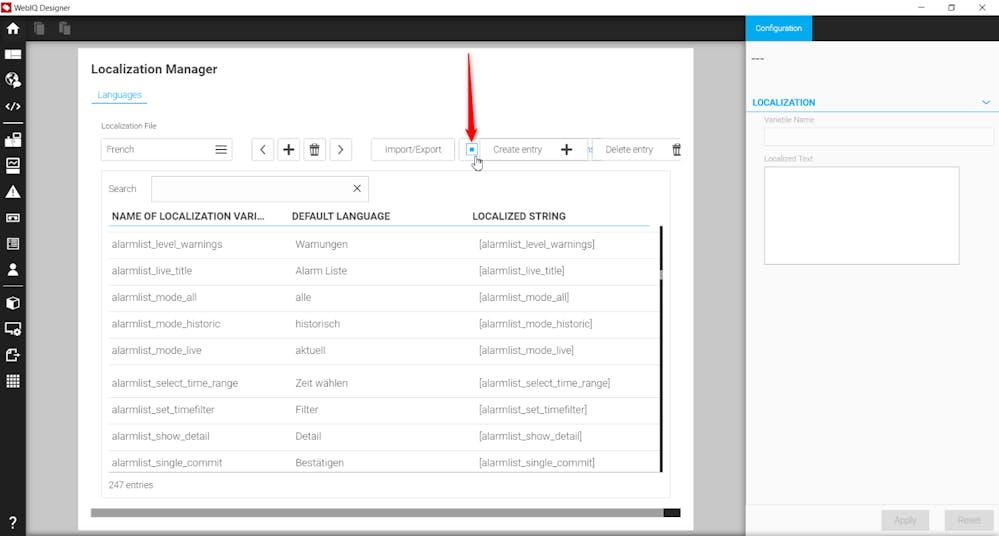

Note: if you click on the checkbox shown in the picture below, all system text strings are displayed in the translation table and can be translated as well. System text strings contain widget captions, system messages, etc.

Add a new language

You can now export your own localization sheet by clicking on the “Import/Export” button. You can select the format you what to export you file to (JSON and CSV formats are available). Once your localization sheet is exported, it can be imported and used in different projects without translating it again.

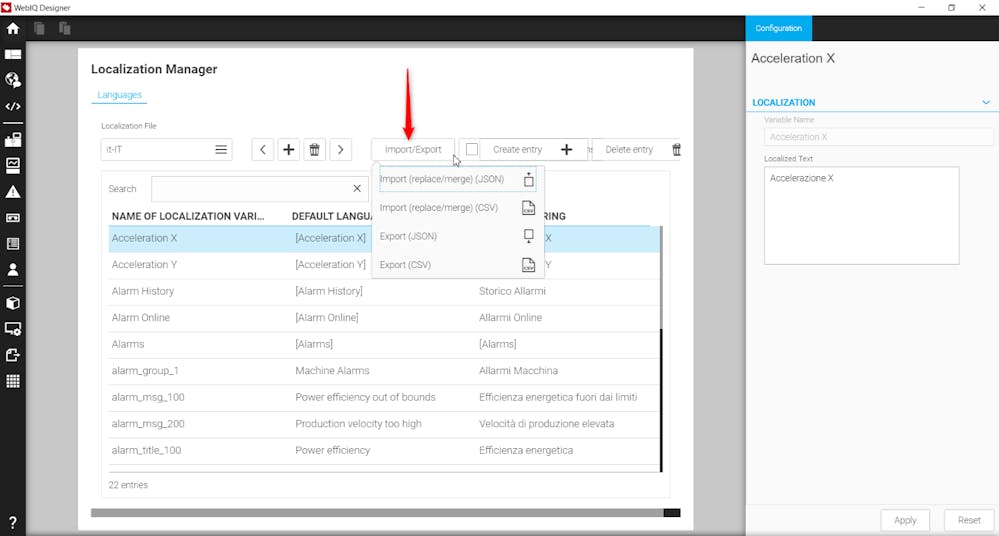

Export/Import of localization sheet

Step 2: Create a button enabling translation on the HMI

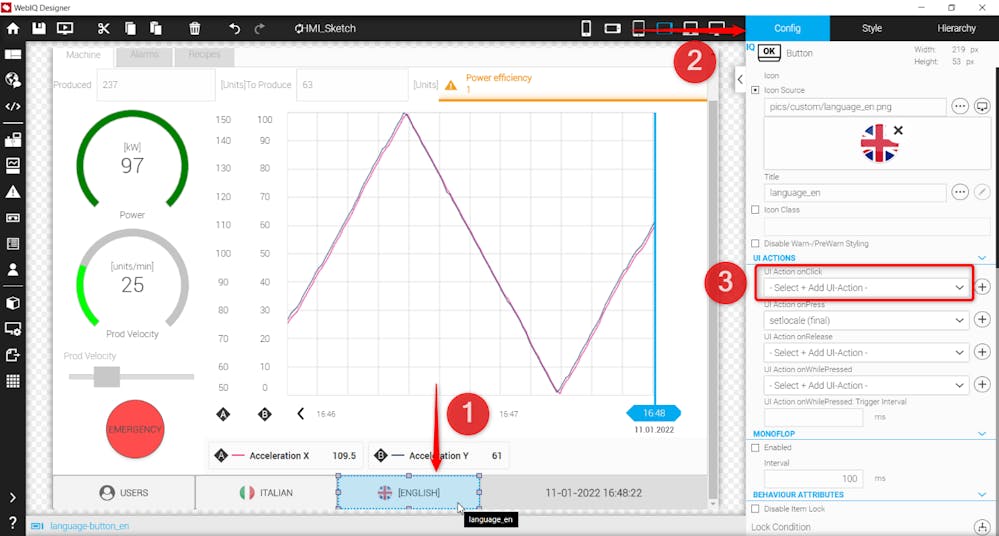

If you want a button on you HMI enabling translated in a different language, you can just add a simple button from the widget list. From the Config tab of the button, scroll the screen up to UI ACTIONS section.

Add a new button for language

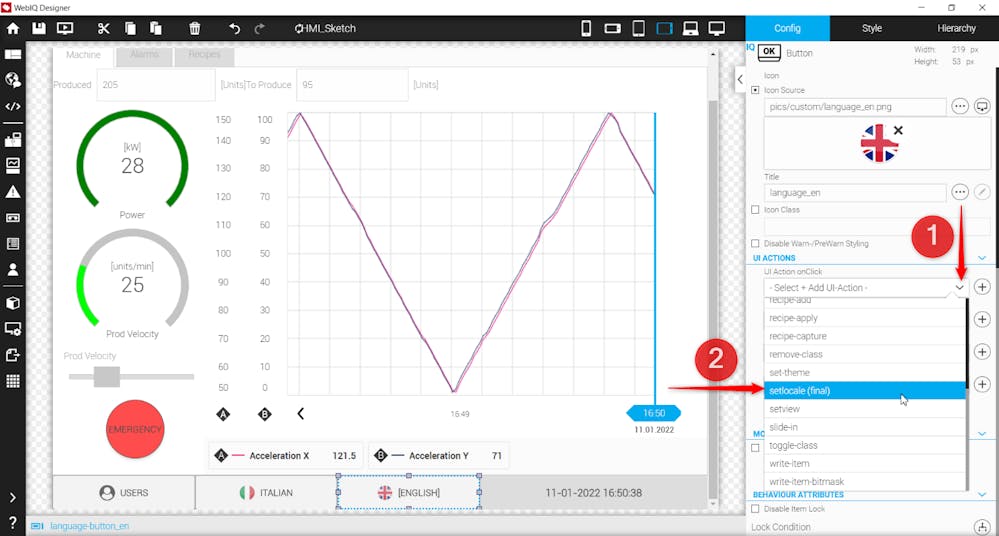

For the “UI Action OnClick” action, select “setlocale (final)” action from the dropdown menu.

Add a new button for language

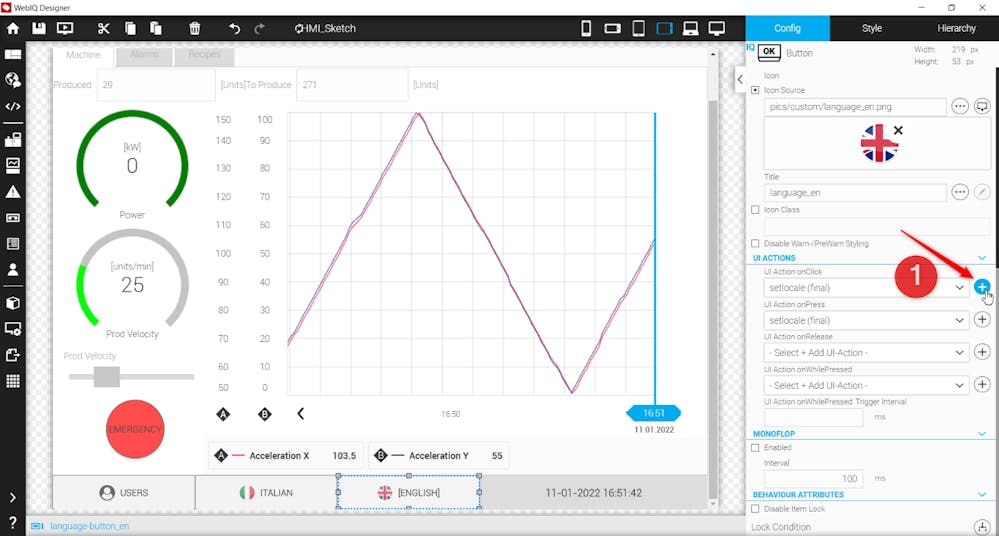

Then press on the “+” button the right side of the field.

Add a new button for language

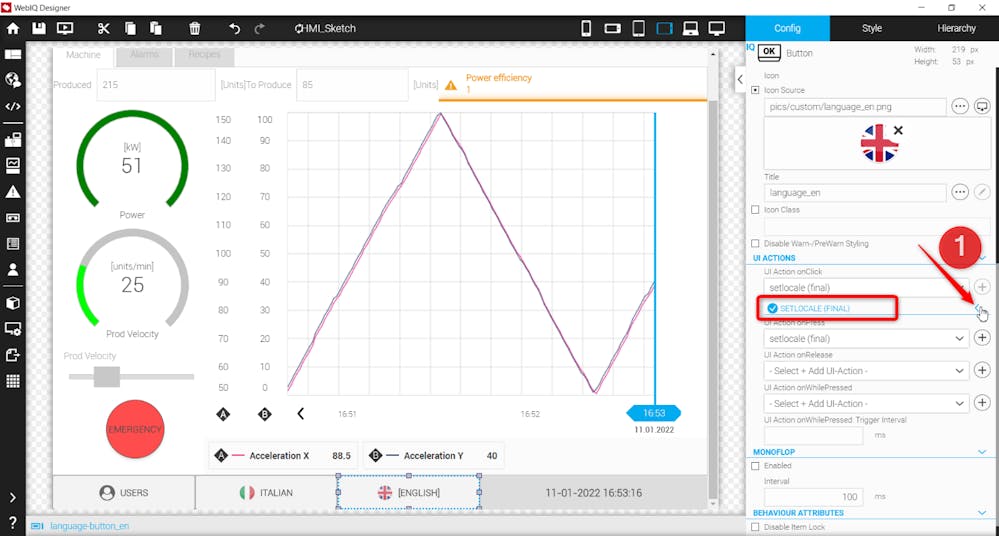

Set the UI-Action for the new button

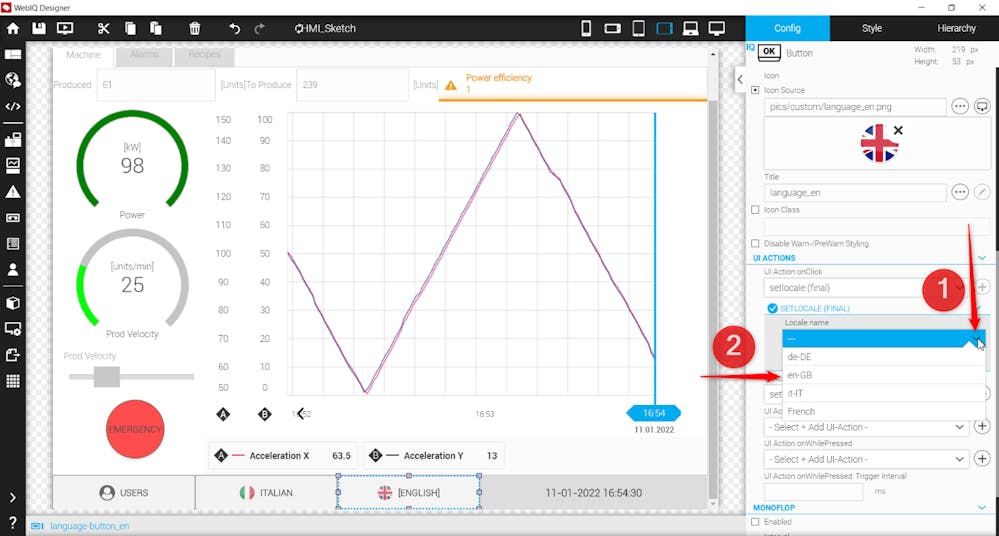

Now select the language you want to translate your HMI to by clicking the button you’ve just created.

Select the new language

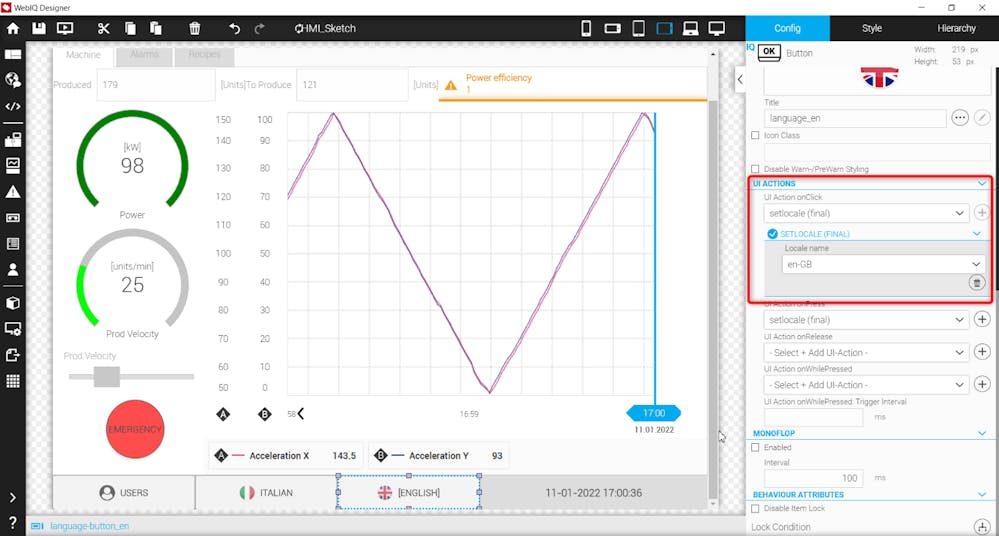

It should look like this.

New language added

Now you have a multiple language HMI.
