Version: ctrlX Control X3 with FW 3V6 / ctrlX Drive with FW 6V06

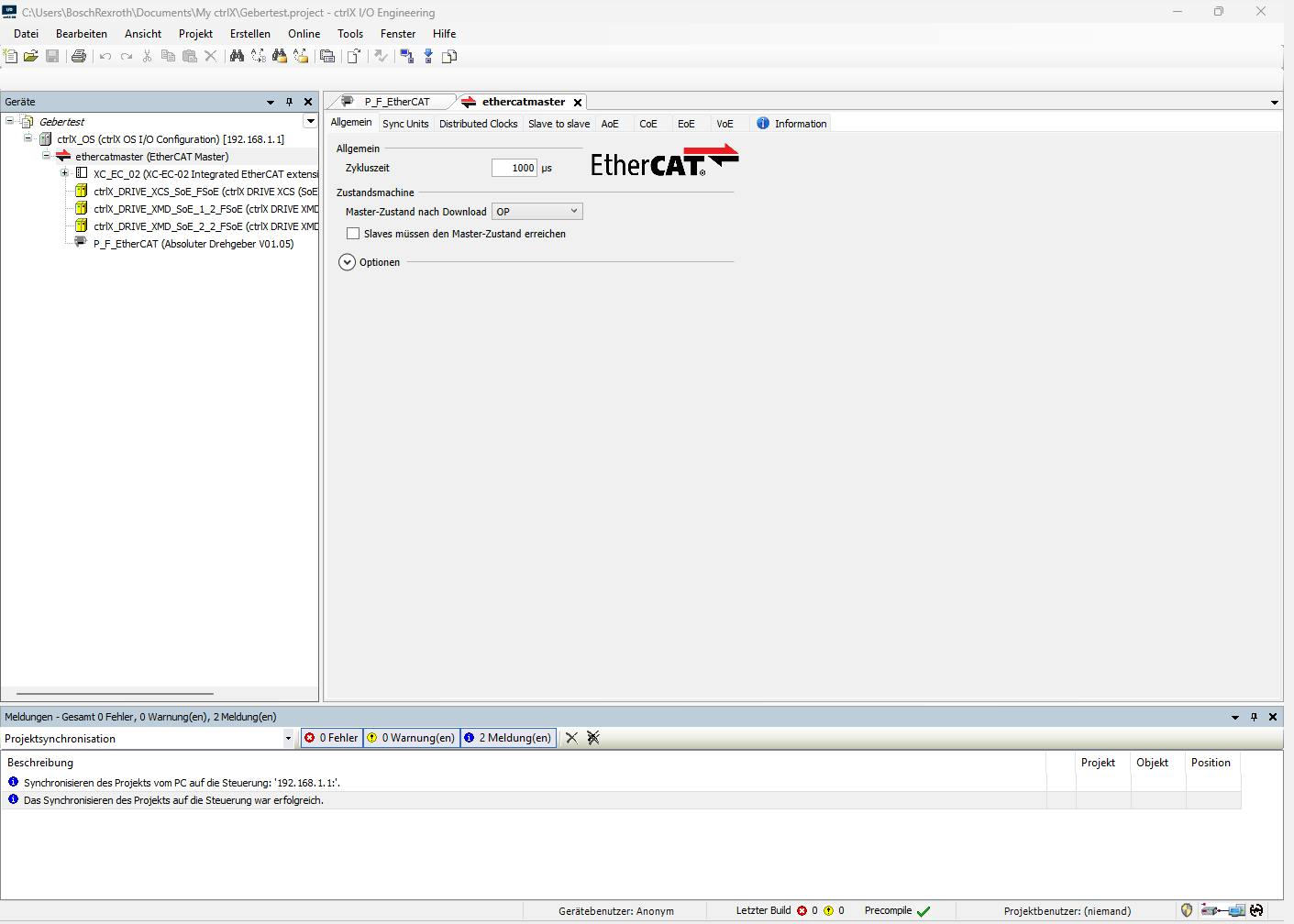

ctrlX I/O configuration:

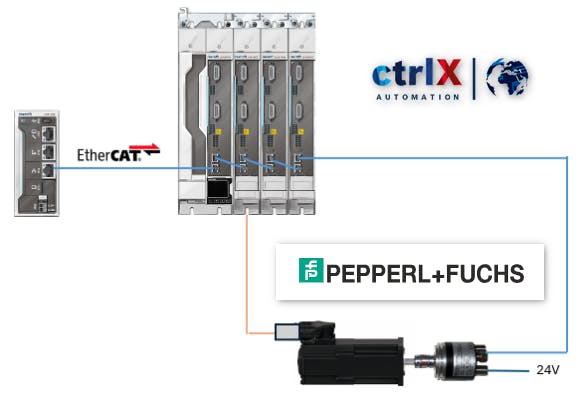

One axis and one encoder axis were created for the measurement setup:

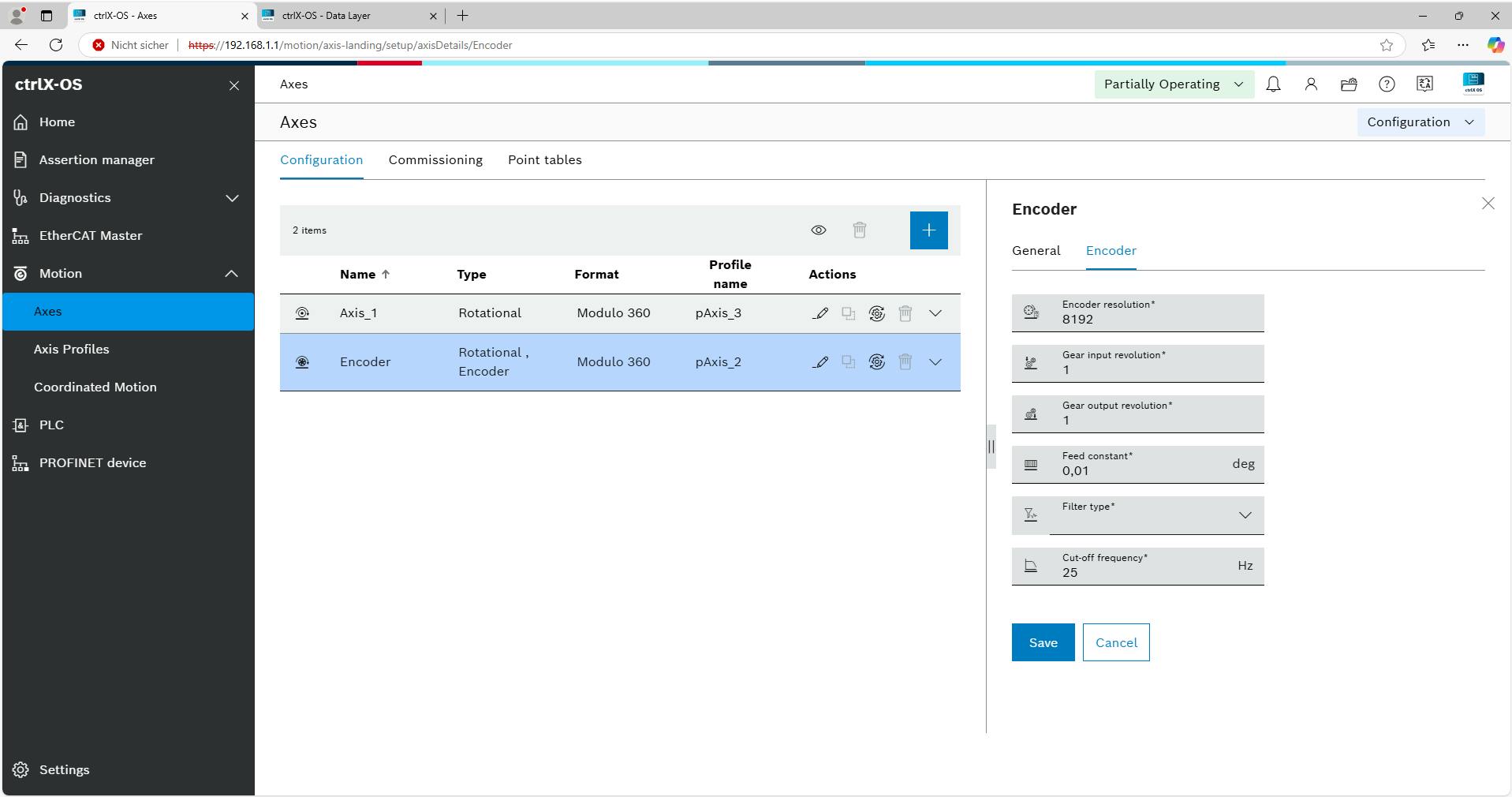

Configuration from the Encoder Axis:
The Filter Time is in ctrlX Version 3V6 only possible to set in the DataLayer:

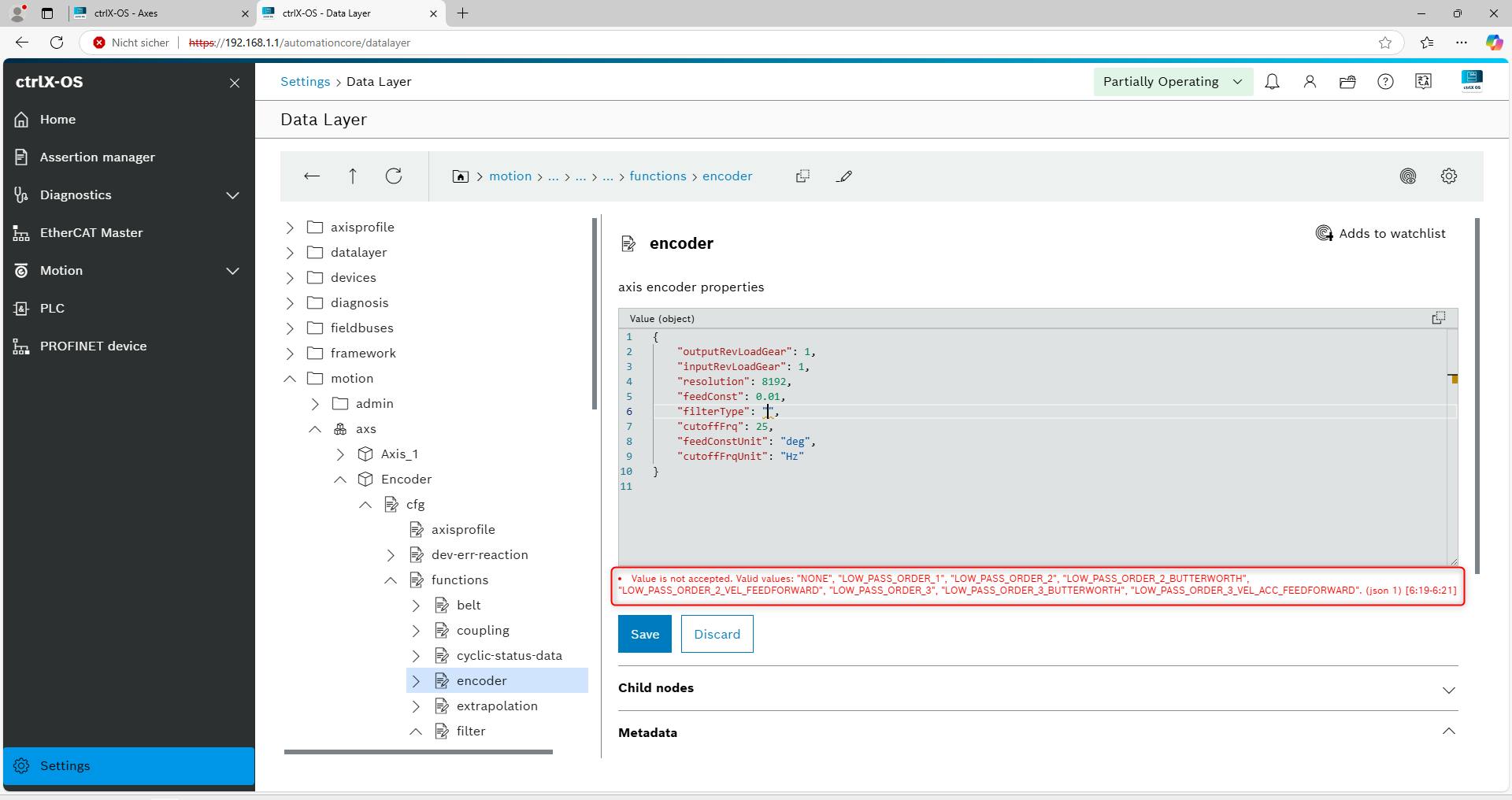

If you want to set a Filter, delate "NONE"

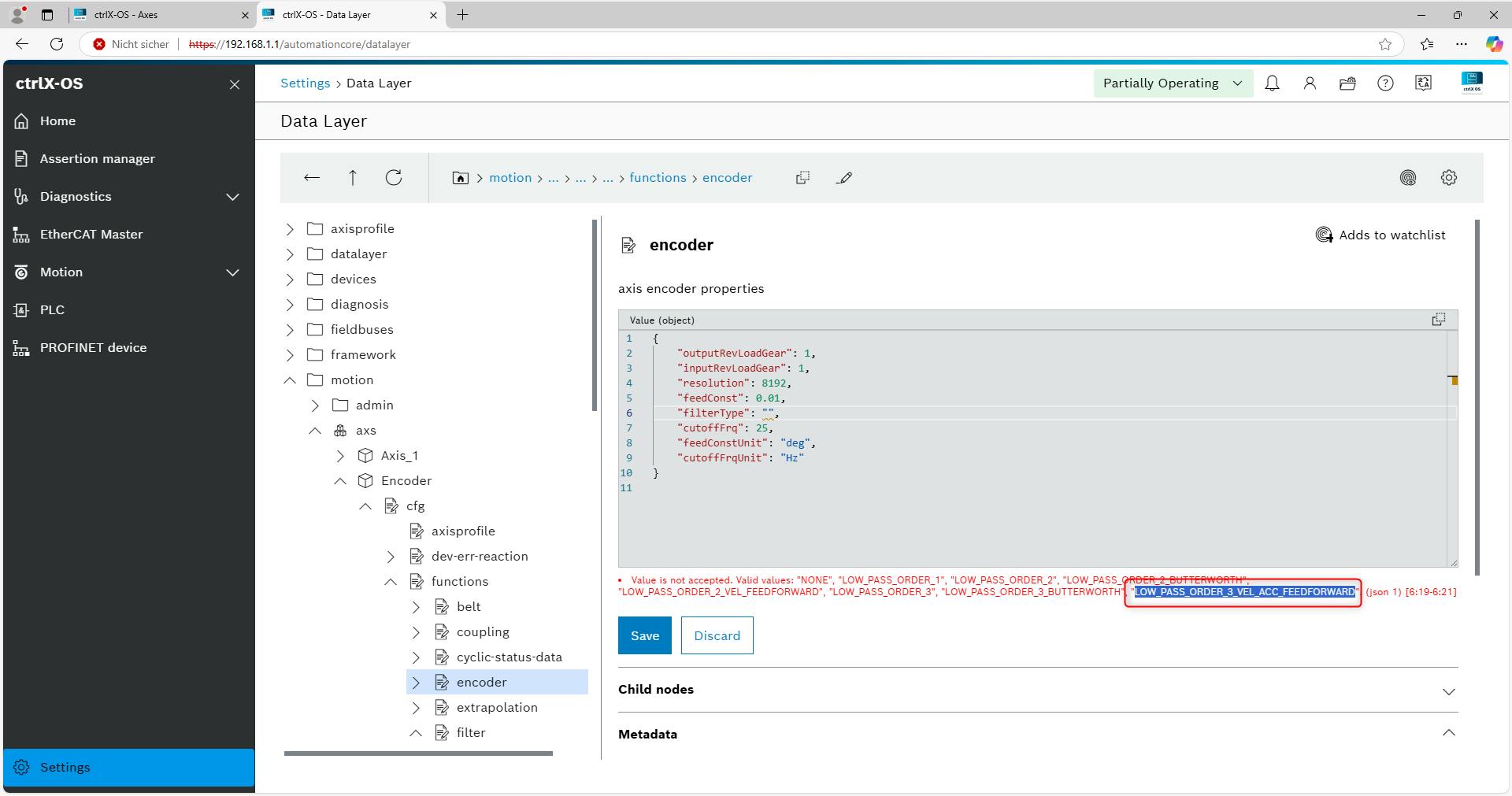

Then, you can see the Filter, that you can set:
You can copy the Filter from the string:

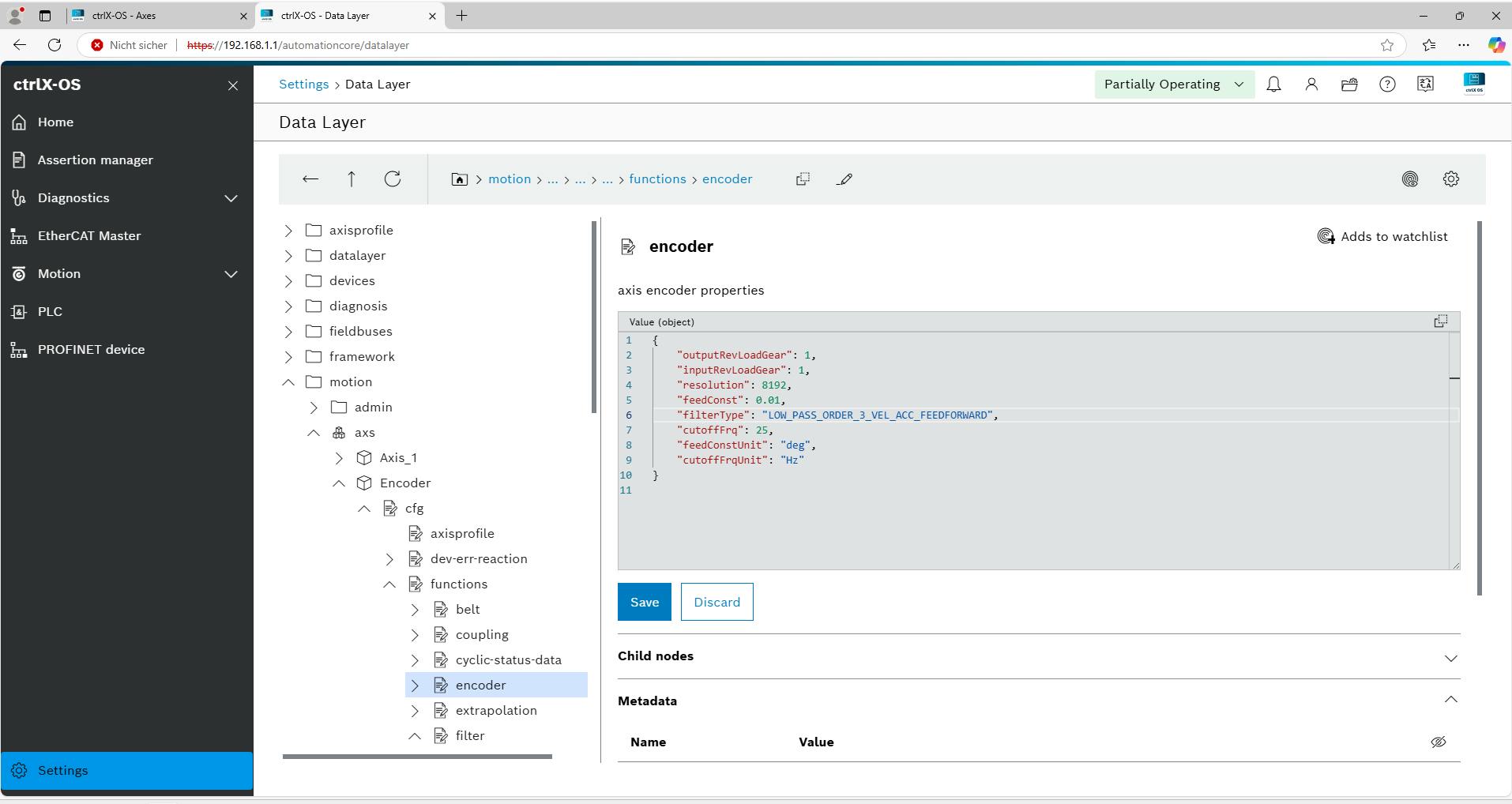

Paste the string in to the Filter Type:

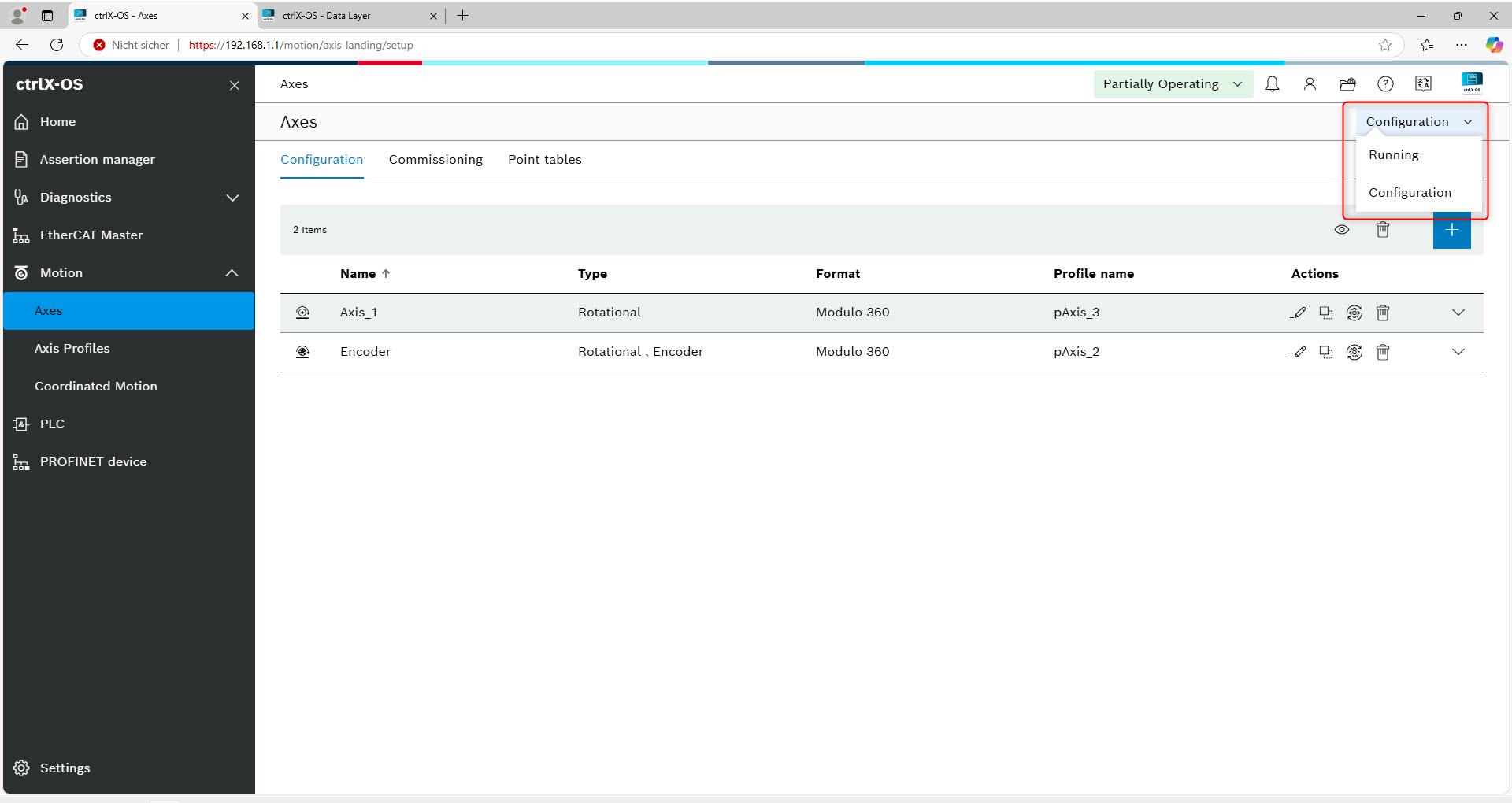

After a switch from "Configuration" to "Running", the Filter is active:

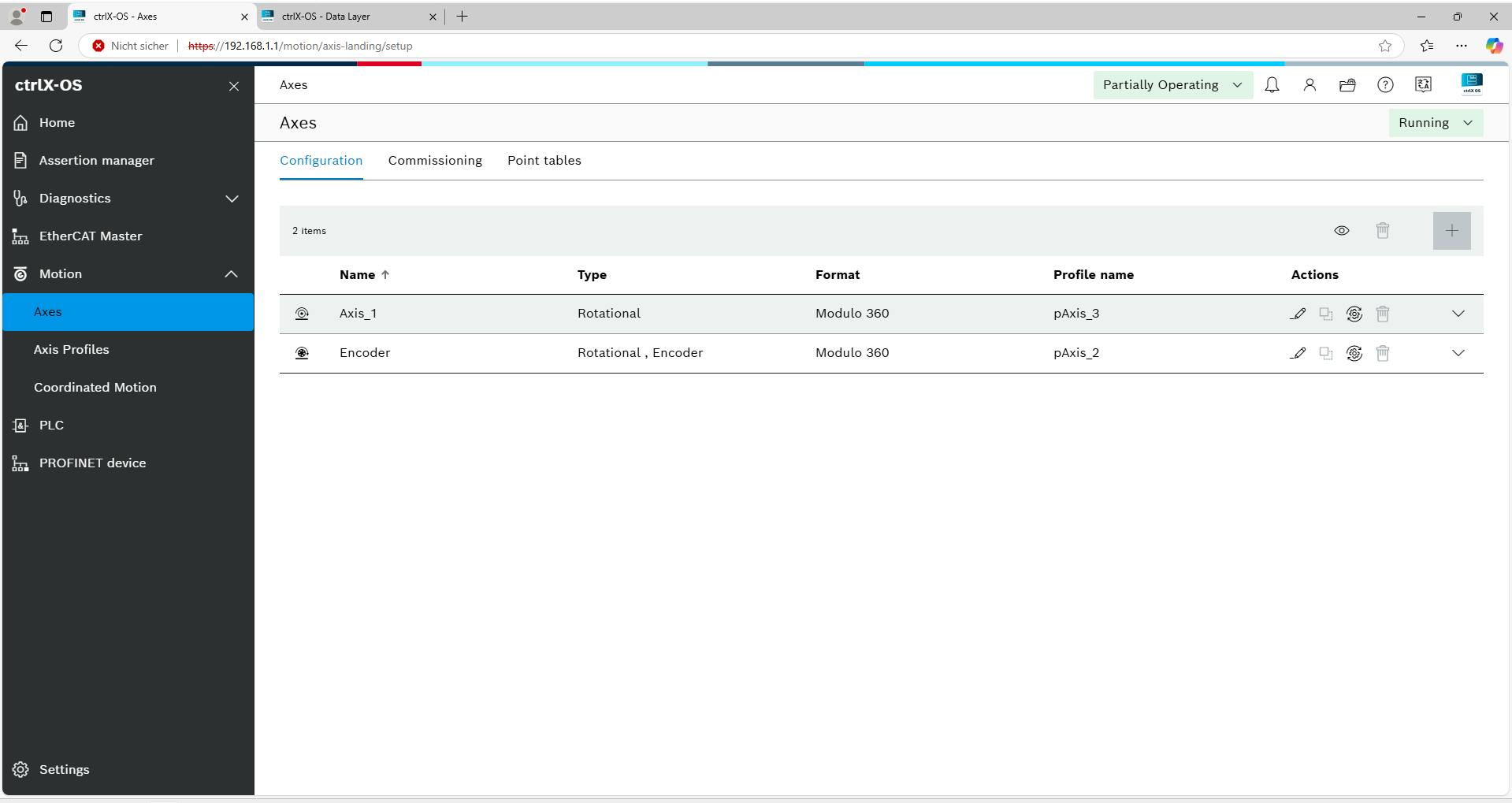

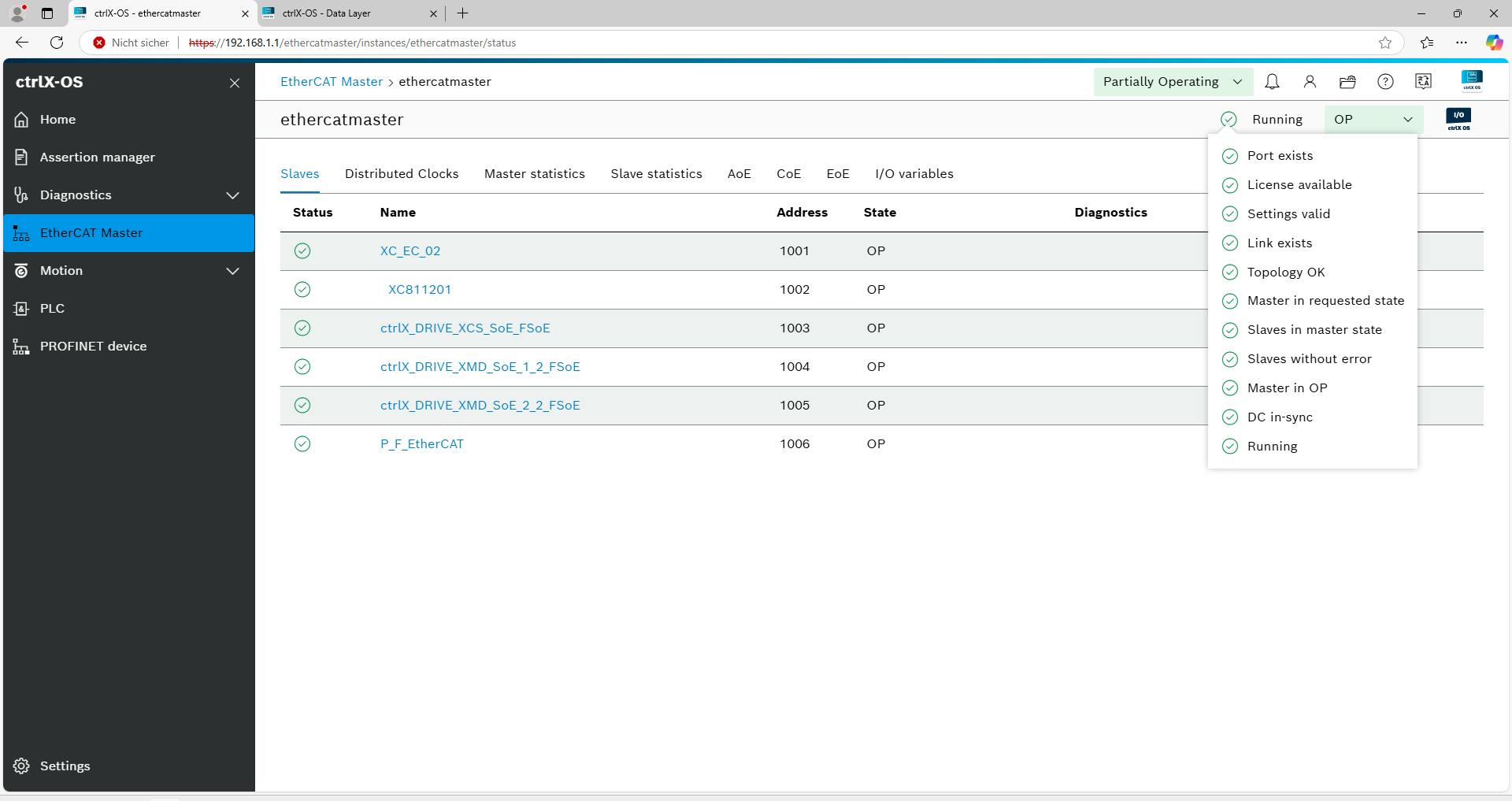

After the successful setting, the system is in RUN mode:
For the Filter Test, we use the Trace from the PLC:

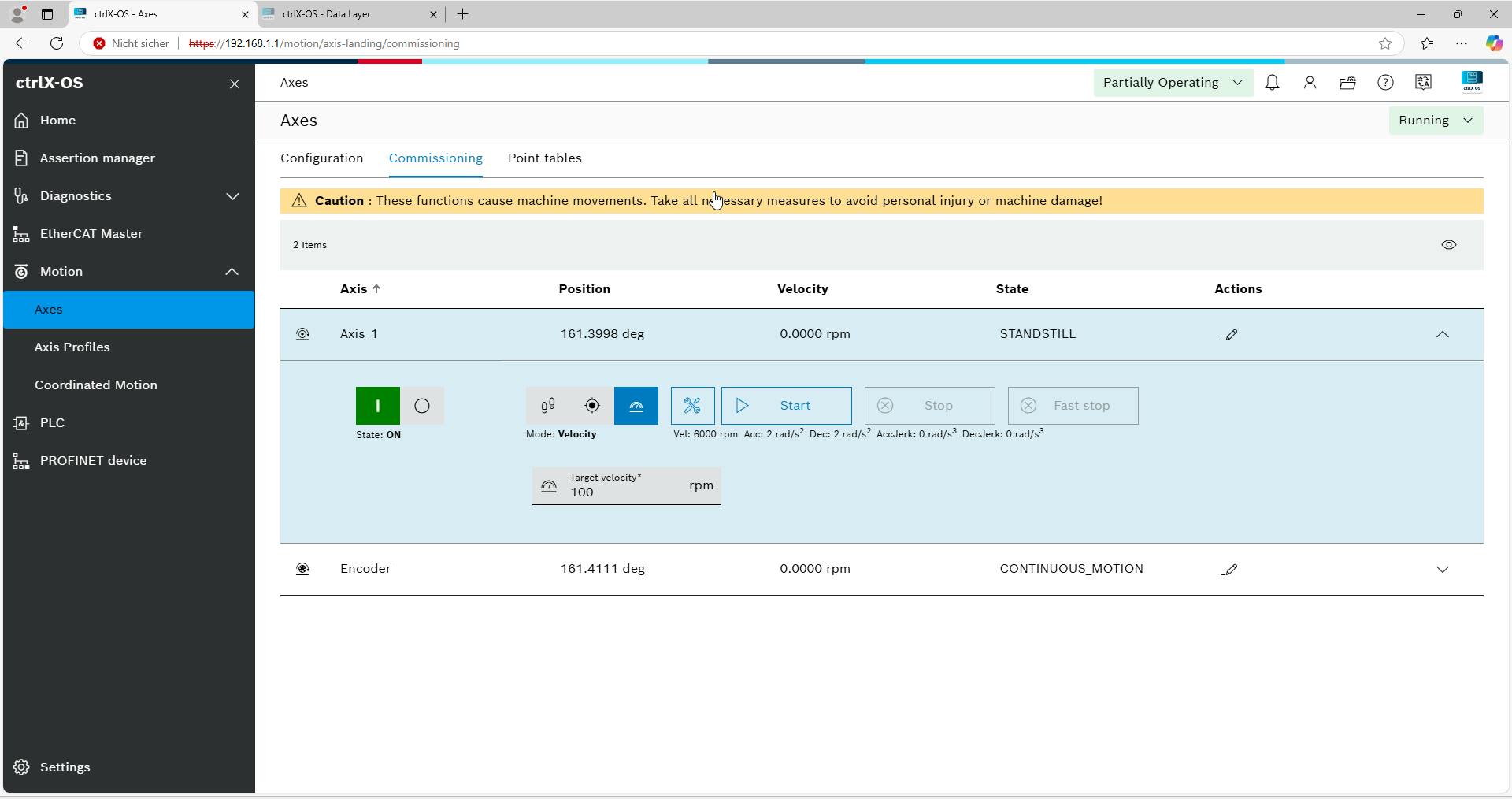

Test with ACC/DEC 2 rad/s² form 0 rpm -100 rpm - 0 rpm
The position difference between the motor encoder and the encoder is approx. 0.4 Deg:

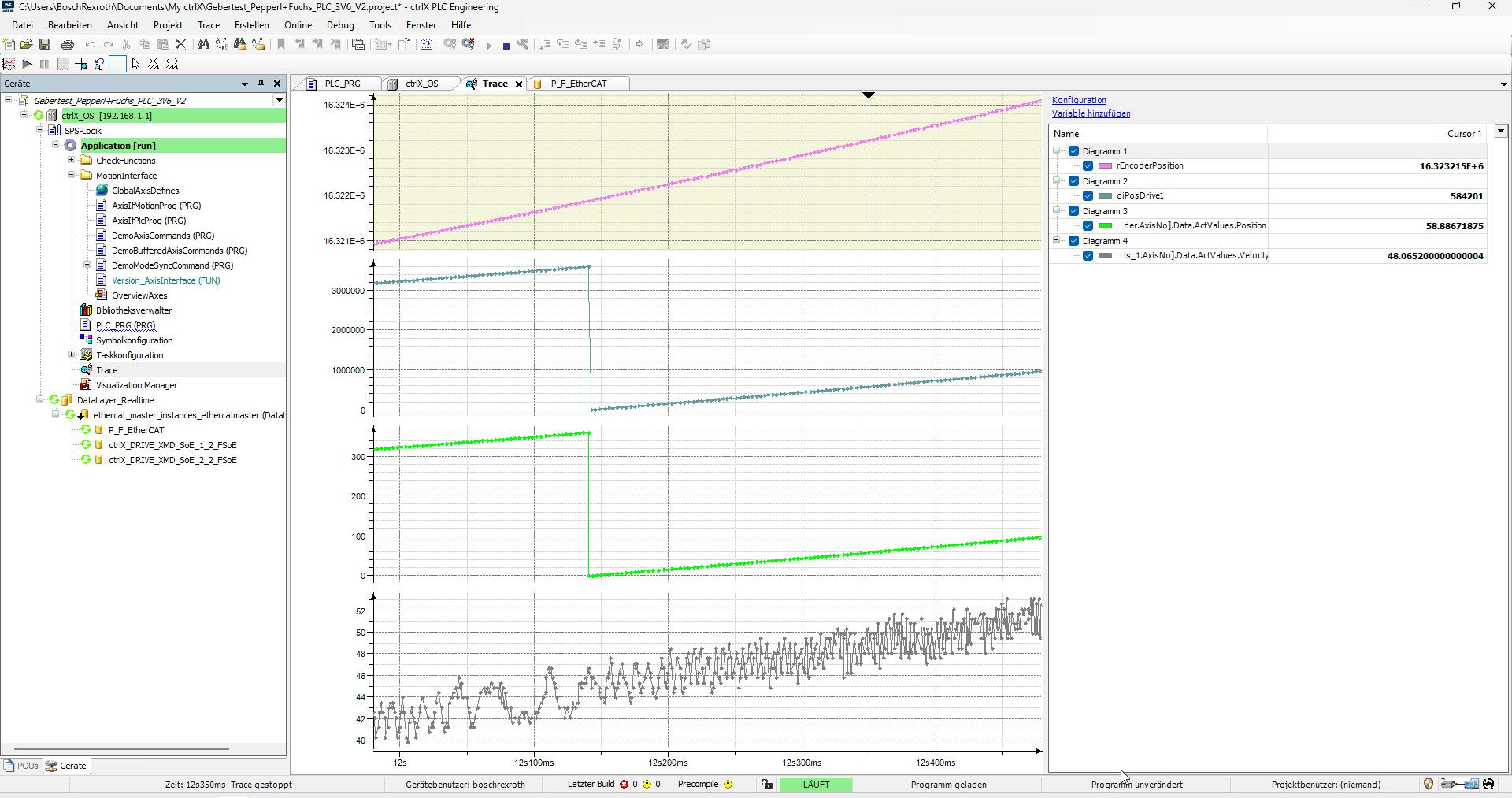

Acceleration:

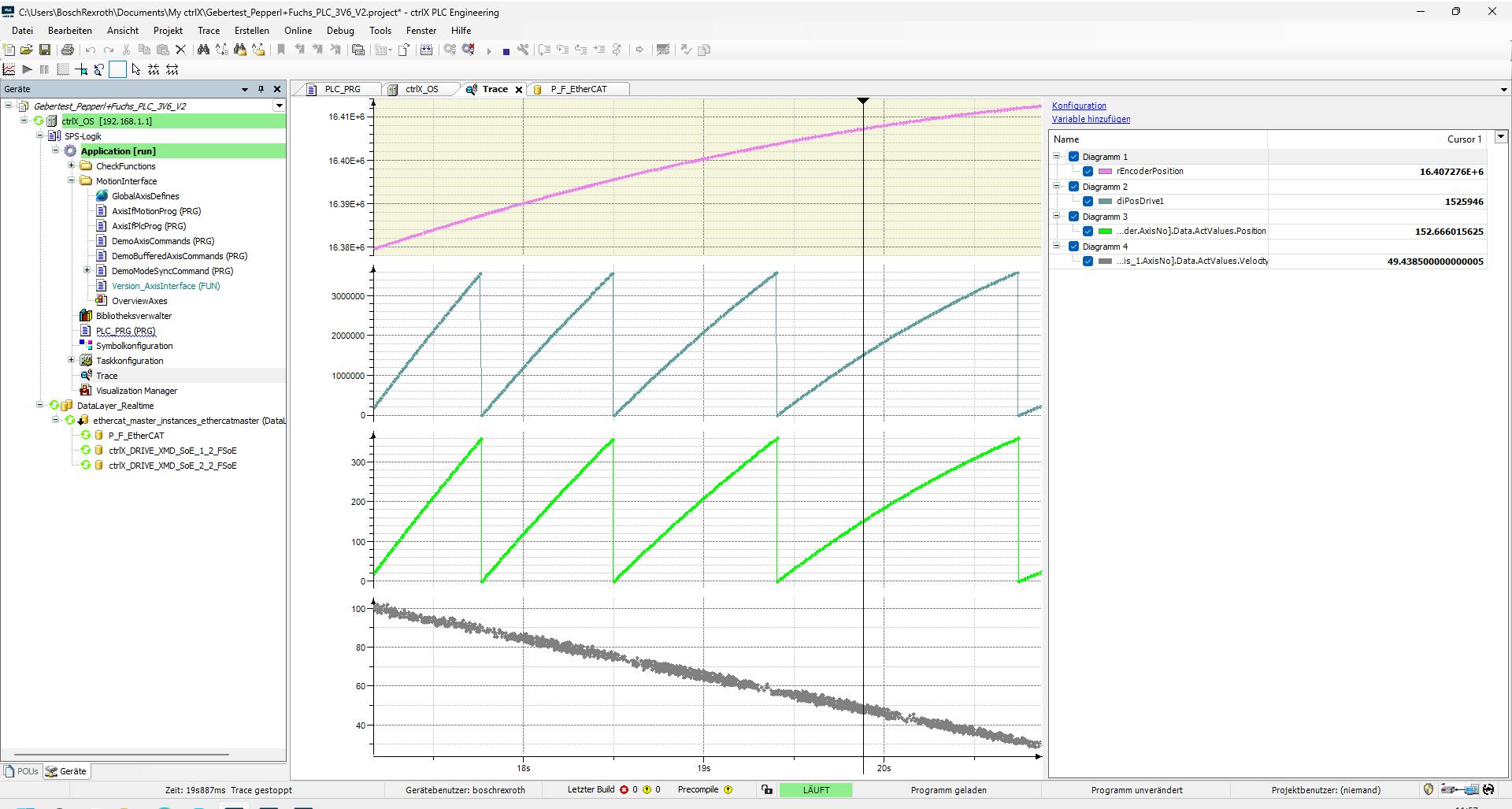

Deceleration:
