How to connect ctrlX CORE to Synapticon Drives

Requirements

The following prerequesites are necessary to start the procedure:

Install ctrlX WORKS in its latest version (including ctrlX I/O Engineering).
Local Network with IPv4 in the same range as the ctrlX CORE
- For connecting to the ctrlX CORE please check the network settings of your PC. The IP address needs to be in the same subnet, e.g. set IP configuration to manual, IP to "192.168.1.42", subnet mask to "255.255.255.0".
ESI File (EtherCAT Slave Information) for Synapticon drive needs to be downloaded (see below).

Connecting PC to ctrlX CORE

A quick start guide can be found here: Quick start guide ctrlX CORE

Setting up ctrlX CORE Communication

In these steps, the communication between ctrlX CORE (Master) and the Synapticon drive will be established:

Open the ctrlX CORE web interface by browsing the IP address of the master. Default IP address: 192.168.1.1.
Set up the Master EtherCAT Communication by accessing the EtherCat Master menu.

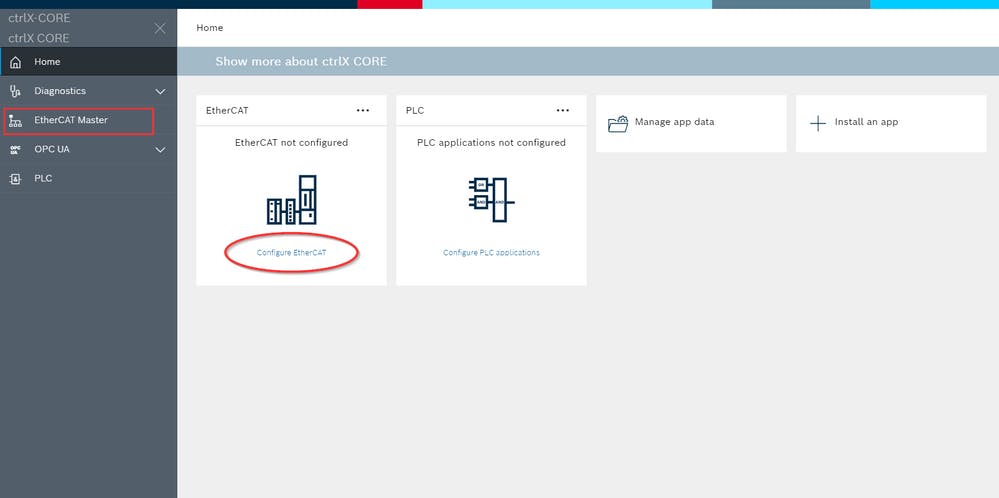

Access Ether CAT Master menu
Press "Add Ether CAT Master".

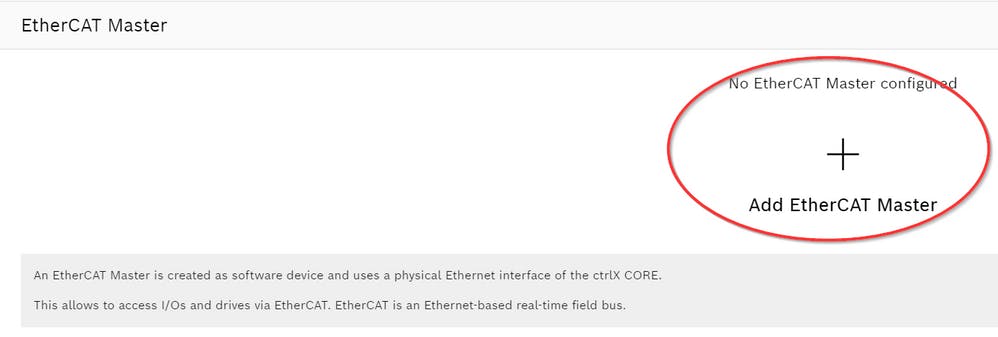

Add Ether CAT Master
Name it and choose the port XF50 (EtherCAT - port) from the dropdown menu.

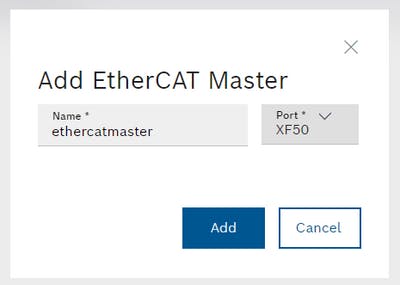

Choose Port

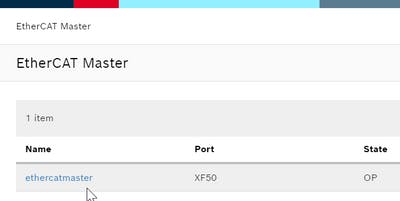

After adding it, please open it by clicking on the newly created item (ethercatmaster here).

Ether CAT Master

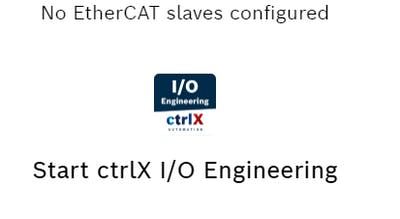

To add EtherCAT slaves, start the ctrlX I/O Engineering.

Start IO Engineering

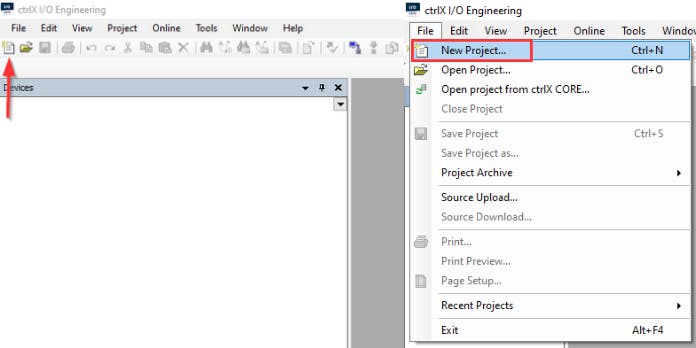

After opening the I/O Engineering window, build a new project by selecting "New Project" or go to the file menu and choose the New Project option.

ctrlX_Engineering

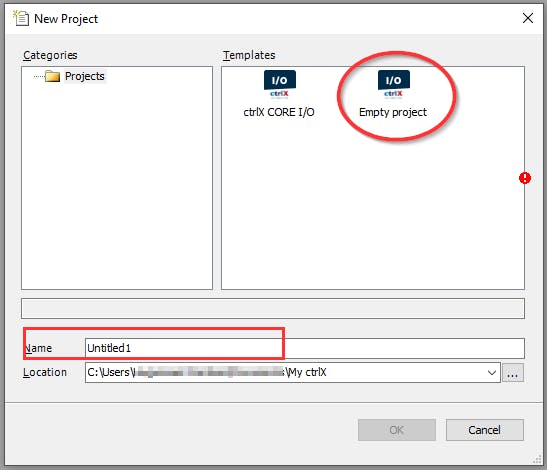

Choose "Empty project" and add a name.

Select empty project

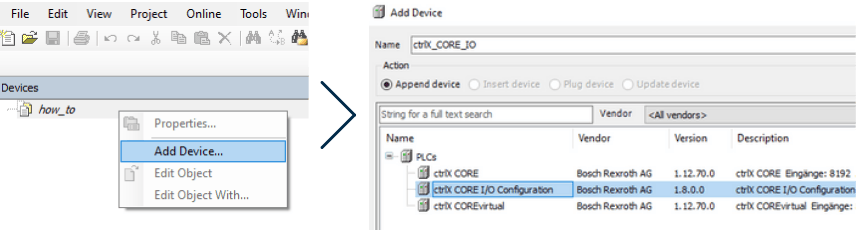

Add a PLC device by right-clicking on the project and chooe the Add Device option, then select the ctrlX_CORE_IO (ctrlX CORE I/O Configuration) item.

Add Device

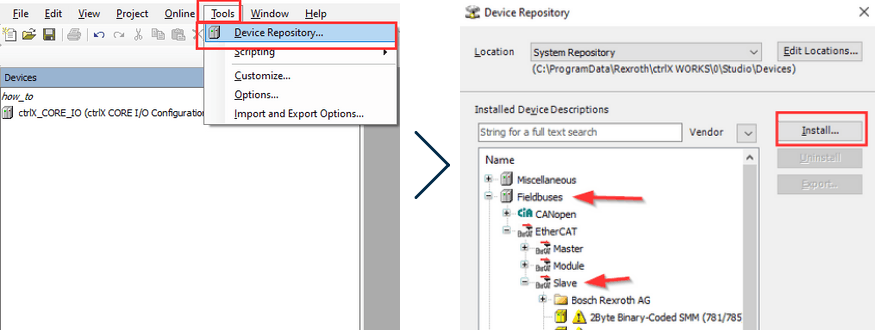

Add the Synapticon ESI file to the repository. Go to the Tool menu, option Device Repository..., under Fieldbus tree, select the EtherCAT Slave. Press the Install button, and select the desired ESI file.

Device Repository
In case there is no Synapticon ESI file, there are two ways to obtain the ESI file:

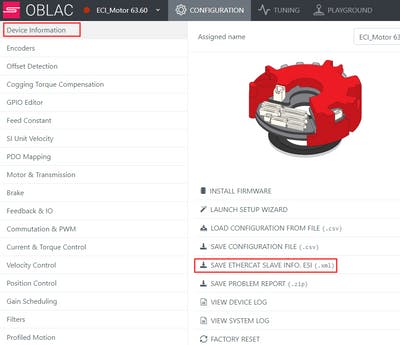

1. Download it directly from the drive with Synapticon OBLAC software (if available). Select the Device Information menu, and press SAVE ETHERCAT SLAVE INFO.ESI (.xml)

  Save Ethercat slave info
2. Request the ESI file from Synapticon Technical Support ([email protected]) with mentioning the drive you have and need the ESI file for.
Add a Fieldbus device by right-clicking the PLC and choose the Add Device option. Then select the EtherCAT Master (ctrlX CORE I/O Configuration) item.

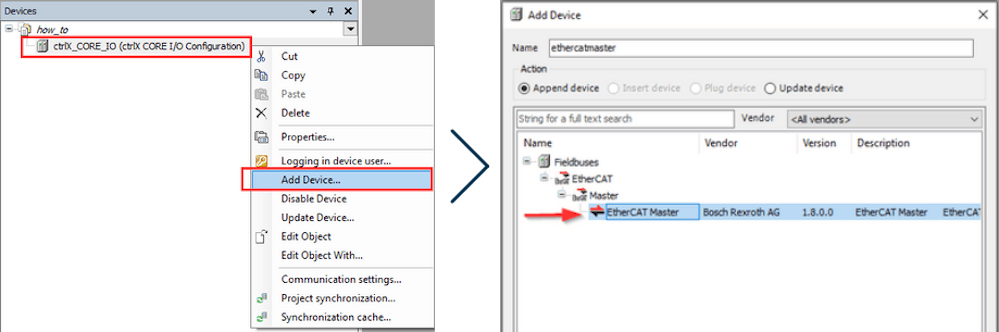

Select EtherCAT Master
Adding the Slave (Synapticon Drive).
Connect the Synapticon Drive to the ctrlX CORE through the XF50 port physically, and power on the drive. Add the Slave by right-clicking on the Fieldbus and choosing the Scan Device option. The drives will appear on Control Side. Move them to Project Side with the buttons and press Apply.
Save the project.

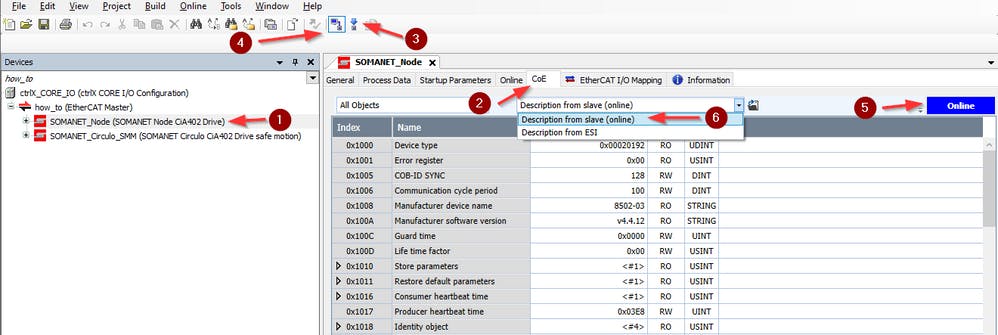

To see the real-time data from the slave and the PDO/SDO, select the slave on the Device (1) Menu, open the CoE tab (2), press Transfer Fieldbus Configuration (3), press Show Online Data (4), observe the Online status will appear (5), and select Description from slave (6). The list of the PDO/SDO will be loaded with the actual values.

See real-time data

Now, the drive data is accessible through and in the ctrlX Datalayer of the ctrlX CORE.
