ctrlX Safety Engineering remote access to SAFEX-C1x via EoE

This is a short step by step description for ctrlX SAFETY engineering remote access via EoE (Ethernet over Ethercat). Step 10 is just for member of the BOSCH Group and can be skipped by customer.

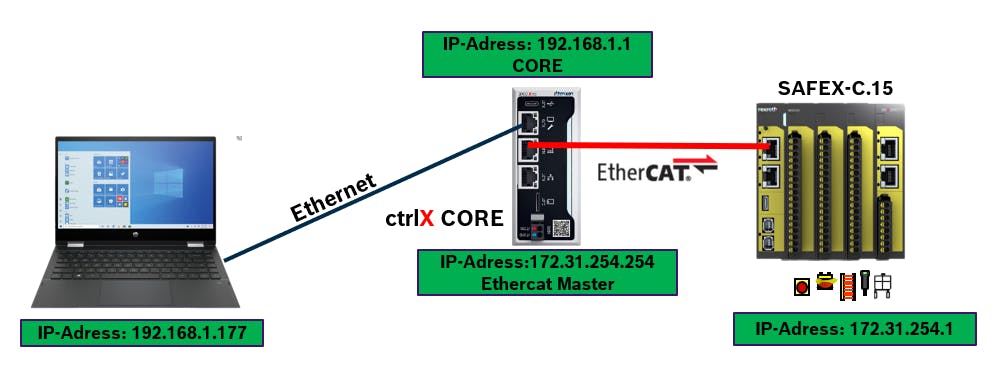

Topology

Step 1: Check IP adress of ctrlX CORE

Step 2: Activate Virtual Ethernet port of the Ethercat master in EoE tab

Activate the Ethernet port of the EtherCAT-Master

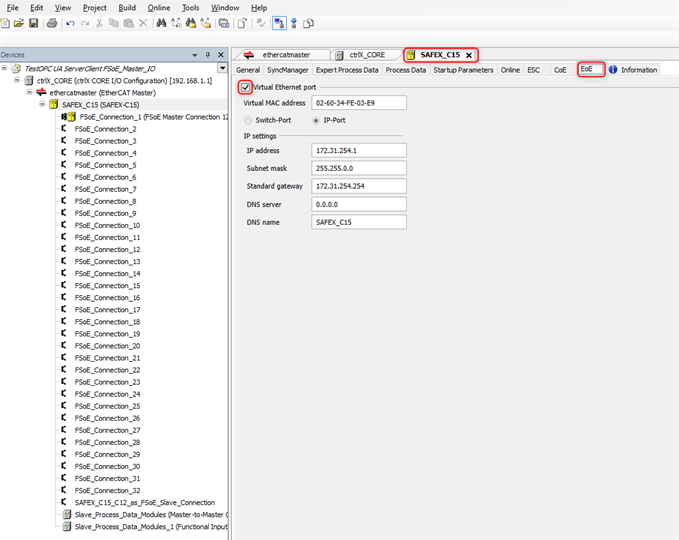

Step 3: Activate Virtual Ethernet port of the SAFEX in EoE tab

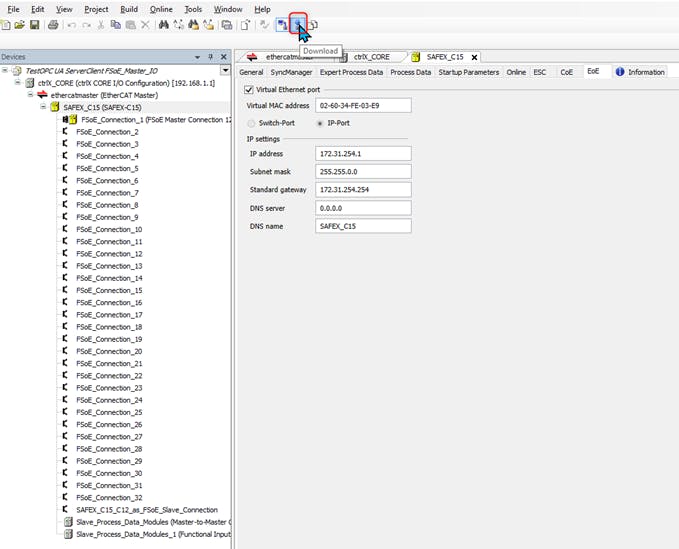

Step 4: Download the configuration into ctrlX CORE

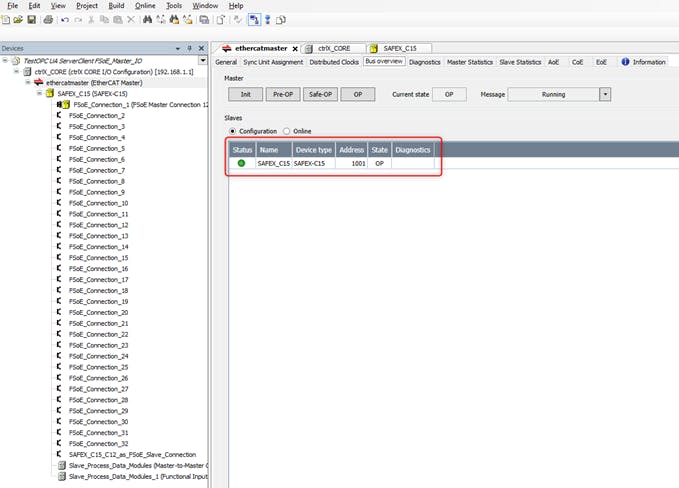

Step 5: Check the Bus overview, the State must be OP

Step 6: Enable IP forwarding for EoE0

Step 7: Enable IP forwarding of XF10

Step 8: Check your Network adapter

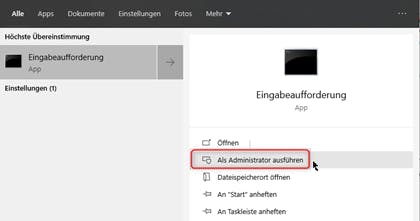

Step 9: Start the cmd as admin

Step 10: Disable timestamps

This is necessary in Bosch-Network:

netsh int tcp set global timestamps=disabled

reverse

netsh int tcp set global timestamps=enabled

Step 11: Add a route

route add 172.31.254.0 MASK 255.255.255.0 192.168.1.1

or for a permanent route

route add -p 172.31.254.0 MASK 255.255.255.0 192.168.1.1

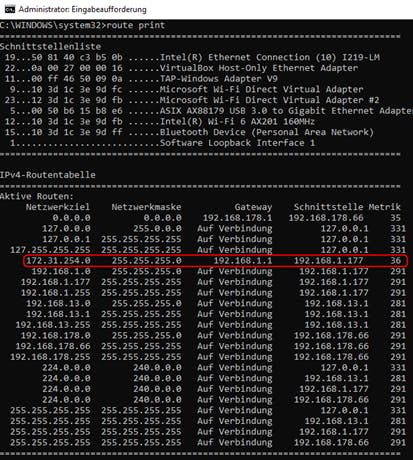

Step 12 Check the route with route print

Step 13: Ping the IP adress of the SAFEX

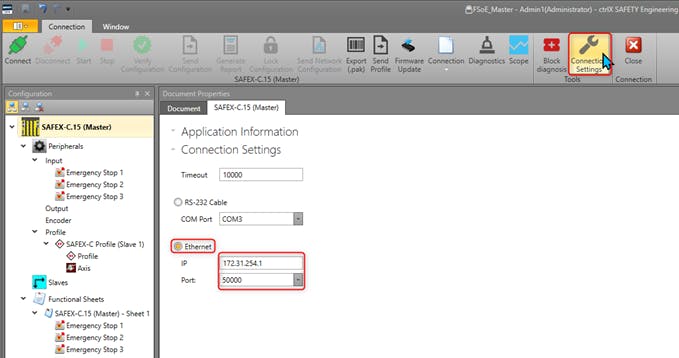

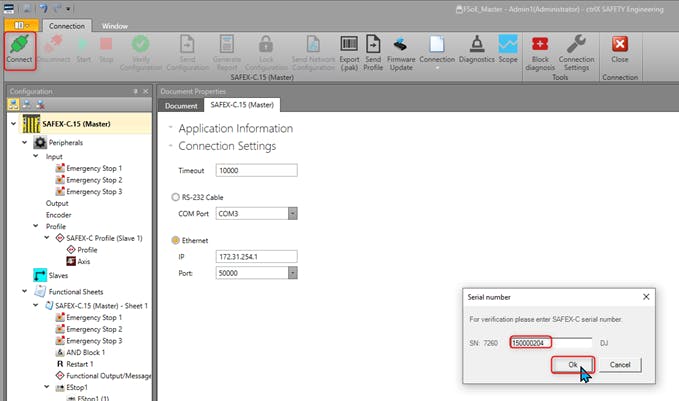

Step 14: Activate Ethernet in Connection Settings of ctrlX SAFETY Engineering

Fullfill the IP adress 172.31.254.1
