ctrlX DRIVE with Siemens TIA-Portal™ CPU SIMATIC S7-1200 or S7-1500

Connection of ctrlX DRIVE to Siemens SIMATIC controllers like SIMATIC S7-1200 or S7-1500.

We offer function blocks to drive controlled positioning or parameter access from a Siemens SIMATIC controller over PROFINET to a ctrlX DRIVE or Power Supply.

The function blocks are provided with an example program, parameter file, device description file and documentation to get it quickly running.

e.g.

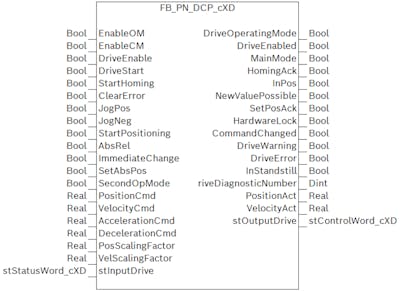

• FB_TIA_PN_DCP_cXD function block to drive controlled positioning functionality



• FB_PowerSupply function block to control and monitor a power supply



• parameter access via SIP to read and write ctrlX DRIVE parameters, backup parameters

Please note that Siemens TIA-Portal™ itself is not a Bosch Rexroth AG product and is a registered trademark of Siemens.
