ctrlX DRIVE SafeMotion PROFIsafe on PROFINET Shared Devices, with Siemens PLC´s

Introduction

This how-to gives you some information about the possibilities of the actual supported functions of ctrlX DRIVE with PROFIsafe on PROFINET.

General

Information

• Support of PROFIsafe Version 2.6
• Address type 1 and 2
• PROFIsafe Shared Device

Requirements

• Runtime FWA-XD1-AXS-V-0402xxx onwards
• SMO, SafeMotion Speed or higher

Address type 1 and 2

• Type 1: Only the PROFIsafe slave address is checked

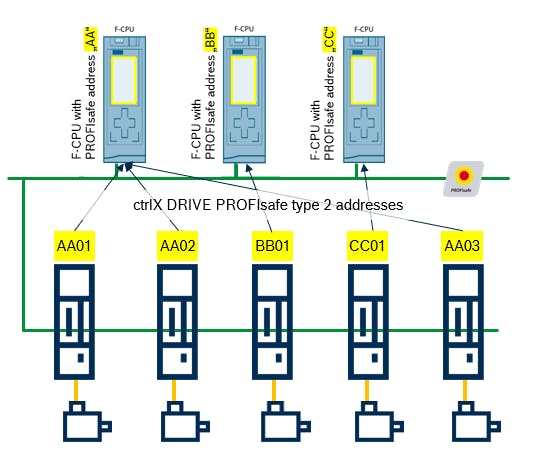

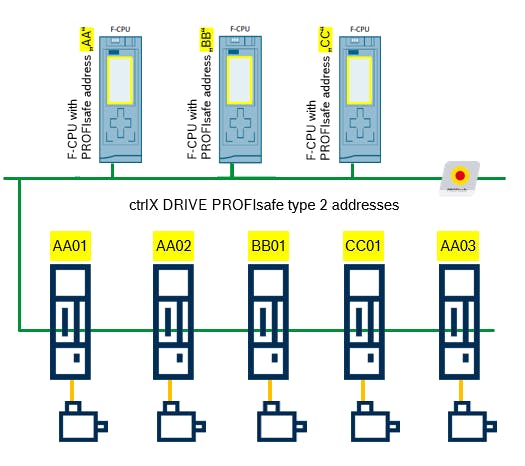

• Type 2: Combination of PROFIsafe master address and PROFIsafe slave address for topologies with more than one PROFIsafe master

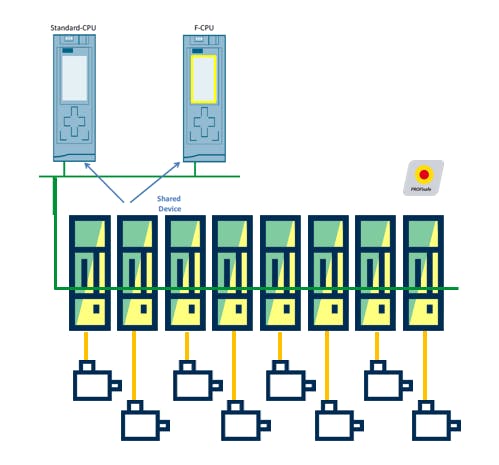

PROFIsafe shared device

• for PROFINET topologies with difference master hardware for motion control and PROFIsafe

Commissioning Address Type

• Address Type 1 and 2

Commissioning Shared Device

Siemens TIA (version 17) Shared CPU only IO´s (315)

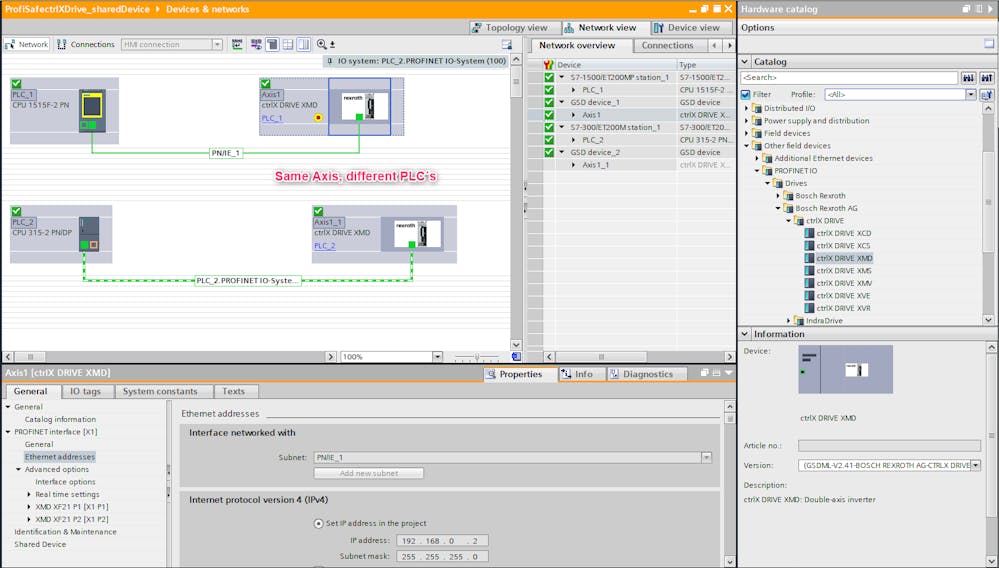

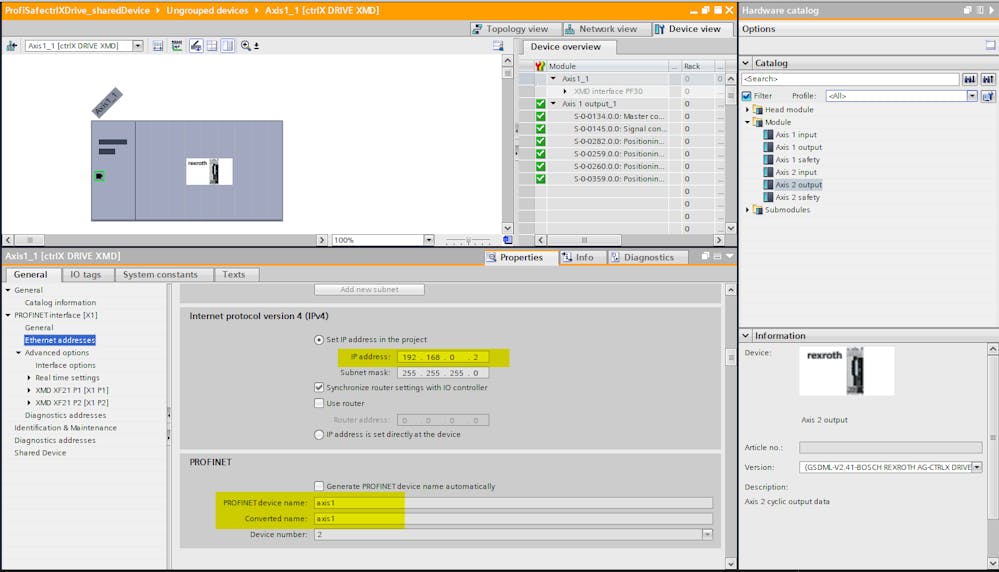

• PROFINET configuration

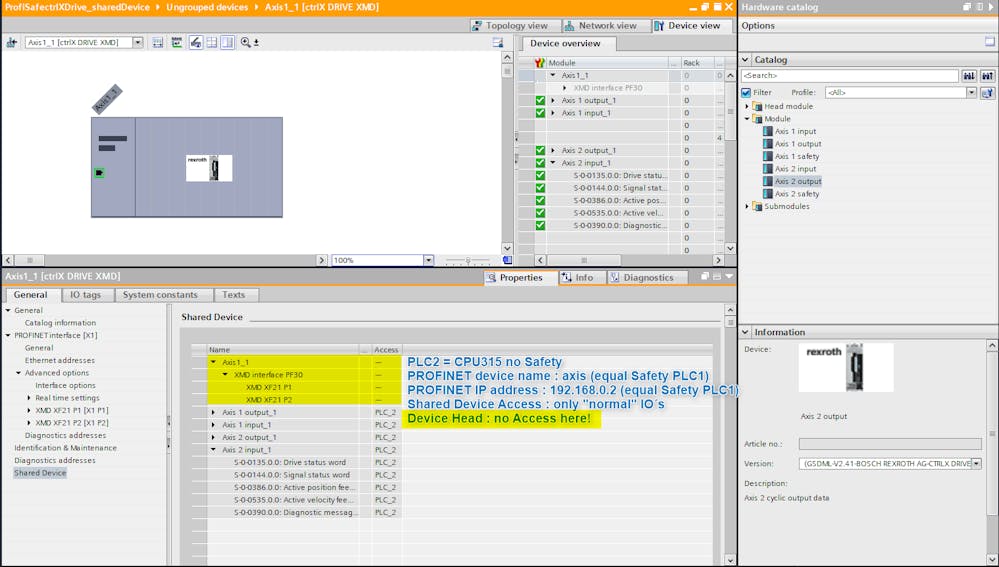

• Shared Device configuration only IO´s (CPU 315)

Siemens TIA (version 17) Shared CPU F-CPU PROFISafe

• PROFINET configuration

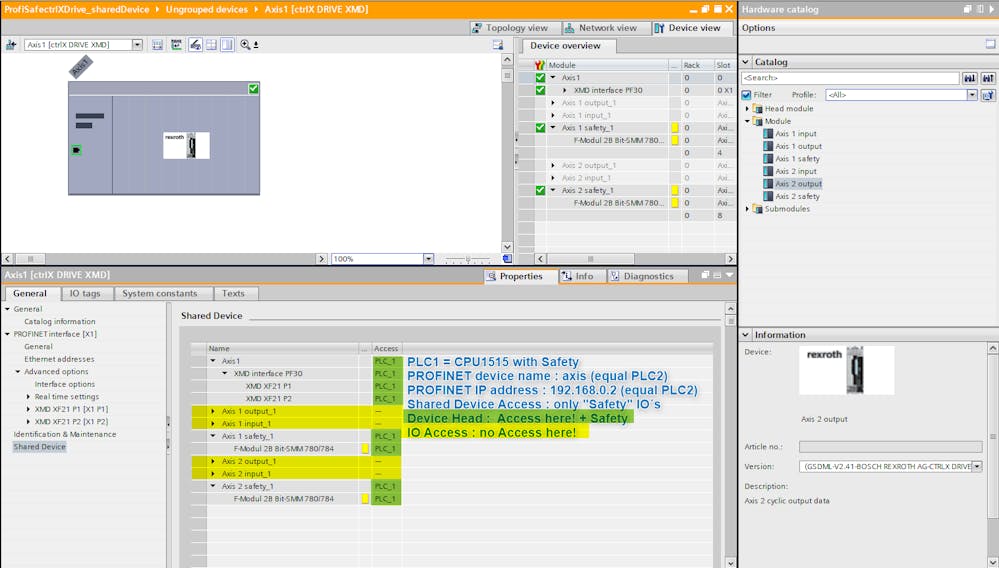

• Shared Device configuration PROFISafe on PROFINET (CPU-F1515)

• Overview PROFINET Network
