Automated Test Strategy for ctrlX PLC Applications

• Overview
• CODESYS Test Manager
• Test Script with dialog windows

Overview

This blog will show you how to test your ctrlX PLC Applications using the CODESYS Test Manager.

CODESYS Test Manager

Testing the PLC program code itself. Possibility to create automated tests without any programing-skills and with the use of dialog windows. Effortless integration into PLC Engineering Tool. But needs a special license.

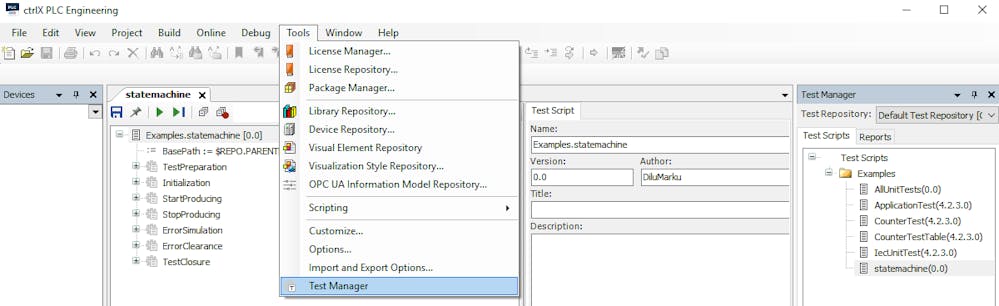

Download the Test Manager and install the package using the package manager of ctrlX PLC Engineering. In order to activate the license for the Test Manager you have to reenable the CodeSys license manager in PLC Engineering or use the online license activator of CodeSys. After that you can open the test manager within PLC Engineering.

Test Script with dialog windows

1. Prepare a PLC project you want to test or download the example project, by clicking here. The example project implements a simple statemachine.

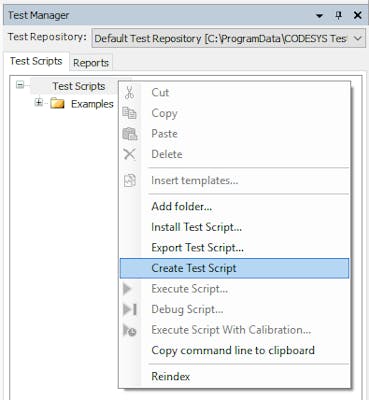

2. Create a new test script for the PLC project and give it a name.

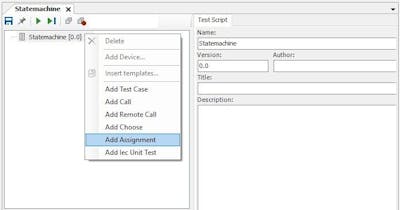

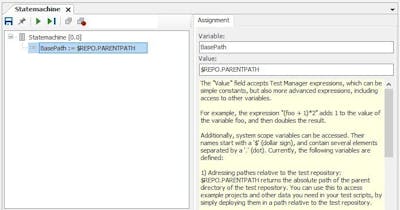

3. Set a base path variable, otherwise the test manager will throw an error if you try to load a project from the disk.






4. Add a test case, where the preparations for the actual tests can be done. Add actions to close an open project, load the project you want to test, set the correct application, log into the ctrlX CORE and start the application.

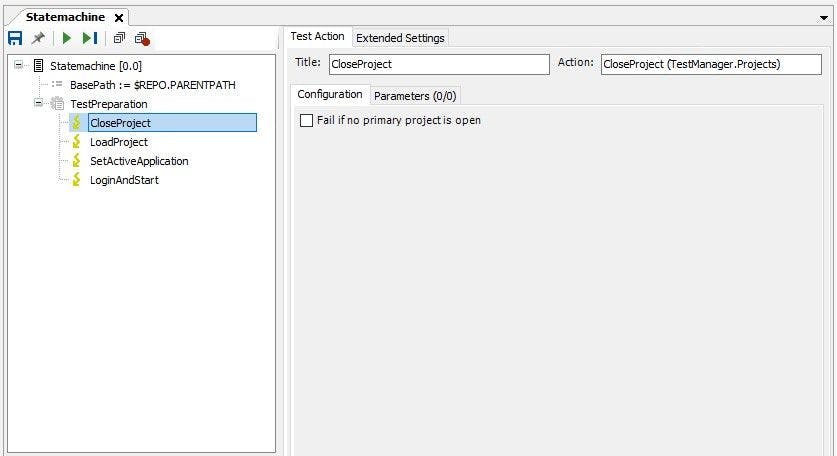

   Add Action: Close Project

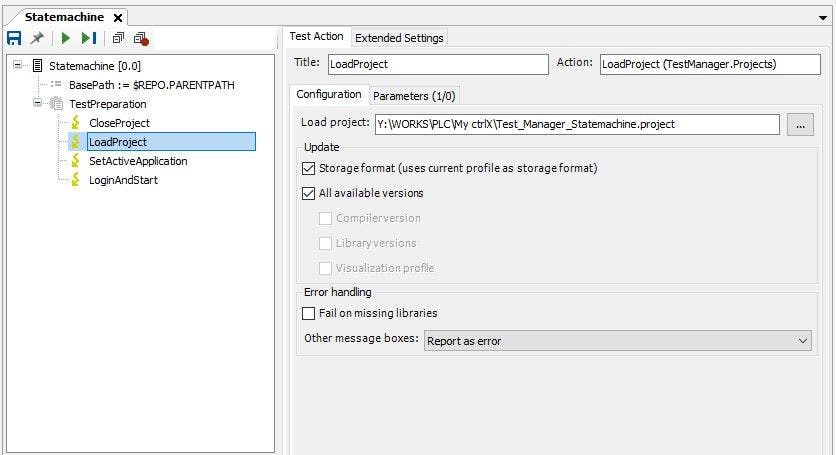

   Add Action: Load Project

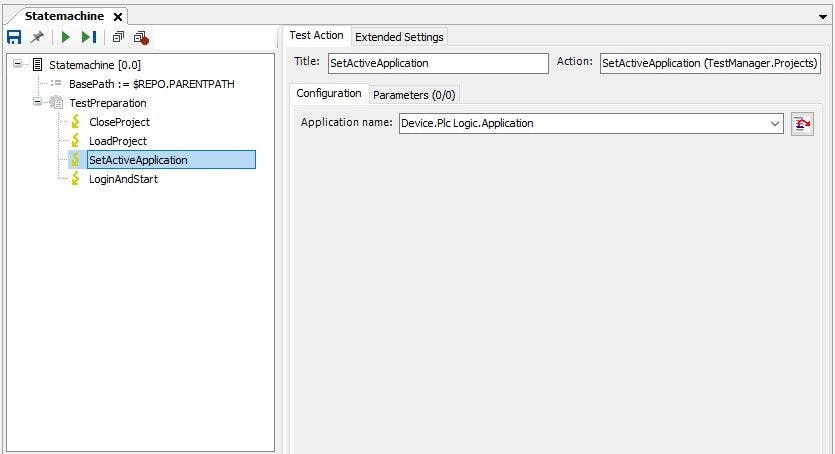

   Add Action: Set Application

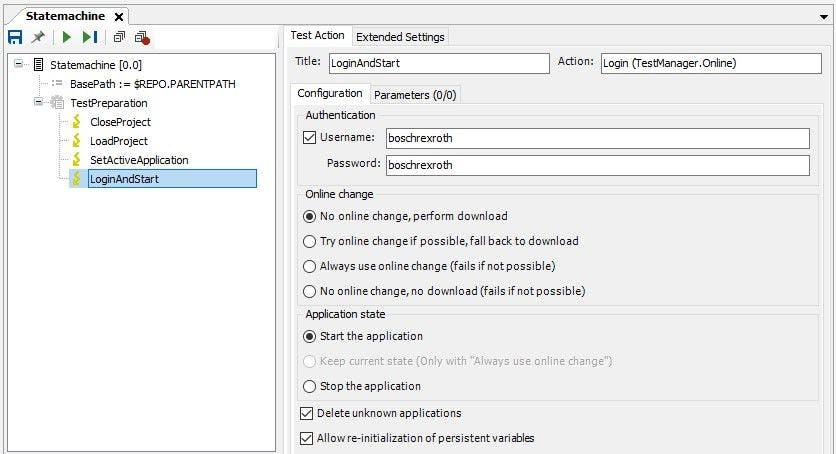

   Add Action: Login and Start
5. Actual testing of the PLC application: For each test case, you can use the corresponding actions to test the application.  In this example, each state of the statemachine is tested. The only actions used are CompareVariable and WriteVariable.




   Action: CompareVariable - check initial state

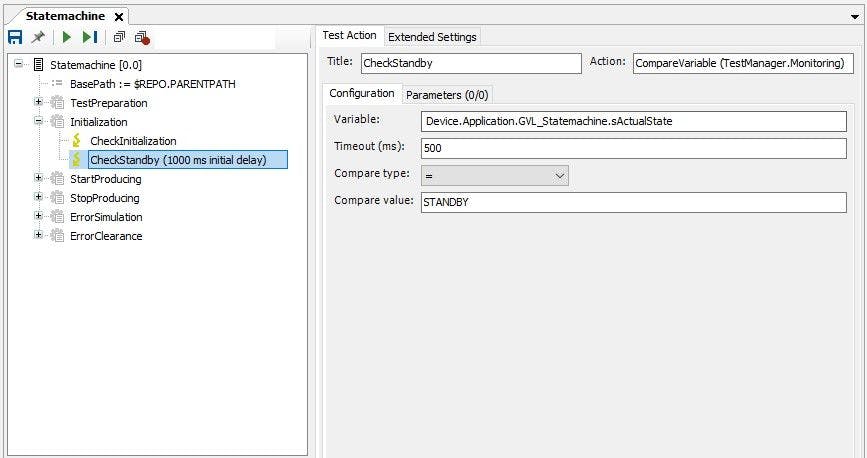

   Action: CompareVariable - check state after initialization is standby

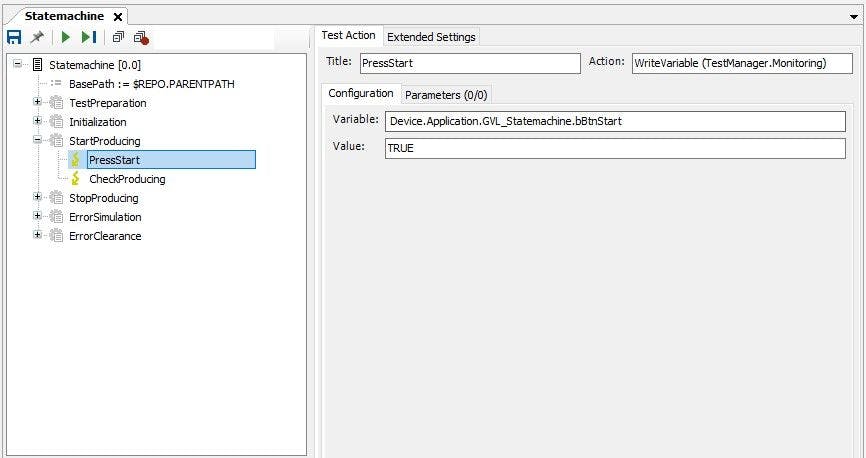

   Action: WriteVariable - creating a raising edge

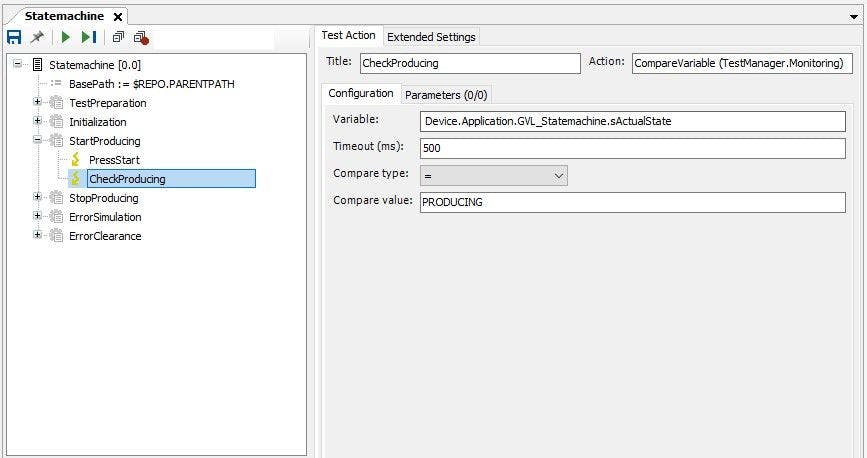

   Action: CompareVariable - state changed to producing



   Action: WriteVariable - stop button

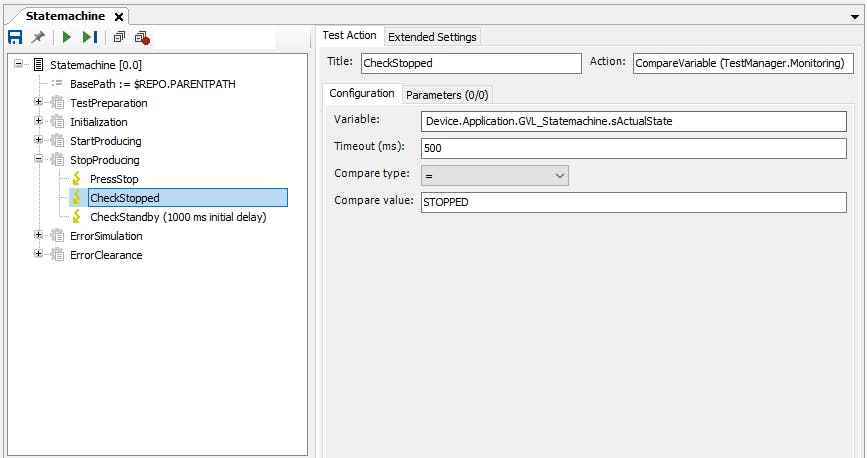

   Action: CompareVariable - check state is stopped

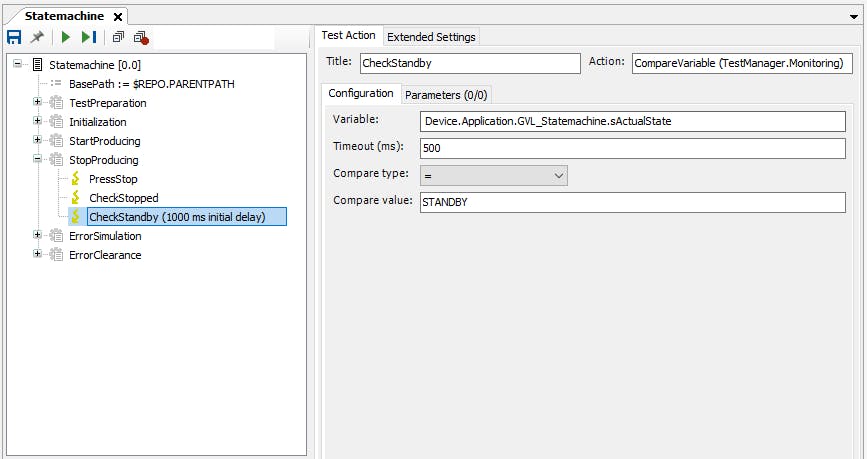

   Action: CompareVariable - check state is standby

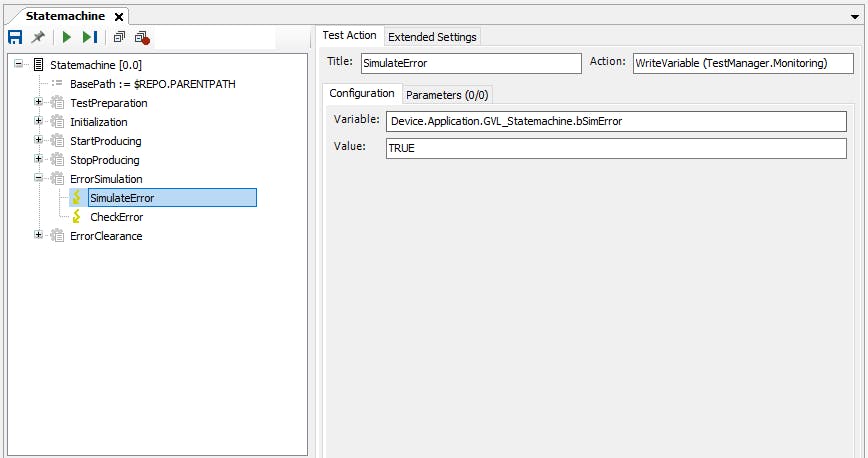

   Action: WriteVariable - simulate error occurrence

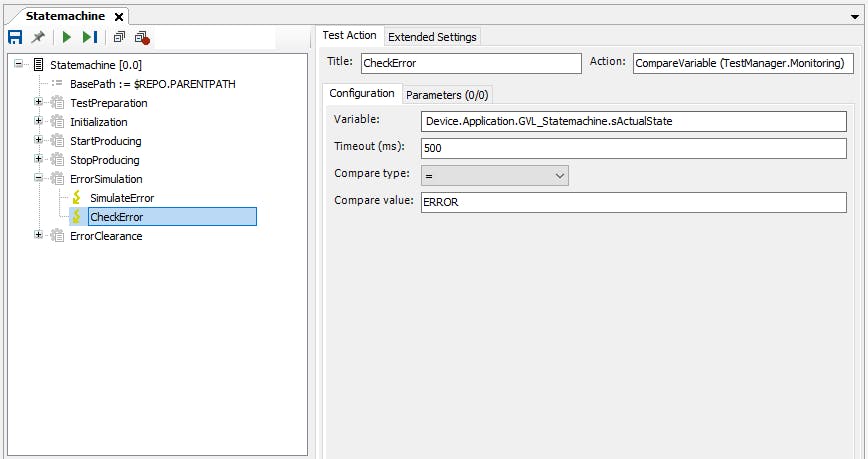

   Action: CompareVariable - check error state

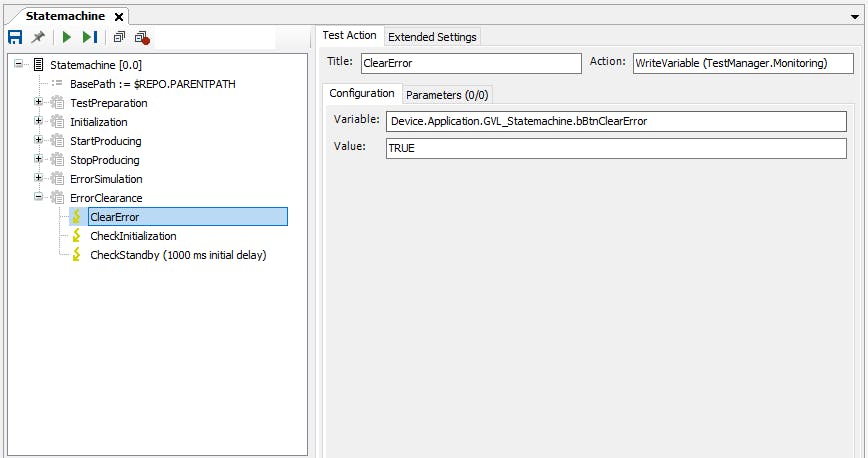

   Action: WriteVariable - clear the error

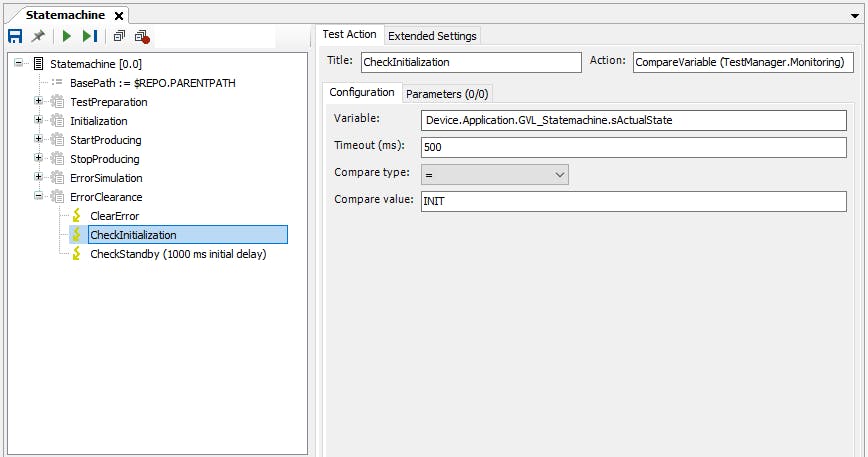

   Action: CompareVariable - check state change to initial

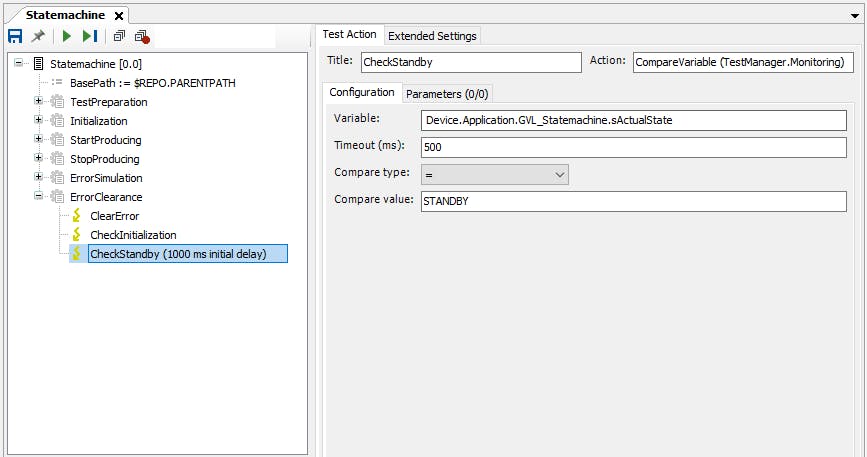

   Action: CompareVariable - state is again standby
6. Cleanup: Reset the application, logout and close the project

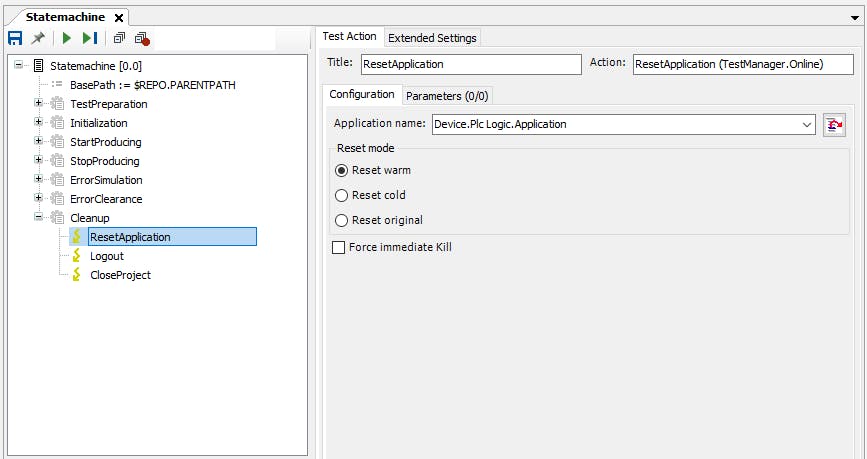

   Action: ResetApplication - reset application

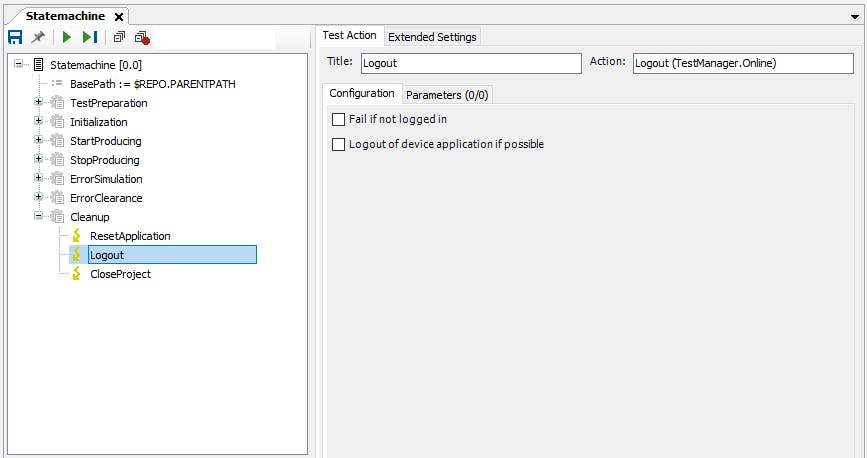

   Action: Logout - log out of CORE

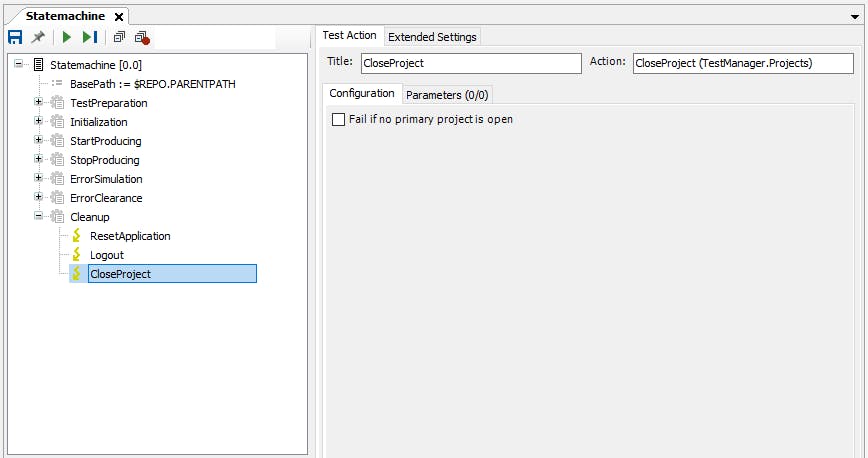

   Action: CloseProject - close the project

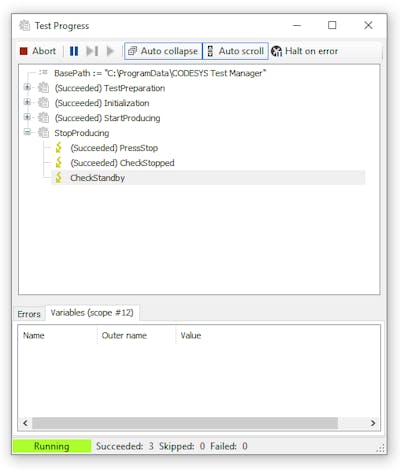

7. Test execution: Save the test script and press on the green play button to execute the full test script. In the popup window, you can enter your name if you want to, just make sure the option "Create verbose report" is marked to get the full report and press start. While the test is running you can follow each step in the popup window and see the test progress.

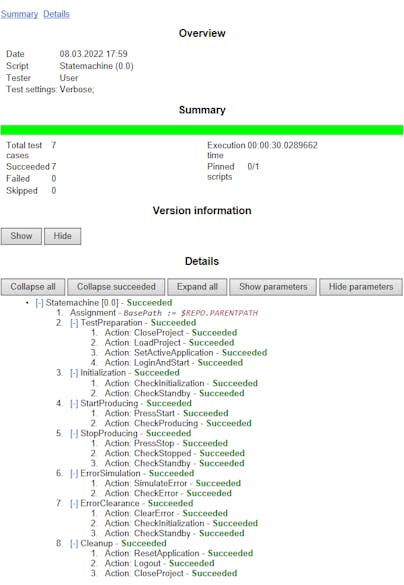

8. Test Report: Here you will see the results of the test. You could save it as an HTML file as well.
