SAFEX-C12 & ctrlX CORE - Invalid input configuration

Hello,

I am having the following diagnostic when adding a SAFEX-C12 in an EtherCAT network (ctrlX CORE as a master): 0x001E: Invalid Input Configuration.

The xml imported is the one for FPGA211.

ctrlX Safety Engineering version:

Do you have any idea of the reason?

Best regards,

David

Best reply by hgd

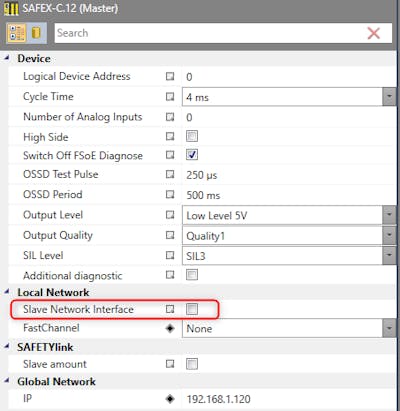

Activation of "Slave network interface" was the problem. Once disabled, the problem was solved.

This configuration activates the FSoE Slave functionality.
