How-to connect LoRa Sensor to ctrlX OS via Actility Gateway

You want to connect LoRa Sensors to a ctrlX OS?

Here is a small How-to!

Equipment:

• ctrlX COREplus X3 version 3.6 ff

• Some ctrlX IOs

• LoRa Gateway from Actility

• LoRa Sensors, Wilsen from Pepper+Fuchs

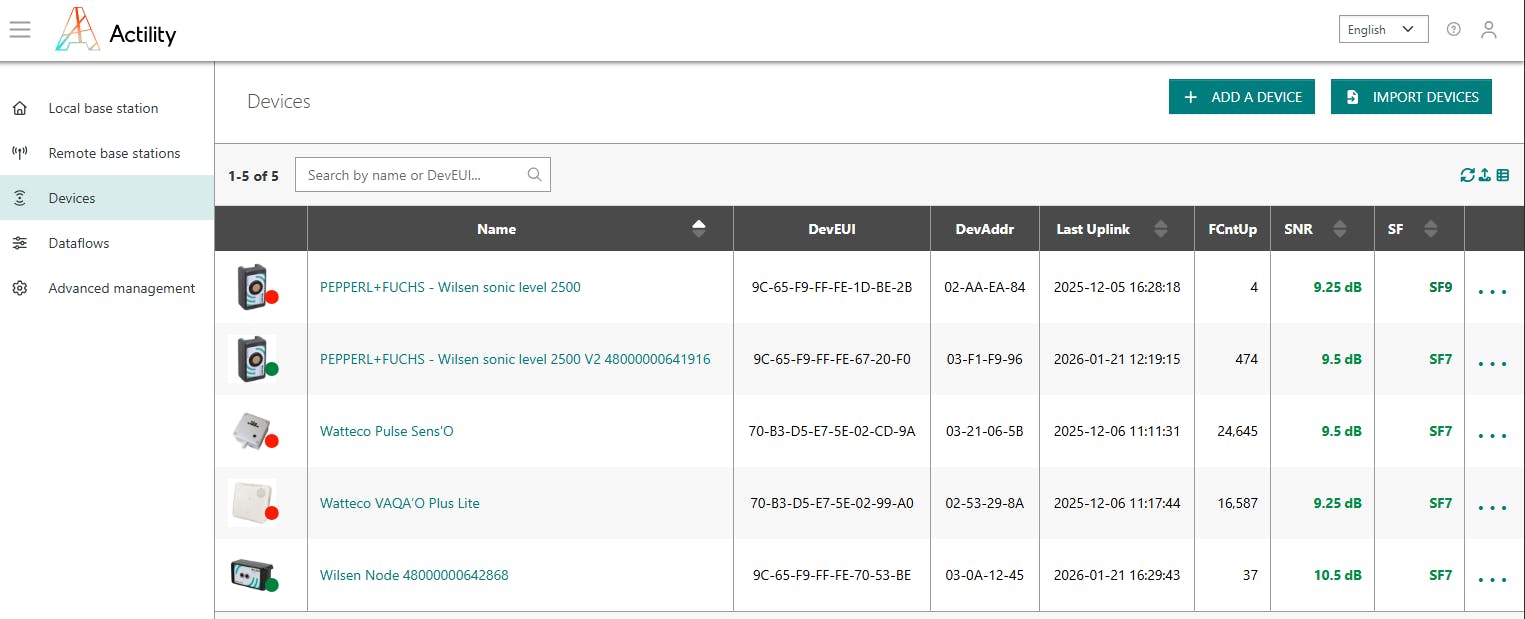

1. Configure your sensors in the gateway

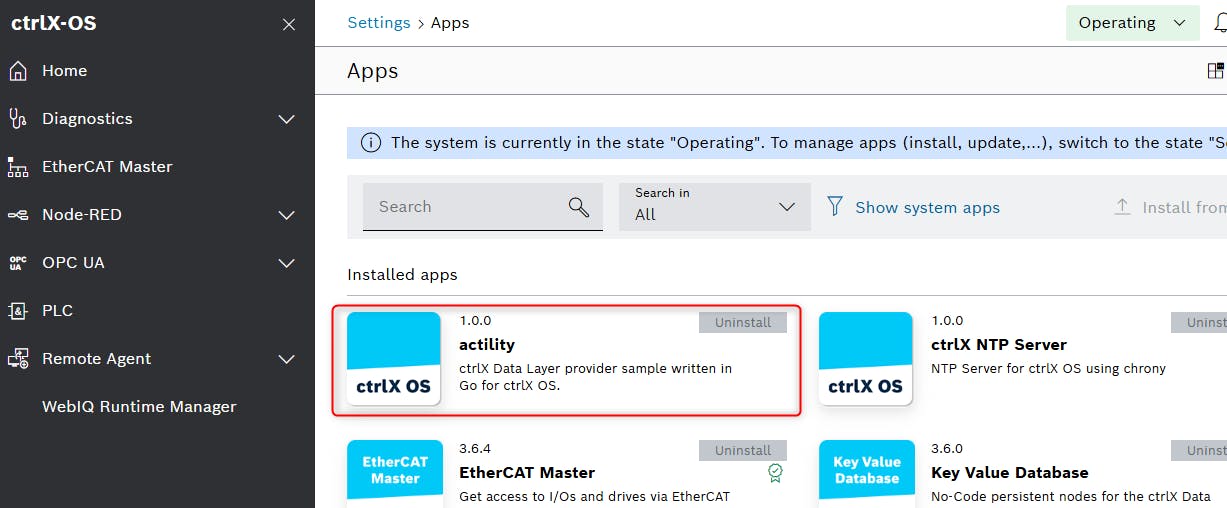

2. Install the actility app for ctrlX OS

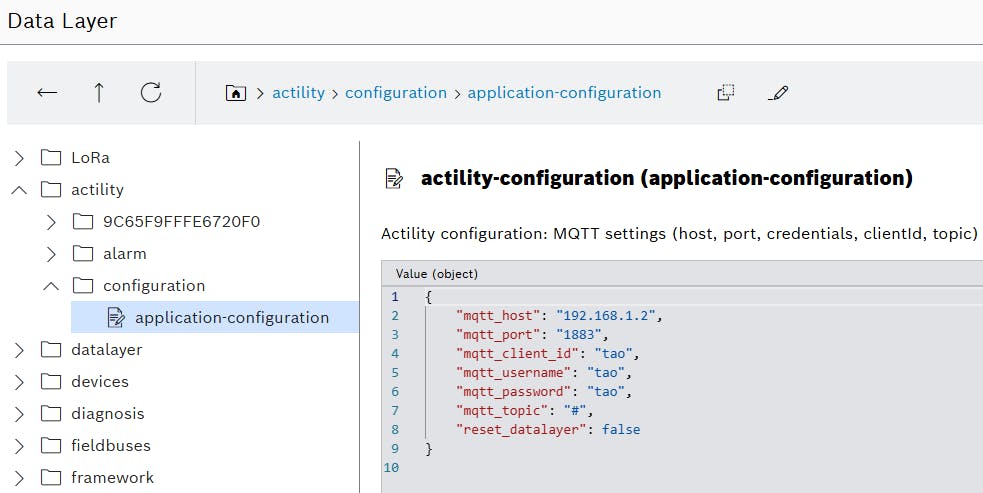

3. Configure the connection to the gateway in the ctrlX Datalayer



   ALT

   Actility App Configuration

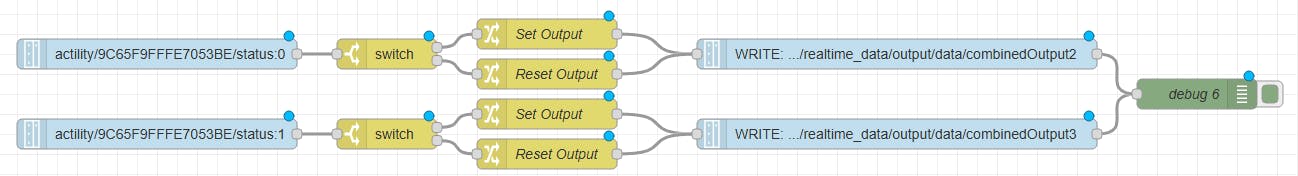

4. Create your logic and write your outputs in NodeRED for ctrlX OS, flow attached



For more information, e.g. where to get the app, please send me a private message!📧 📨 📬 📪
