Fanuc Ethernet/IP communications

Has anyone communicated with a fanuc robot and Ctrl X over Ethernet/IP? I'm trying to set this up but running into an error saying "invalid connection size".

One thing I've seen is that the Codesys EIP settings only can group the data into 8 bit (byte) chunks while the Fanuc robot groups them into 16 bit chunks. I tried to specify the size in CtrlX to match the overall size, but this is still not working.

Has anyone done this before?

Thanks,

Dylan

Best reply by cc2go

Hello

Normally when you configure 2 Byte for one Word, like you explain, it should match and work. Is there more detail diagnosis in the Ethernet/IP Scanner or Adapter status page?

Is a device description EDS file available for the Fanuc robot?

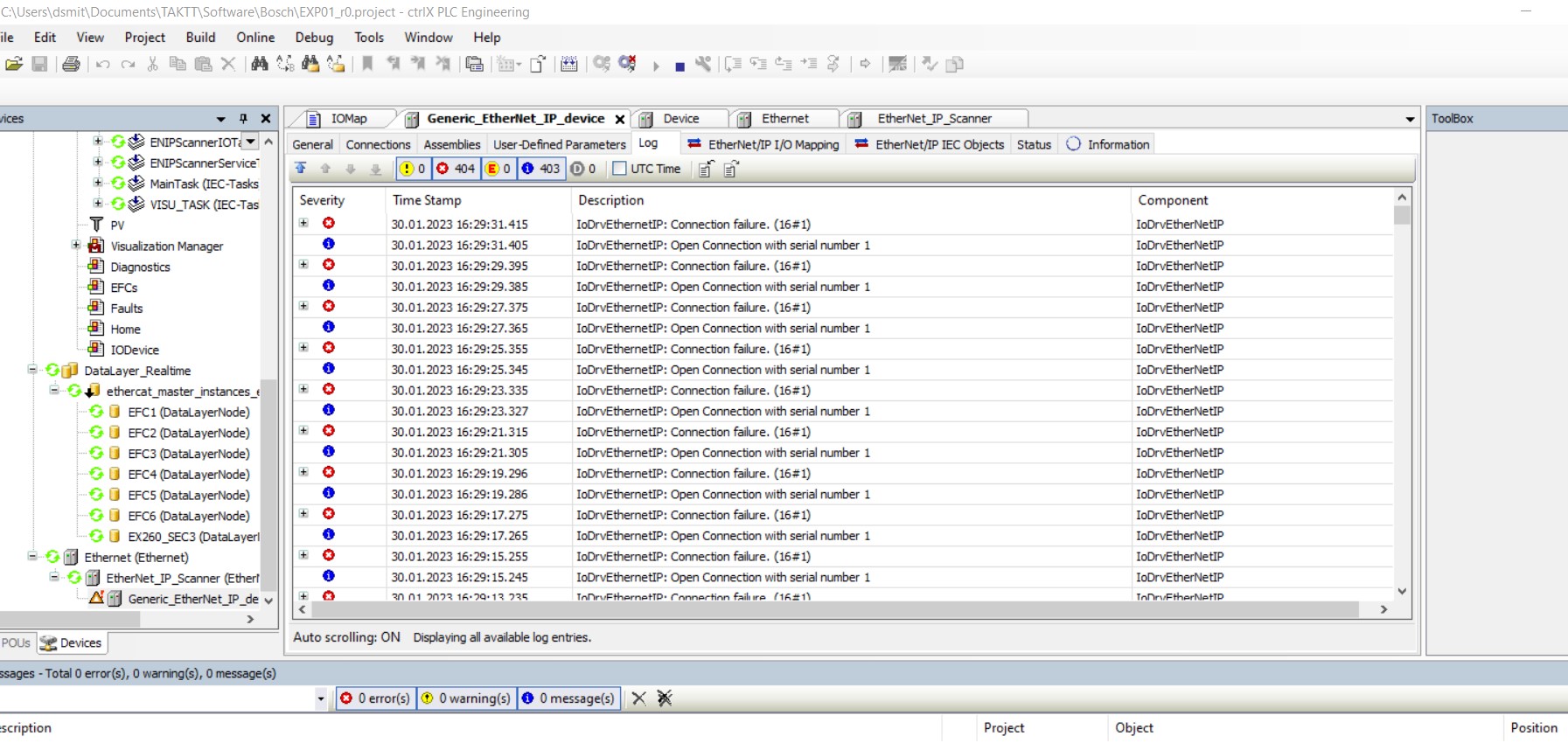

Can you share settings of the generic device in the ctrlX PLC Engineering project or a project archive.
The configuration or info about the Fanuc Ethernet/IP configuration will be helpful as well.
